Particularities
Power supply via MicroUSB connector
16 MHz internal oscillating crystal
SPI interface with up to 8 Mbit/s
I²C interface with up to 400 Kbit/s
ADC (Analog-to-Digital Converter) 10 bit
resolution with 5 channels
UART transmit routine
UART receive routines
Suitable for low power applications
The STM8S has a convenient SWIM(Single Wire Interface Module) programming interface

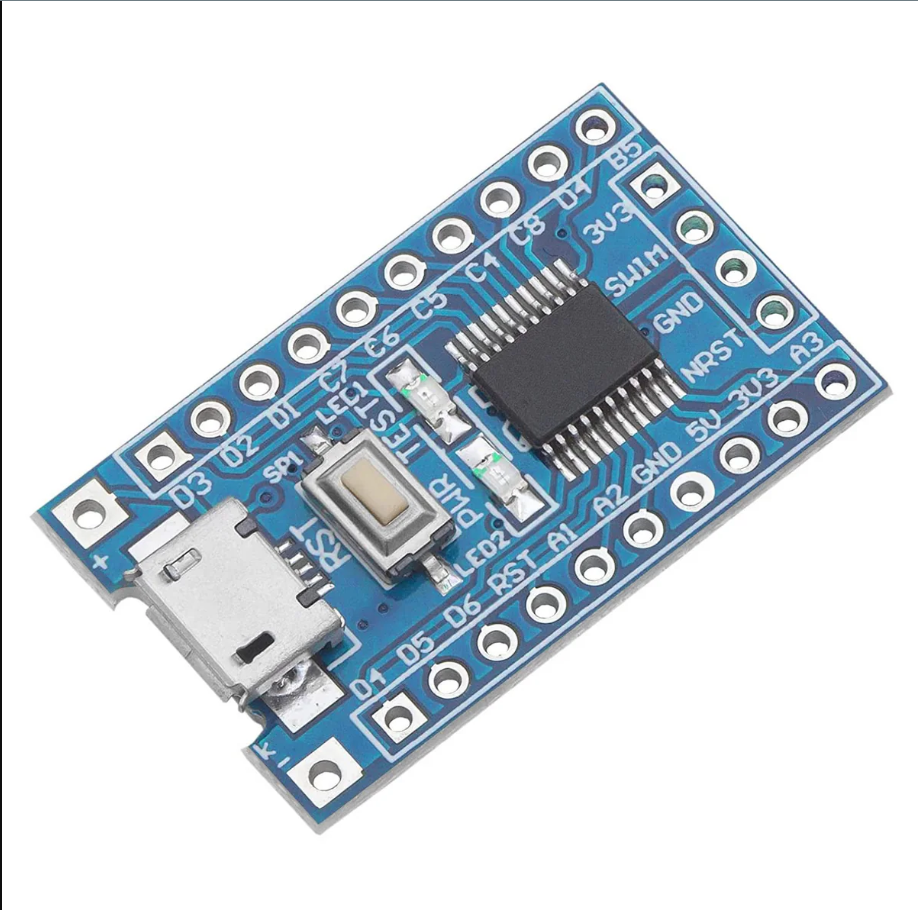

The I/O pins are labeled. The breakout board has a reset button, a power LED and a controllable on-board LED.
The STM8S Core Board has a USB port for easy power supply of the module. Solder pads for an external power supply(4.5V - 9V) are also available.
The STM82F103F3 (in TSSOP20 package) has a 16MHz internal clock, 8 KBytes Flash The STM82F103F3 (in TSSOP20 package) has a 16MHz internal clock, 8 KBytes EEPROM.
SKU: MSMDBMfPwaaA-100
