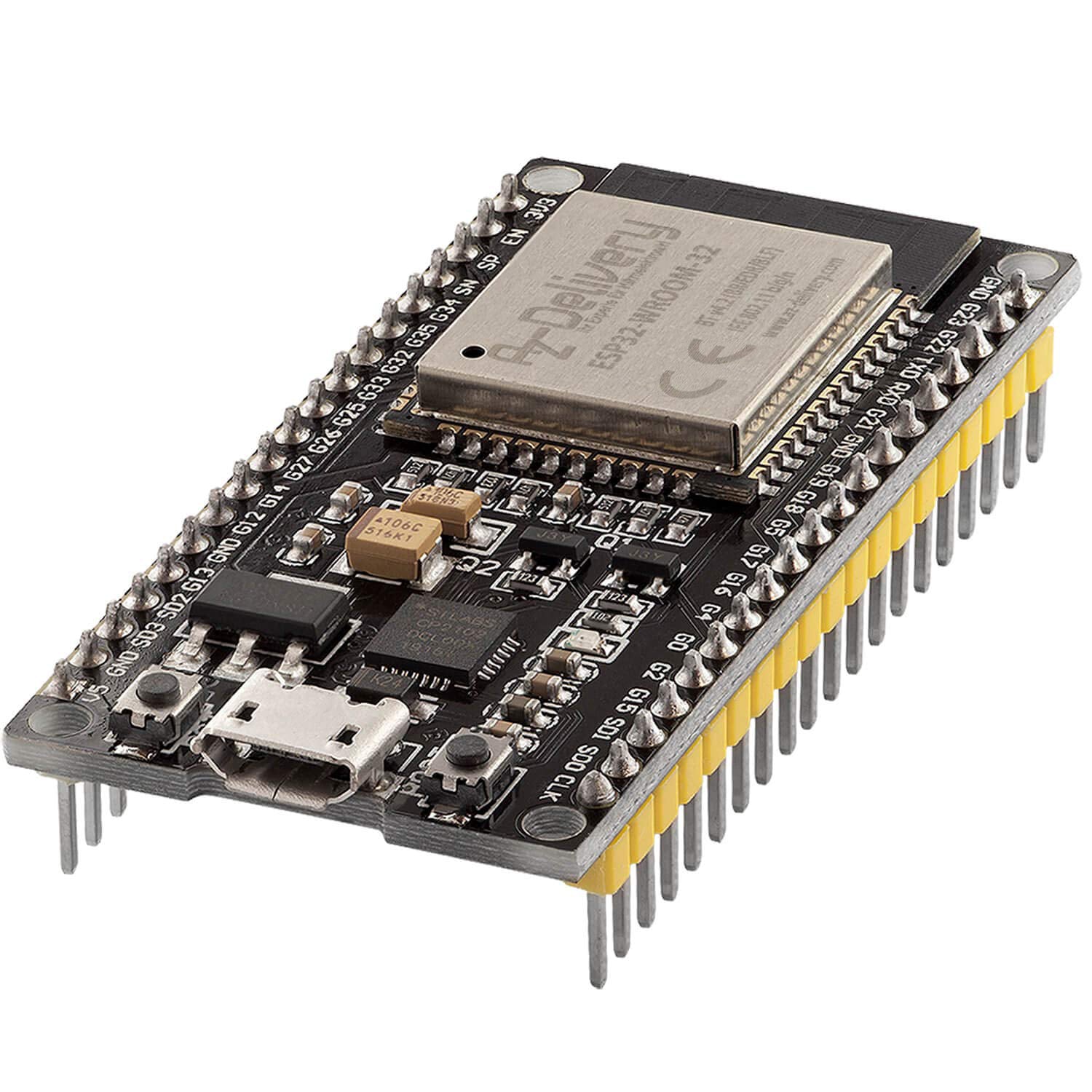

The AZ-Delivery Dev Kit C was designed By Espressif to provide an easy introduction to programming the new ESP32 dual-core processor. With a variety of new sensors and functions, this board represents the next step in IoT development.
Special features
As with the predecessor model ESP8266, the WLAN functionality is implemented directly in the SoC, but with additional Bluetooth function (incl. BLE).
The ESP32 processor used combines a CPU with 2 Tensilica LX6 cores, clocked at up to 240 MHz, and 512 kiloBytes of SRAM in a single microcontroller chip.
It also integrates a wireless unit for WLAN (according to 802.11bgn) and Bluetooth (Classic and LE).
Technical data
Power supply voltage (USB) 5V
Input/output voltage 3.3V
Required operating current min. 500mA
SoC ESP32-WROOM 32
Clock frequency range 80MHz / 240MHz
RAM 512kB
External flash memory 4MB
I/O pins 34
Interfaces SPI, I2C, I2S, CAN, UART
Wi-Fi protocols 802.11 b/g/n (802.11n up to 150 Mbps)
Wi-Fi frequency 2.4 GHz - 2.5 GHz
Bluetooth V4.2 - BLE and Classic Bluetooth
Wireless antenna PCB
Dimensions 56x28x13mm
SKU: NMWWDBDKCwcwA-338
