The AZ-Delivery automatic 3D printer leveling sensor precisely measures the orientation of the printing surface, which greatly improves the success of the prints. The sensor is compatible with many 3D printer control boards. This precision is more easily integrated into the structure thanks to the progressive-design solenoids and Hall sensors.
Special features
Manual leveling is no longer required.
Improvement in printer success rate.
Functions like a normal automatic bed level sensor.

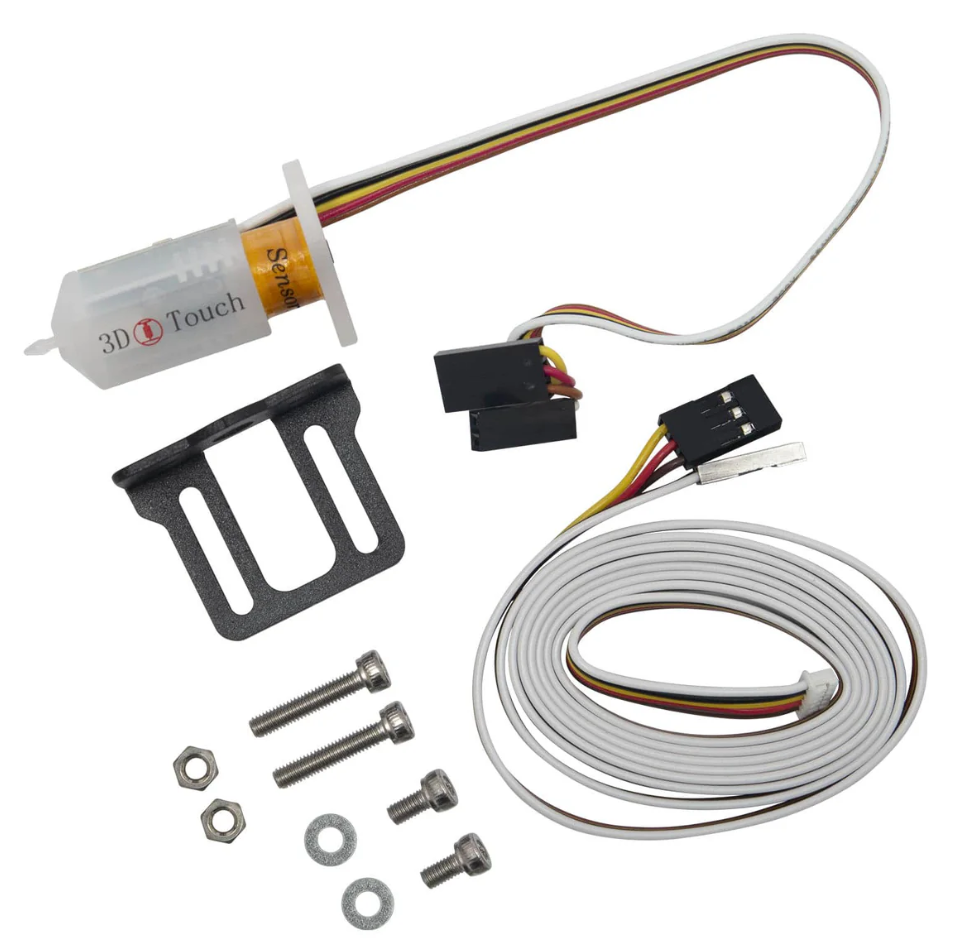

Details:
3D Touch Sensor
1 x Bracket
2 x screw short, screw long, nut M3, washer
1 x 1m connection cable
Technical specifications
Housing material
Polycarbonate (PC)
Tension
4.8 - 5.1 V
Electricity
15 - 300 mA.
Housing colour
Semi Transparent Weis
Cable length
approx. 1 m
Dimensions
13 x 9.6 x 4 cm; 40g
Easy installation
Using the official website, download the firmware and transfer the copies directly to the TF/SD card and the card slot of the printer sensor. Instructions are included with the product.
Highest precision
The repeatability of the standard deviation is 0.005mm, which enables a high quality masterpiece with higher precision stability.
