Powerful CPU and High Memory
Connect More without Dropping Speed
.Behind the Wi-Fi 6 technology structure are the advanced Qualcomm chipset and high memory. Enjoy fast connections with minimal latency even under a heavy load of transmission. Every click for website links and online playback on your laptop and phone just responds quicker.
.Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
. Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
.Ultra-Low Latency—Enables more responsive gaming and video chatting.
.Expanded Wi-Fi Coverage—Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.
.TP-Link HomeShield - Enhanced security defends against the latest cyber threats.
.Improved Battery Life—Target Wake Time helps your devices to communicate more while consuming less power.
.Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
SPECS
WIRELESS
.Standards and Protocols Wi-Fi 6
.IEEE 802.11ax/ac/n/a 5 GHz
.IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX3000
.5 GHz: 2402 Mbps (802.11ax, HE160)
.2.4 GHz: 574 Mbps (802.11ax)
WiFi Range
3 Bedroom Houses
.4× Fixed High-Performance Antennas
-Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
.Concentrates wireless signal strength towards clients to expand Wi-Fi range
High-Power FEM
.Improves transmission power to strengthen signal coverage
Wi-Fi Capacity High
.Dual-Band
-Allocate devices to different bands for optimal performance
.OFDMA
-Simultaneously communicates with multiple Wi-Fi 6 clients
.Airtime Fairness
-Improves network efficiency by limiting excessive occupation
.DFS
-Access an extra band to reduce congestion
.4 Streams
-Connect your devices to more bandwidth
Working Modes
.Router Mode
.Access Point Mode
Network Security
.SPI Firewall
.Access Control
.IP & MAC Binding
.Application Layer Gateway
HomeShield Security
.Real-Time IoT Protection
.Malicious Site Blocker
.Intrusion Prevention System
.DDoS Attack Prevention
.Home Network Scanner
Guest Network
.1× 5 GHz Guest Network
.1× 2.4 GHz Guest Network
.VPN Server
.OpenVPN
.PPTP
.VPN Client
• Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
WiFi Encryption
.WPA
.WPA2
.WPA3
.WPA/WPA2-Enterprise (802.1x)
HARDWARE
.Dual-Core CPU

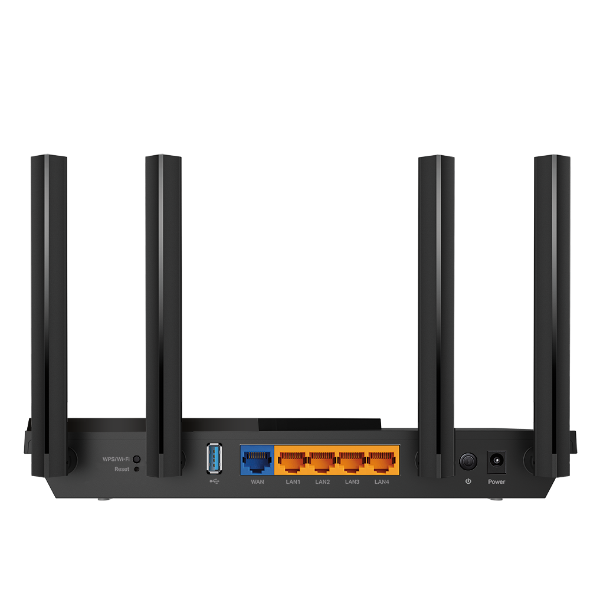

Ethernet Ports
.1× Gigabit WAN Port
.4× Gigabit LAN Ports
USB Support
.1× USB 3.0 Port
Supported Partition Formats:
.NTFS, exFAT, HFS+, FAT32
Supported Functions:
.Apple Time Machine
.FTP Server
.Media Server
.Samba Server
Buttons
.Wi-Fi/WPS Button
.Power On/Off Button
.Reset Button
Power
.12 V ⎓ 2 A
Protocols
.IPv4
.IPv6
OneMesh™ Supported
.Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
.Mesh networking creates smooth, fast, stable roaming. Archer AX55 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.
Parental Controls
.HomeShield Parental Controls
.Custom Profiles
.Professional Content Filter Library
.Family Time
.Bedtime
.Off Time
.Time Rewards
.Family Online Time Ranking
.Pause the Internet
.Weekly and Monthly Reports
WAN Types
.Dynamic IP
.Static IP
.PPPoE
.PPTP
.L2TP
Package Content

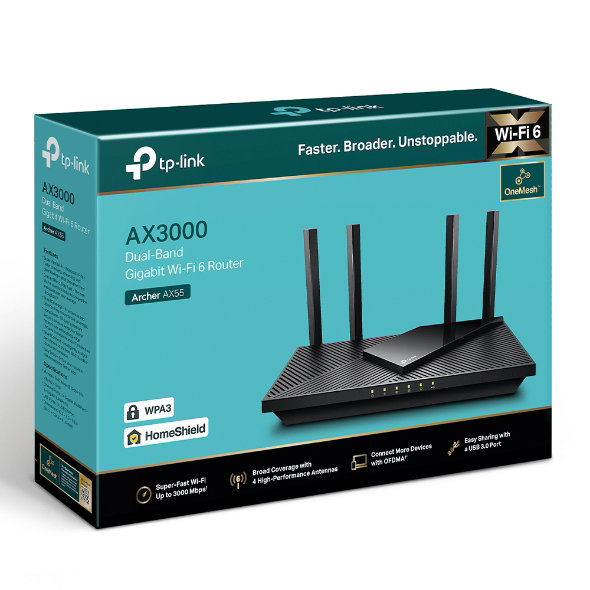

.Wi-Fi Router Archer AX55
.Power Adapter
.RJ45 Ethernet Cable
.Quick Installation Guide
