APC Smart-UPS 1000VA

APC Smart-UPS 1000VA

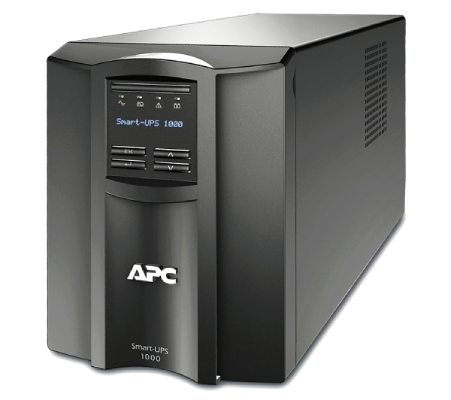

The APC Smart-UPS 1000VA is a line-interactive uninterruptible power supply (UPS) designed for critical electronics. It offers a 1000VA/670W capacity, with a pure sine wave output and automatic voltage regulation (AVR). The unit is typically configured for 120V input and output, with a transfer time of 6-10ms. It features multiple outlets, LED status indicators, and audible alarms for easy monitoring and management.
Key Specifications:
Capacity: 1000 VA / 670 Watts
Topology: Line interactive
Output Voltage: 120V (configurable)
Output Waveform: Sine wave
Input Voltage: 120V (adjustable range: 75-154V)
Input Frequency: 50/60 Hz +/- 3 Hz (auto-sensing)
Transfer Time: 6 ms typical, 10 ms maximum
Output Connections: Typically 8x NEMA 5-15R outlets
Communication: Serial and USB ports for monitoring and management
Audible Alarms: Yes
LED Indicators: Yes
Surge Energy Rating: 459 Joules
Physical Dimensions: Vary slightly depending on the specific model, but generally around 219mm (H) x 171mm (W) x 439mm (D)
Weight: Varies, but typically around 19-22 kg
Operating Temperature: 0 - 40 °C
Storage Temperature: -15 - 45 °C
Approvals: CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Battery: Sealed Lead-Acid, maintenance-free
Typical Battery Life: 3-5 years, depending on usage and environmental conditions
ZK 11,999.00
