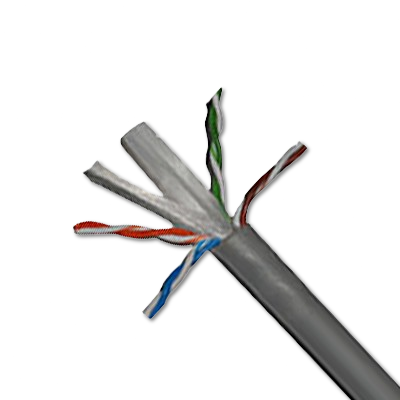

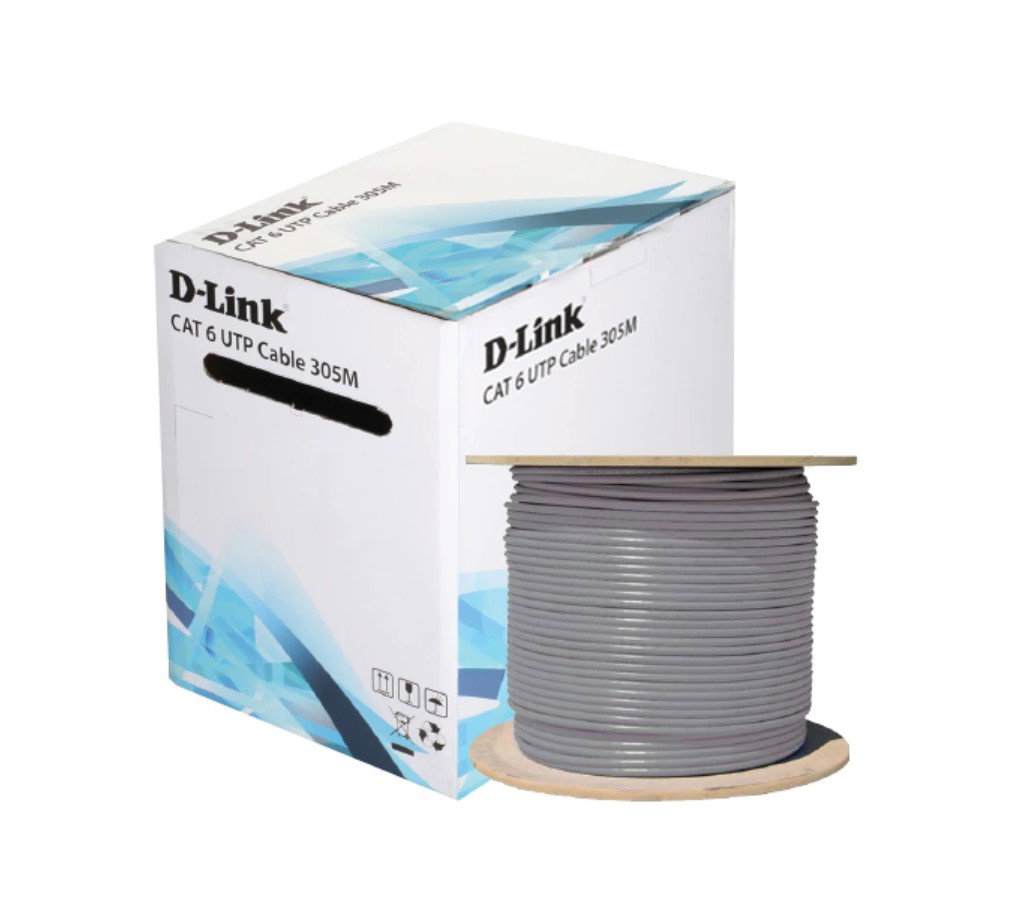

A D-Link Cat6 UTP cable is a type of unshielded twisted pair (UTP) cable designed for networking, typically with a 305-meter length. It uses 23 AWG solid copper conductors and is rated for speeds up to 550 MHz. The cable is constructed with a PVC jacket and is typically used in in-wall installations.
Here's a more detailed breakdown of the specifications:
Category: Cat6 (supporting speeds up to 10 Gbps at shorter distances and 1 Gbps at longer distances, up to 55 meters).
Cable Type: UTP (Unshielded Twisted Pair).
Conductor Material: 100% Bare Copper.
Conductor Gauge: 23 AWG.
Cable Length: 305 meters (1000 feet).
Conductor Insulation: HD-PE.
Cable Jacket Material: PVC.
Cable Structure: Solid.
Cable Diameter: 6.0 ± 0.2 mm.
Performance: Up to 550 MHz.
Standards Compliance: UL Listed, TIA/EIA 568-C.2 Verified, RoHS Compliant.
In-Wall Rating: CM.
Pair Color Codes: White/Blue & Blue, White/Orange & Orange, White/Green & Green, White/Brown & Brown
