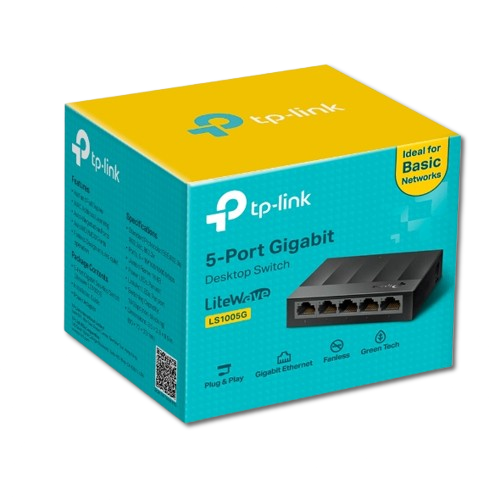

The TP-Link LS1005G is a 5-port Gigabit Ethernet desktop switch designed for easy network expansion. It features five 10/100/1000 Mbps RJ45 ports with auto-negotiation and Auto-MDI/MDIX, meaning it automatically detects the speed of connected devices and adjusts accordingly, and also handles crossover cables. It's a fanless, plug-and-play device, requiring no configuration, and supports IEEE 802.3X flow control for reliable data transfer. It also incorporates Green Technology for energy efficiency.
Detailed Specifications:
Interface: 5 x 10/100/1000Mbps RJ45 ports, supporting Auto-Negotiation and Auto-MDI/MDIX.
Standards: IEEE 802.3i/802.3u/802.3ab/802.3x.
Switching Capacity: 10 Gbps.
Packet Forwarding Rate: 7.4 Mpps.
MAC Address Table: 2K.
Packet Buffer Memory: 1.5 Mb.
Jumbo Frame: 16 KB.
Power Consumption: Max 3.7W.
Heat Dissipation: 12.617 BTU/h.
Dimensions: 90 × 72 × 23 mm (3.5 × 2.8 × 0.9 in).
Operating Temperature: 0°C40°C (32°F104°F).
Storage Temperature: -40℃60℃ (-40℉140℉).
Operating Humidity: 10% ~ 90% non-condensing.
Storage Humidity: 5%~90% non-condensing.
Power Supply: External power adapter (Output: 5VDC/0.6A).
Case Type: Desktop, plastic.
Fan: Fanless.
Green Technology: Yes, power consumption adjusts automatically.
Flow Control: IEEE 802.3X.
Transfer Method: Store and forward.
Certifications: CE, FCC, RoHS.
Plug and Play: Yes, no configuration needed.
Wall Mounting: Supports wall mounting.
