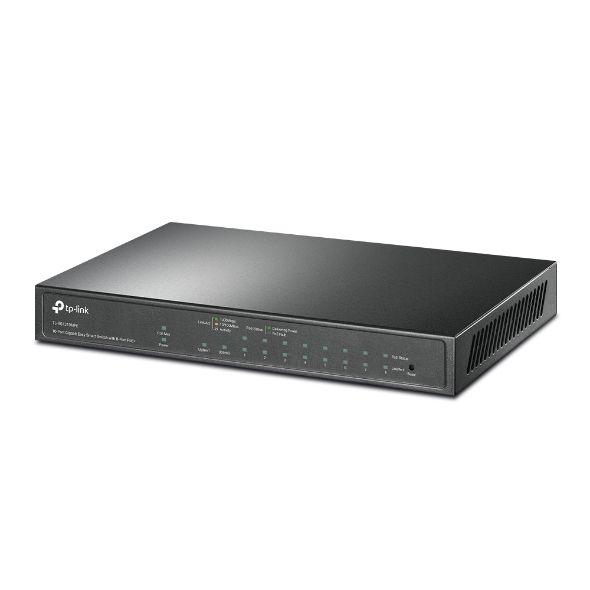

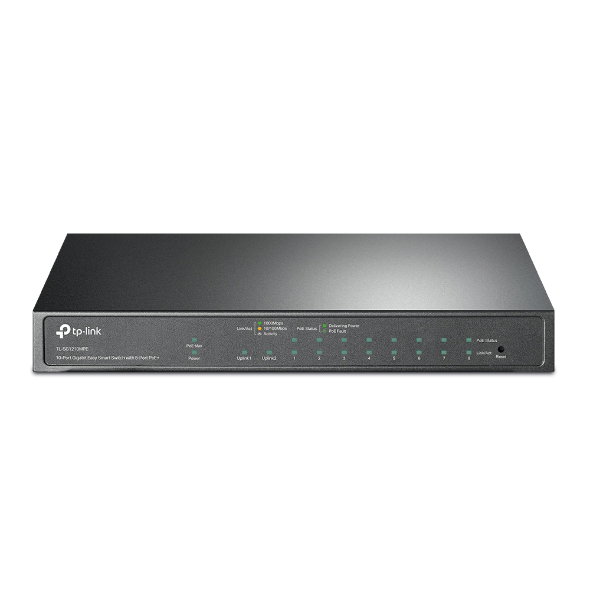

TL-SG1210MPE New
-10-Port Gigabit Easy Smart Switch
with 8-Port PoE+

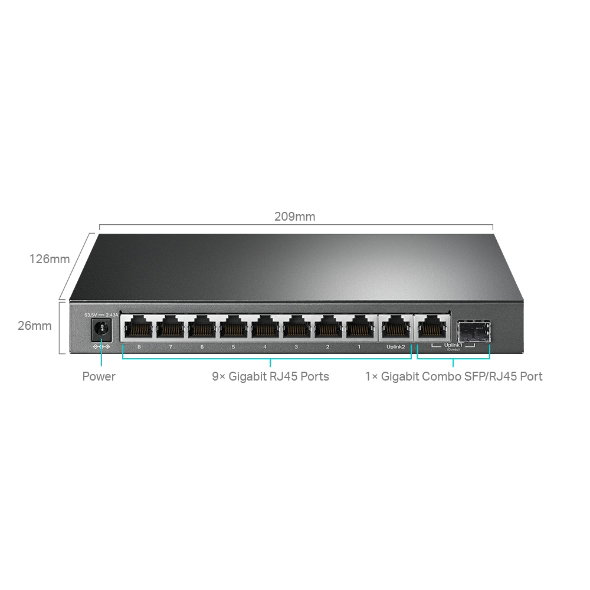

-9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port
-Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
Supports PoE power up to 123 W for all PoE ports.
-Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery.
-Simple network set-up on top of plug-and-play connectivity
-Web-based user interface and Easy Smart Configuration Utility simplify configuration
-Fanless design lowers energy consumption and eliminates operating noise
HARDWARE FEATURES
Interface
-9× 10/100/1000 Mbps RJ45 Ports
1× 1000 Mbps Combo SFP/RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
Network Media
-10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
-100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
-1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Power Supply
-External Power Adapter (Output: 53.5 VDC/2.43 A)
PoE Ports (RJ45) Standard: 802.3 af/at compliant
-PoE Ports: Port 1- Port 8
-PoE Power Budget: 123 W
Max. Power Consumption
-7.66 W (220V / 50Hz with no PD connected)
-141.54 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation
-26.12 BTU/h (220V / 50Hz with no PD connected)
-482.65 BTU/h (220V / 50Hz with 123 W PD connected)
PERFORMANCE
-Switching Capacity 20 Gbps
-Packet Forwarding Rate 14.88 Mpps
SOFTWARE FEATURES
-VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
-PoE Extend Mode
-PoE Auto Recovery

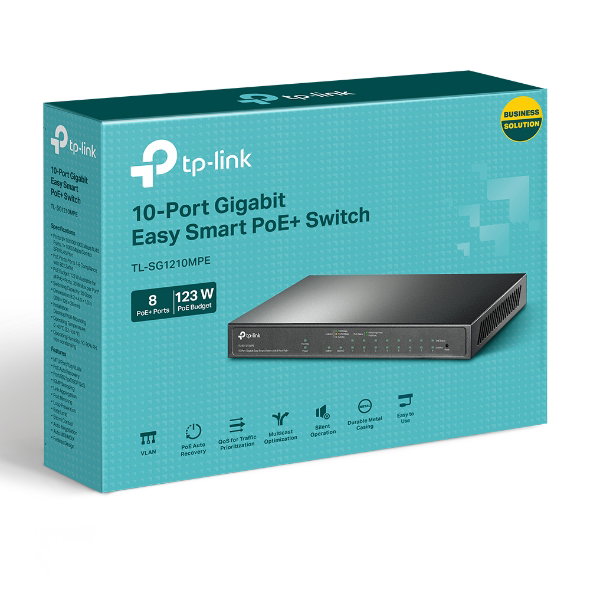

Package Content
-TL-SG1210MPE
-Power Adapter
-Installation Guide
-Rubber Feet
