Dedicated 4-Port PoE+ Switch (67 W Budget) for Numerous Applications

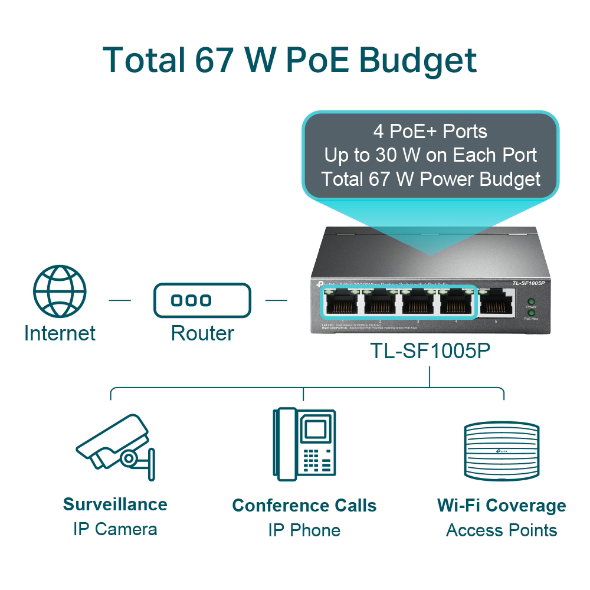

Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 67 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. *
-5x 10/100Mbps Rj45 ports
-4× PoE+ ports transfer data and power on individual cables
-Works with IEEE 802.3af/at compliant PDs
-Supports PoE Power up to 30 W for each PoE port
-Supports PoE Power up to 67 W for all PoE ports*
-Up to 250m data and power transmitting range under Extend Mode
-Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application

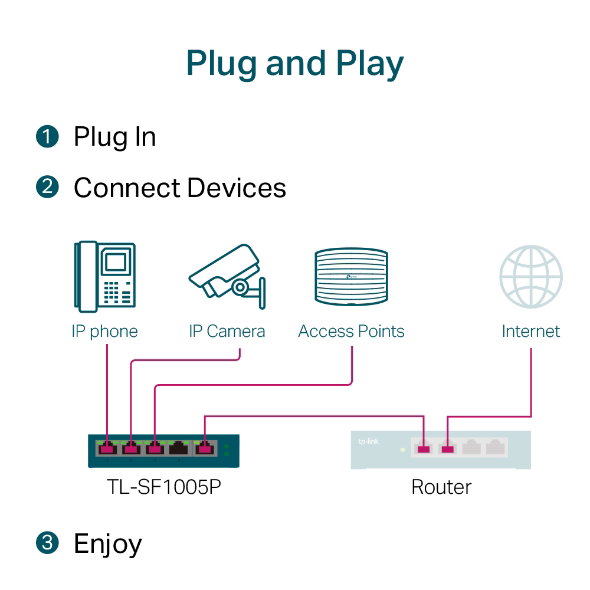

-Plug and play with no configuration required
specifications
HARDWARE FEATURES

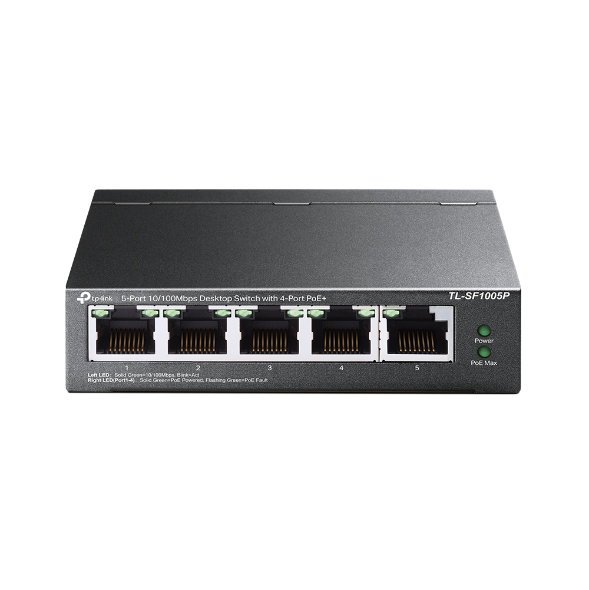

-Interface 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports)
AUTO Negotiation/AUTO MDI/MDIX
Network Media -10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
-100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity-Fanless
Physical Security Lock-Yes

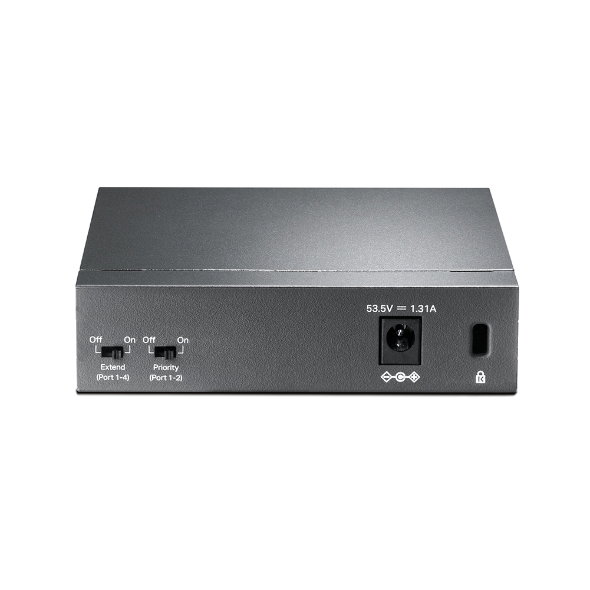

External Power Supply-External Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate -Mpps
PoE Ports (RJ45) -Standard: 802.3 af/at compliant
PoE Ports- Ports 1–4
Power Supply -67 W
Mac Address Table-2K
Switching Capacity-1 Gbps
Max. Power Consumption-1.9 W (no PD connected)
74 W (with 67 W PD connected)
