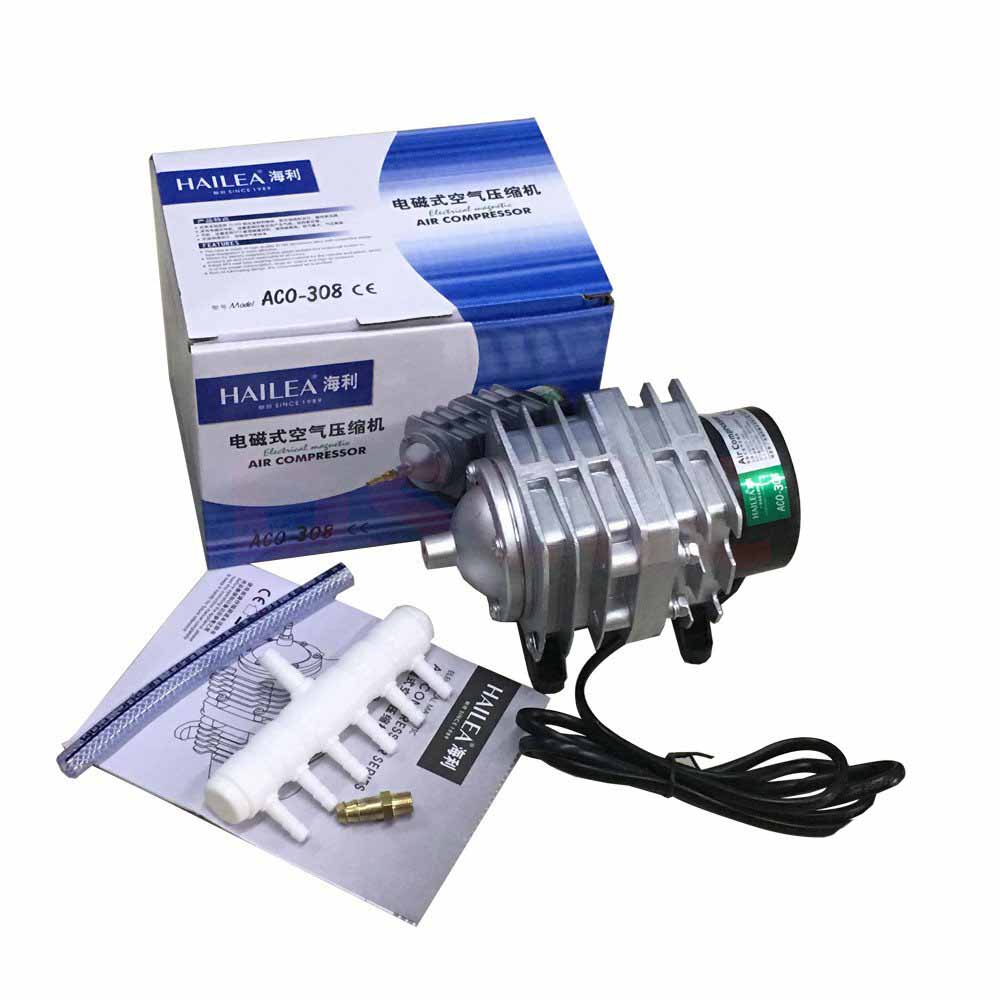

The Hailea Air Compressor has a piston mechanism rather than relying on a rubber diaphragm, this is a robust, reliable and efficient design, representing excellent performance for the money.
The Hailea Air Compressor is suitable for oxygenating aquariums and ponds and hydroponics systems, they are also used for compost tea brewers, waste water treatment and other applications such as inflation and dusting.
The AC-Series is designed for continuous or intermittent use indoors (or in a suitable enclosure outdoors).
There is even an inlet connection available on the rear of the pump to draw clean air through a filter for example.
Note that they are designed for performance rather than low sound levels – they would be too loud for use in a living room for example.
Every Hailea AC-Series air pump includes a manifold to allow several applications to run from one pump on standard 4mm airline.
Ideal for:
Aquariums (fresh and salt)
Ponds
Hydroponic nutrients and bubbler systems
Aquaponics
Compost tea brewing
Water treatment
Decorative water features
Inflation
Dusting
ACO-208
Includes:
8mm thread-6mm barb connector
6-outlet 6mm barb – 4mm barb plastic manifold
6mm connecting pipe.
Optional includes:
4-outlet metal manifold with valves (8mm thread – 4x4mm barb) – Select the correct option from the listing.
Connection :
8mm thread, 6mm ID pipe, 4mm ID pipe, 13mm ID pipe.
ACO-308
Includes:
8mm thread-6mm barb connector
6-outlet 6mm barb – 4mm barb plastic manifold
6mm connecting pipe.
Connection :
8mm thread, 6mm ID pipe, 4mm ID pipe, 13mm ID pipe.
ACO-318
Includes:
8mm thread-6mm barb connector
6-outlet 6mm barb – 4mm barb plastic manifold
6mm connecting pipe.
Connection :
8mm thread, 6mm ID pipe, 4mm ID pipe, 13mm ID pipe.
ACO-328
Includes:
8mm thread-6mm barb connector
6-outlet 6mm barb – 4mm barb plastic manifold
6mm connecting pipe
Connection :
8mm thread, 6mm ID pipe, 4mm ID pipe, 13mm ID pipe.
ACO-388D
Includes:
10mm thread-8mm barb connector
8-outlet 8mm barb – 4mm barb plastic manifold
8mm connecting pipe.
Connection :
10mm thread, 8mm ID pipe, 4mm ID pipe, 16mm ID pipe.
ACO-208 ACO-308 ACO-318 ACO-328 ACO-388D
Watts 18W 20W 32W 50W 70W
Flow Rate 35L/min 45L/min 60L/min 70L/min 80L/min
Noise <55dB <60dB <60dB <60dB <60dB
Max Pressure(bar) 0.15 0.18 0.2 0.3 0.3
Cable 1.3m 1.3m 1.3m 1.3m 1.3m
Size 142 x 80 x 78mm 195 x 90 x 95mm 182 x 95 x 116mm 199 x 108 x 133mm 232 x 120 x 148mm
Weight 0.9kg 1.2kg 1.65kg 2.8kg 3.3kg
