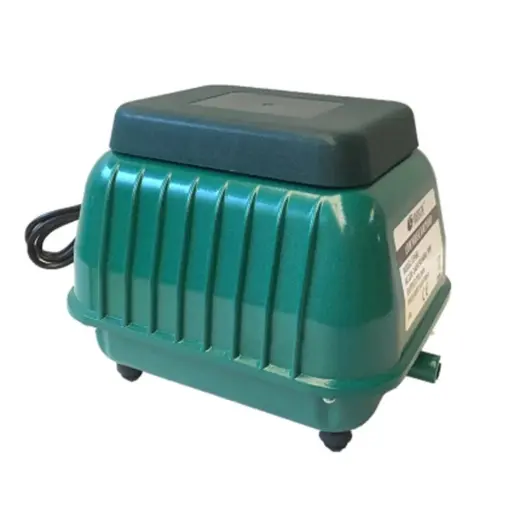

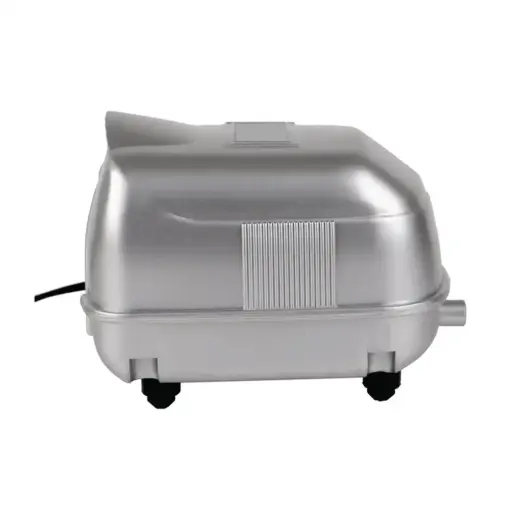

Resun Air Pump
Resun Air Pumps are very quiet and offer an affordable solution to create lots of air.
Features:
Very quiet – uses electromagnetic linear diaphragm technology
Automatic thermal cut-out overload protection
Plastic body
Cable length: 1.5m
Rated IPX4 (meaning – Should be placed in a low dust environment but will tolerate rain and light sprinkling)
Must be set-up above the water level or fitted with check valve (eg Valterra)
LP-20
The Resun Air Pump LP20 quietly delivers a maximum air output of 1320 L/hr (22 litre per minute), which is suitable for the smaller fish and koi ponds. It should be housed in a low dust environment, but can withstand rain and water sprinkling.
Installation hint: To increase the life of the rubber diaphragms, the unit must have back pressure.
Also used for: Aquariums, aquaculture pond aeration, commercial and industrial water aeration, Bubble baths etc
FEATURES
Voltage/Wattage: 240V / 17W
Max pressure: 0.028MPa / 280 mbar / 2.8 m H2O
Max air output: 1320L/hr (22 litre per minute)
Air pump outlet diameter: 16mm
Maximum water depth for placed air stones: 2.2m
Supplied with a plastic 6 outlet manifold to suit 4mm silicon air line
Air Pump dimensions: 205mm (L) x 145mm (W) x 165mm (H)
Weight: Air Pump: 2.25kg. Cartoned pump: 2.65kg
LP20, 17W, 1320 litre per hour, 280 mbar
LP-40
Waterfall Resun Air Pump LP-40
The Resun Air Pump LP40 quietly delivers a maximum air output of 3000 L/hr (50 litre per minute), which is suitable for the vast majority of fish and koi ponds. It should be housed in a low dust environment but can withstand rain and water sprinkling.
Installation hint: To increase the life of the rubber diaphragms, the unit must have back pressure.
Also used for: Deepwater septic tank aeration, Natural swimming pond or pool aeration, Aquaculture pond aeration, Commercial and industrial water aeration, Bubble baths
FEATURES
Voltage/Wattage: 240V / 35W
Max pressure: 0.03MPa / 0.3 bar / 300 mbar/ 3 m H2O
Max air output: 3000L/hr (50 litre/minute)
Air pump outlet diameter: 18mm
Maximum water depth for placed air stones: 2.8m
Supplied with a plastic 12 outlet manifold to suit a 4mm silicon air line
Air Pump dimensions: 245mm (L) x 175mm (W) x 185mm (H)
Weight: Air Pump: 4.25kg. Cartoned pump: 4.85kg
LP40, 35W, 3000 litres per hour, 300 mbar
LP-60
The Resun Air Pump LP60 quietly delivers a maximum air output of 4200 litre/hr (70 litres per minute), which is suitable for the vast majority of fish and koi ponds. It must be housed under cover, out of the weather.
Installation hint: To increase the life of the rubber diaphragms, the unit must have back pressure.
Also used for: Deepwater septic tank aeration, Natural swimming pond or pool aeration, Aquaculture pond aeration, Commercial and industrial water aeration, Bubble baths
Ideal for driving 3-4 EkoSlim Airlift pumps and moving bed filter of a 10-20,000 litre pond
Features:
– Cast aluminium body
– Voltage/Wattage: 240V / 60W
– Max pressure: 0.037MPa / 0.37 bar / 370 mbar / 3.7 m H2O
– Max air output: 4200L/hr (70 litre/minute)
– Air pump outlet diameter: 20mm
– Maximum water depth for placed air stones: 3.5m
– Supplied with a plastic 14 outlet manifold to suit a 4mm silicon air line
– Air Pump dimensions: 245mm (L) x 205mm (W) x 210mm (H)
– Weight: Air Pump, 5.45kg. Cartoned pump: 6.3kg
– 60 LPM. Max pressure: 0.037MPa / 0.37 bar / 370 mbar / 3.7 m H2O
LP-100
The LP100 Air Pump quietly delivers a maximum high volume air output of 8400L/hr (140 litres per minute), which is suitable for large fish and koi ponds as well as hydroponic systems. It should be housed in a low dust environment, but can withstand rain and water sprinkling.
Also used for: Aquaponic Aerobic Mineralizer, Hydroponic Systems, Waste water treatment aeration, Deep water septic tank aeration, Natural swimming pond aeration, Aquaculture pond aeration, Commercial and industrial water aeration, Koi Ponds
FEATURES
Extremly quiet – uses electromagmetic linear diaphragm technology
Cast aluminium body
Voltage/Wattage: 240V / 100W
Automatic thermal cut-out overload protection
Cable length: 1.5m
Max pressure: 0.042 mPa / 0.42 bar / 420 mbar / 6.1 psi
Max air output: 8400L/hr (140 Litres/minute)
Air pump outlet diameter: 20mm
Must be set-up above the water level
Important: Rated IPX4 (meaning – Should be placed in a low dust environment but will tolerate rain and light sprinkling)
Maximum water depth for placed airstones or air diffuser: 4.0m
Supplied with a plastic 33 outlet x 46mm barbed manifold to suit 4mm – 8mm silicon air line
Air Pump dimensions: 270mm(L)x200mm(W)x230mm(H)
Weight: Air Pump, 6.6kg. Cartoned pump: 7.31kg
LP-200
The LP200 Air Pump quietly delivers a maximum high volume air output of 15 000L/hr (250 litres per minute), which is suitable for large fish and koi ponds as well as hydroponic systems. It should be housed in a low dust environment, but can withstand rain and water sprinkling.
Also used for: Aquaponic Aerobic Mineralizer, Hydroponic Systems, Waste water treatment aeration, Deep water septic tank aeration, Natural swimming pond aeration, Aquaculture pond aeration, Commercial and industrial water aeration, Koi Ponds
FEATURES
Extremely quiet – uses electromagmetic linear diaphragm technology
Cast aluminium body
Voltage/Wattage: 240V / 230W
Automatic thermal cut-out overload protection
Cable length: 1.5m
Max pressure: 0.042 mPa / 0.42 bar / 420 mbar / 6.1 psi
Max air output: 15000L/hr (250 Litres/minute)
Air pump outlet diameter: 20mm
Must be set-up above the water level
Important: Rated IPX4 (meaning – Should be placed in a low dust environment but will tolerate rain and light sprinkling)
Maximum water depth for placed airstones or air diffuser: 4.0m
Supplied with a plastic 33 outlet x 46mm barbed manifold to suit 4mm – 8mm silicon air line
Air Pump dimensions: 285mm(L)x200mm(W)x240mm(H)
Weight: Air Pump, 8kg. Cartoned pump: 8.5kg
