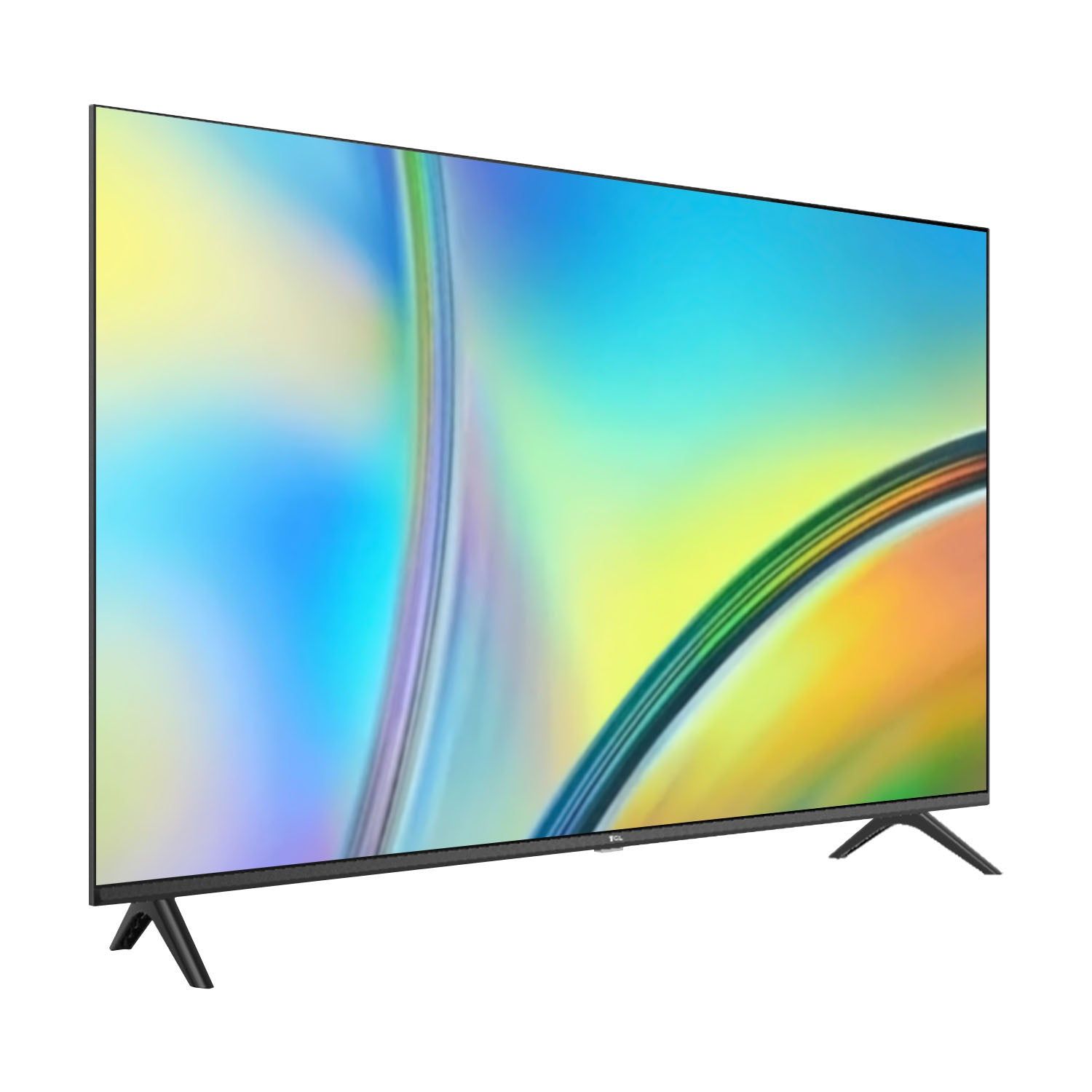

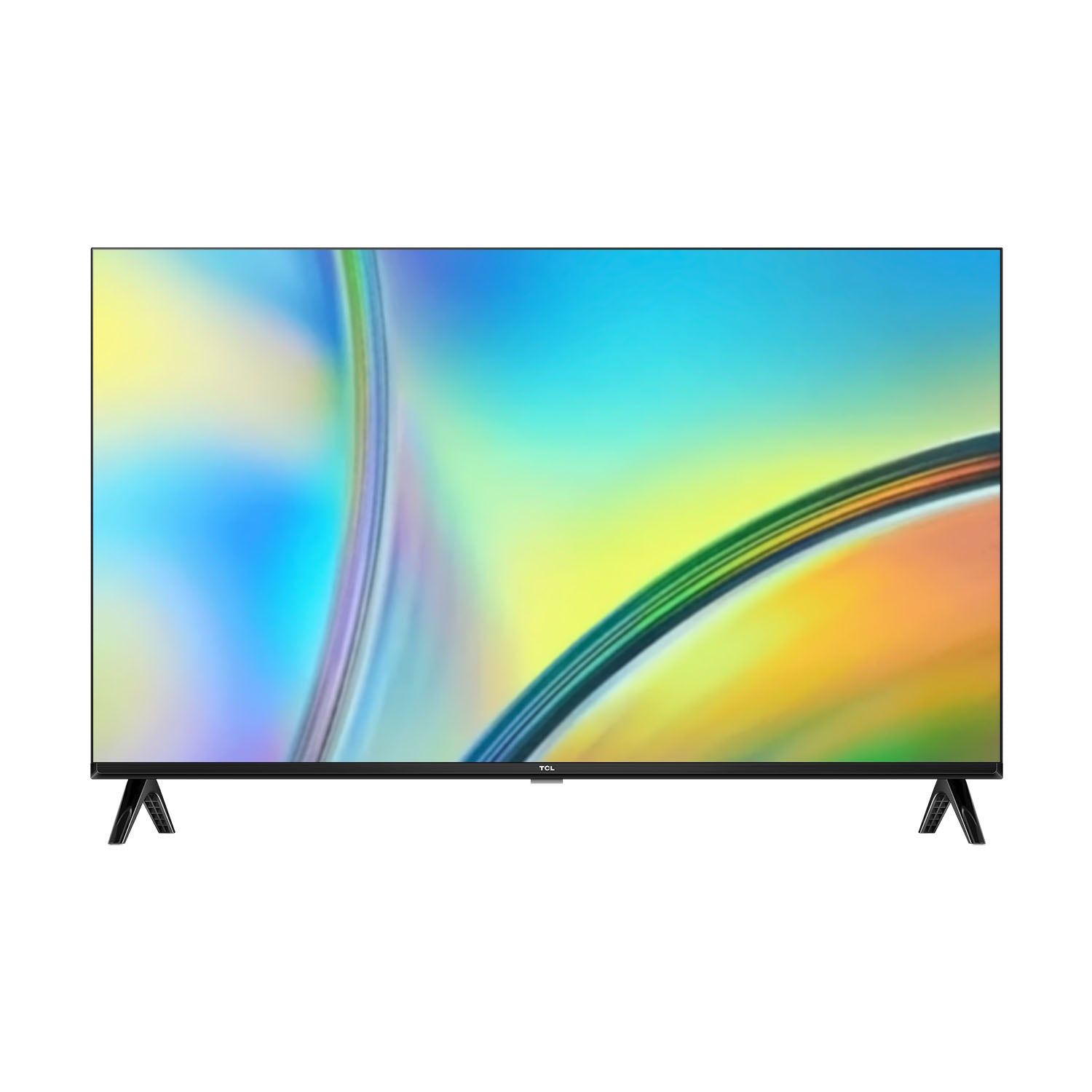

TCL (43S5400A) 43” FHD Android TV
Basic Information:
Brand: TCL
Model: 43S5400A
Size: 43-inch
CPU: CA55x4 @1.1GHz (DVFS 1.45GHz)
GPU: G31MP2 @550MHz
Operating System: Android TV
RAM: 1G Bytes DDR3-2133
Storage: 8G Bytes eMMC5.1
UI Style: Android TV UI + TCL TV UI
Launcher Homepages Show: Google Play, Netflix, Youtube, Featured Apps, Source, etc
Languages: English, Vietnamese, Thai, Chinese, Russian, Arabic, Traditional Chinese, Indonesian, France, Spanish (Latin America), Farsi, Mongol, Uzbek, Hebrew, Malay, Portuguese, Burmese, etc.
TV System:
ATV: ATV: PAL/NTSC/SECAM-DK/BG/I/M
DTV: DTV: DVB-C/T/T2
AV System: PAL, NTSC
HDMI & HDCP Version: HDMI1.4b, HDCP1.4 & HDCP2.2
HDR: 2K HDR10 Decoding
Power Supply: AC 100V-240V 50/60Hz (AG: AC 220V-240V 50/60Hz)
Power Consumption (TV On): 75W
Power Consumption (Standby): ≤0.5W
ECO Energy Efficiency: Yes
Certification:
CB, HDMI, Dolby Audio
CTS (Google Official Certification), Netflix
Internet Link:
2.4GHz Wi-Fi 802.11 b/g/n 2T2R
Ethernet Network (RJ45, 10/100M)
Bluetooth: Yes (Bluetooth 5.0)
LED Indicator: Standby indicator (1-LED, white, below the middle of the bezel)

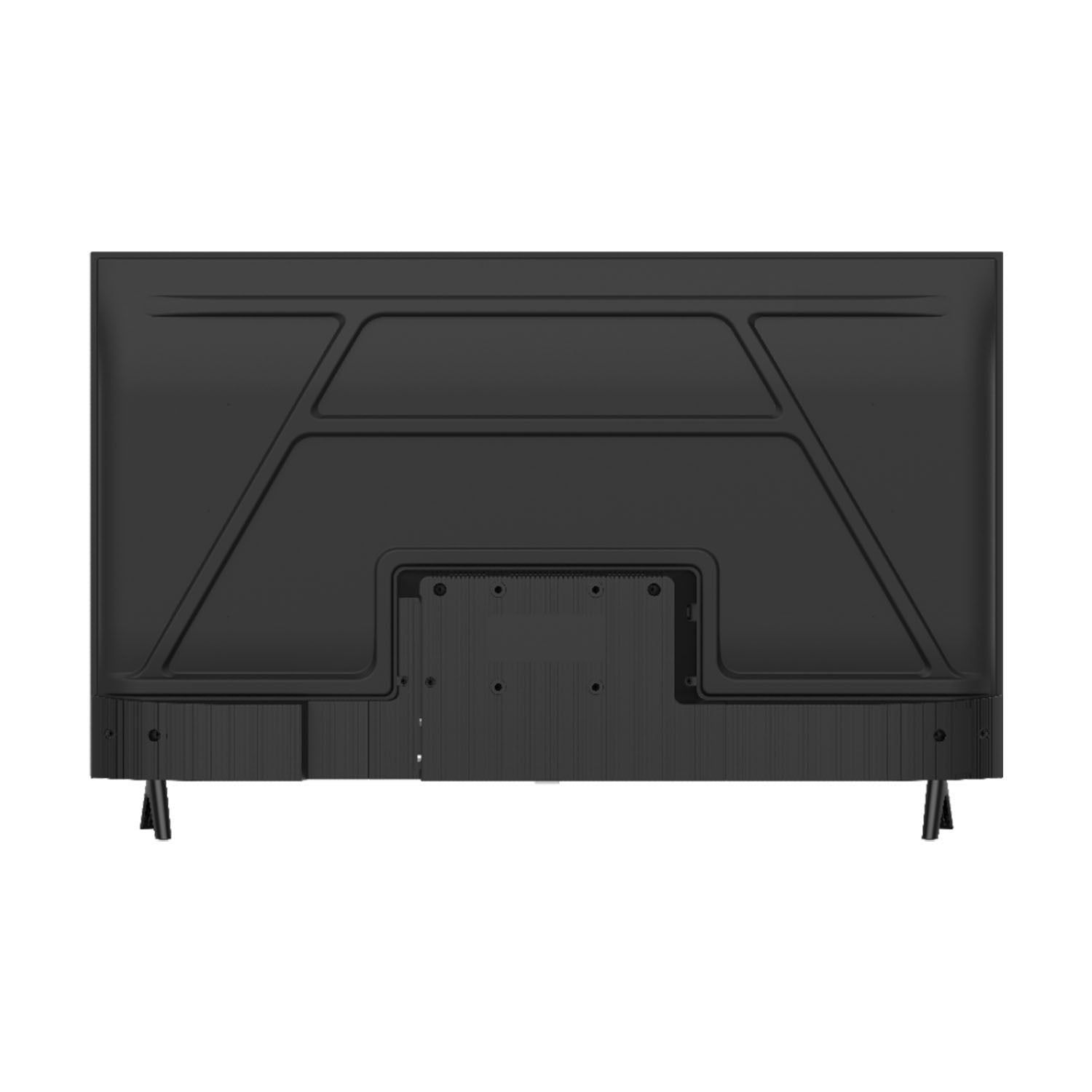

VESA Hole Pattern: 100 x 100mm
Warranty: 12 Months Warranty
Panel Specification:
Display: 43-inch
Backlight Unit: DLED
Aspect Ratio: 16:9
Panel Active Size (Inch): 42.5
Display Resolution: FHD (1920 x 1080)
Brightness (cd/m2): 220 (min.), 240 (typ.)
Contrast Ratio (Open Cell): 5000:1 (typ.)
Response Time (G to G) (ms): 9.5 (typ.)
Viewing Angle (H/V) (Open Cell): 178°/178° (typ.)
Life Time (hrs): 30,000 (typ.)
Color: 16.7 Million (8bit)
Refresh Rate (Hz): 60
Color Volume: ≥64% NTSC (CIE-1931)
White Uniformity (Brightness): ≥60%
Picture:
Picture Preset: Vivid, Low Power, Smart HDR, Sport, Movie, Game, PC
Backlight (Brightness): 0~100
Auto Format: On, Off
Screen Mode: 16:9, 4:3, Cinerama, 14:9 zoom, 16:9 zoom, 16:9 zoom up
Overscan: On, Off
Dynamic Brightness: Off, ECO, Brightness+, Auto
Micro Dimming: 2304 zones
Advanced Settings: Contrast, Black Level, Dynamic Contrast, Black Stretch, Gamma, Color Saturation, Tint, Color Temperature, White Balance, Color Space, RGB Mode, Sharpness, Noise Reduction
Input Lag: 5ms @Game Mode
USB Device Media Format:
Music: MP3, WMA, AC3, AC4
Picture: JPEG, PNG, BMP, GIF
Multimedia Video/Audio Decoder: H.264, H.265, MPEG1/2/4, WMV, VC1, VP8, VP9, AV1
Video Format up to: Up to 1920x1080@60Hz-10bit 4:4:4
USB Mouse/Key Board Support: Yes
Sound:
Speakers: Integrated Speaker Boxes (Bottom Side)
Audio Power Output (THD=7%): 9.5W x2
Sound Mode: Standard, Dynamic, Movie, Music, Voice, Game, Sport
Sound Preset Reset: Yes
TV Placement: Stand, Wall Mount
Dolby Audio: MS12Z
Button Sound: On, Off
Audio Delay: Yes
Audio Only: Yes
Advanced Settings: Balance, Auto Volume Control, Digital Audio Out
Basic Function:

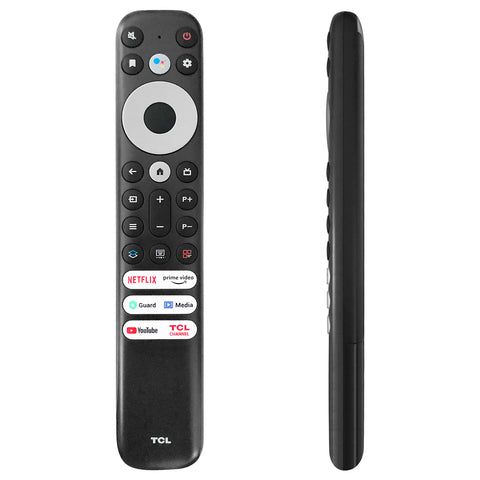

Google Assistant/Voice Search: Voice input via remote control.
Initial Setup: Yes, for user setting in TV first start-up.
Instant Power On: A special standby mode for start-up in shorter time.
Bluetooth: Yes, for external Bluetooth speaker/sound bar.
Channels Edit: Yes, for TV channel renaming.
Input Setting: For input source device name choice and edit.
Input Method: T-IME, Gboard, Virtual Remote Keyboard
System Update: Yes
HDMI CEC: Yes
Audio Language/MTS/NICAM: Yes
EPG: Yes (for DTV programme only)
Close Caption/Subtitle: Yes
E-Sticker: Yes
Parental Control: Yes (for DTV programme only)
Featured Apps:
Google Play Store: Popular apps and games.
YouTube: Watch countless contents online.
Google Play Games: Game platform of Google Play.
Google Play Movies & TV: Watch Google Play Movies & TV on Android TV.
Chrome Cast: To cast favorite entertainment and apps contents from your phone, tablet or laptop right to TV.
Netflix: Watch TV shows and movies online.
Media Center: Video/Music play for USB device.

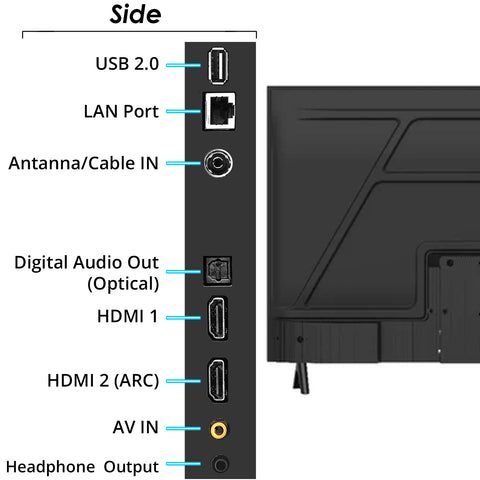

Connectivity:
Side:
USB 2.0 – x1
LAN – x1
Antenna/Cable In – x1
Digital Audio Output (Optical) – x1
HDMI (Service) – x1
HDMI (ARC) – x1
AV Input – x1
Headphone Output – x1

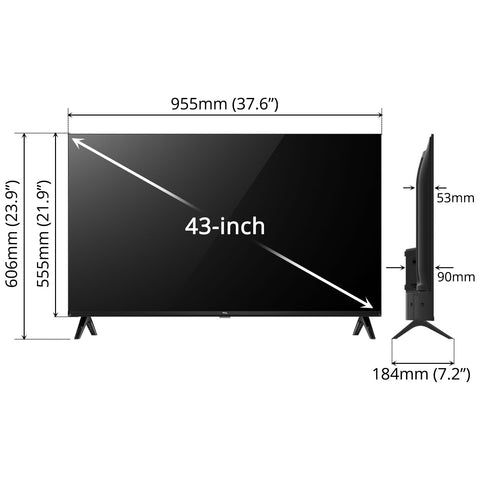

Dimensions & Weight
Product Dimension with Stand (W x D x H): 955 x 184 x 606mm
Product Dimension without Stand (W x D x H): 955 x 90 x 555mm
Carton Dimension (W x D x H): 1075 x 128 x 652mm
Net Weight with Stand: 5.73kg
Net Weight without Stand: 5.67kg
Gross Weight with Packaging: 7.93kg
SKU: 52353
