Akavee - Air Conditioner (24000BTU)
Brand: Akavee
Model: AS-24MER3DI
Type: DC Inverter Split Type
Technical Specs:
Rated Capacity (Cooling): 7100 W
Dehumidifying: 2.2 Kg/h
Rated Power Consumption (Cooling): 2200 W
Rated Running Current: 11 A
Max. Input Power: 2800W
Max. Input Current: 15A
CSPF (Cooling Seasonal Performance Factor): 4.56 W/W
Air Flow Volume: 1300m3/h
Power Supply Source: 220-240V / 1Ph / 50Hz
Refrigerant & Pressure:
Refrigerant: R32
Refrigerant Charged: 850g
Max. Discharge Pressure: 4.3Mpa
Max. Suction Pressure: 2.5Mpa
Connection:
Connect pipe (Length): 3m
Stop Valve:
Liquid Valve: DG4
Gas Valve: DG10
Indoor Unit:
Noise level: 47db
Evaporator (tube):
Length: 850mm
Diameter: 7mm
Fan system (fan motor): Model D-310-50-10A
Outdoor Unit:
Noise level: 57db
Compressor Model: GMCC
Compressor Parameter (type): Rotation
Fan system (fan motor): Model D-60-10M
Condenser (tube):
Length: 886mm
Diameter: 7mm
Dimension & Weight:
Width x Depth x Height
Product Dimension: 1140 x 229 x 334mm (44.9” x 9” x 13.1”)
Packing Dimension: 1210 x 327 x 400mm (47.6” x 12.9” x 15.7”)
Net Weight: 13kg
Gross Weight: 17kg
Outdoor Unit:
Product Dimension: 823 x 302 x 655mm (32.4” x 11.9” x 25.8”)
Packing Dimension: 945 x 400 x 715mm (37.2” x 15.7” x 28.1”)
Net Weight: 28.5kg
Gross Weight: 33kg
Packing Contents:
24k BTU Indoor Unit – x1
Remote Control – x1
Remote Holder (Wall-Mount) – x1
Screws with Plugs – x2
AA Battery – x2
Electric Wire – x1
Drainage Hose – x1
User Manual – x1

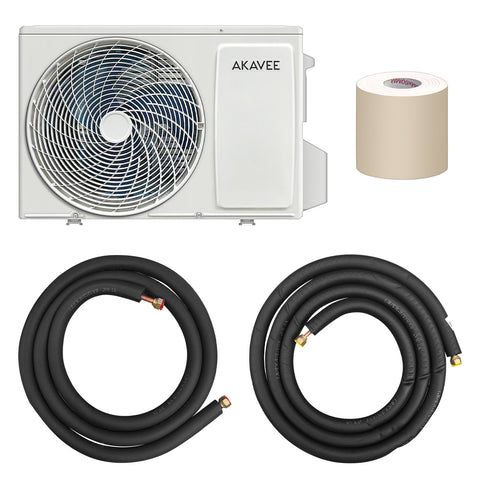

24k BTU Outdoor Unit – x1
Insulated Copper Tube – x1
Insulated Copper Tube – x1
Wrapping Roll – x1
SKU: 59068
