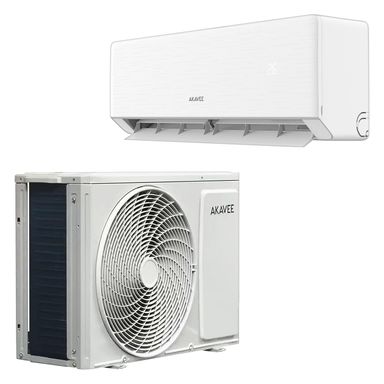

Akavee - Air Conditioner (18000BTU)
Brand: Akavee
Model: AS-18MER3DI
Type: DC Inverter Split Type
Technical Specs:
Rated Capacity (Cooling): 5300 (1300 - 5300) W
Dehumidifying: 1.6 Kg/h
Rated Power Consumption (Cooling): 1700 (240 - 2200) W
Rated Running Current: 7.7 (2.3 - 9) A
Max. Input Power: 1900W
Max. Input Current: 9A
CSPF (Cooling Seasonal Performance Factor): 5.42 W/W
Air Flow Volume: 850m3/h
Power Supply Source: 220-240V / 1Ph / 50Hz
Refrigerant & Pressure:
Refrigerant: R32
Refrigerant Charged: 360g
Max. Discharge Pressure: 4.3Mpa
Max. Suction Pressure: 2.5Mpa
Connection:
Connect pipe (Length): 3m
Stop Valve:
Liquid Valve: DG4
Gas Valve: DG10
Indoor Unit:
Noise level: 47db
Evaporator (tube):
Length: 722mm
Diameter: 5mm
Fan system (fan motor): Model D-310-30-10A
Outdoor Unit:
Noise level: 53db
Compressor Model: GMCC
Compressor Parameter (type): Rotation
Fan system (fan motor): Model D-35-10M
Condenser (tube):
Length: 688mm
Diameter: 5mm
Dimension & Weight:
Width x Depth x Height
Indoor Unit:
Product Dimension: 997 x 222 x 321mm (39.3” x 8.7” x 12.6”)
Packing Dimension: 1070 x 312 x 385mm (42.1” x 12.3” x 15.2”)
Net Weight: 11kg
Gross Weight: 14.5kg
Outdoor Unit:
Product Dimension: 709 x 280 x 536mm (27.9” x 11” x 21.1”)
Packing Dimension: 825 x 345 x 595mm (32.5” x 13.6” x 23.4”)
Net Weight: 21.5kg
Gross Weight: 25kg
Packing Contents:
18k BTU Indoor Unit – x1
Remote Control – x1
Remote Holder (Wall-Mount) – x1
Screws with Plugs – x2
AA Battery – x2
Electric Wire – x1
Drainage Hose – x1
User Manual – x1

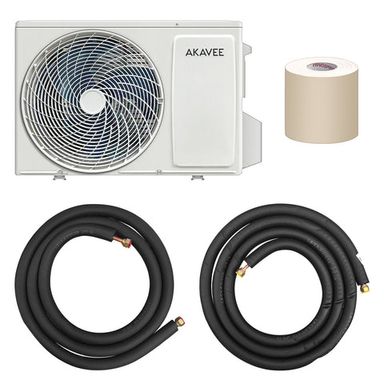

18k BTU Outdoor Unit – x1
Insulated Copper Tube – x1
Insulated Copper Tube – x1
Wrapping Roll – x1
SKU: 59067
