Midea – Air Conditioner
Xtreme Series
Brand: Midea
Model: MSAGF-36HRFN1
Capacity: 36000BTU
Type: Cooling Only
Control type: Remote (Wi-Fi Control Optional)
Power Supply (V, Ph, Hz): 220-240 V, 1 Ph, 50 Hz
Cooling:
Cooling Capacity (Btu/h): 36000
Input (W): 3450W
Rated Current (A): 15.31A
EER (W/W): 3.05
Max. Input Consumption (W): 5000W
Max. Current (A): 23A
Compressor:
Type: Rotary
Capacity (W): 8095W
Input (W): 2200W
Rated current (RLA) (A): 10A
Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

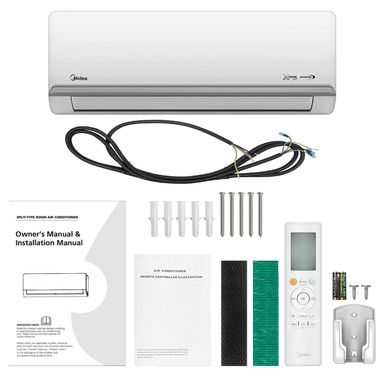

Indoor Unit:
Indoor Fan Motor:
Input (W): 58W
Capacitor (uF): 0 uF
Speed (High/Middle/Low): 1200/1020/930 r/min
Indoor Coil:
Number of rows: 2
Tube pitch (a) x row pitch (b): 21 x 13.37mm
Fin spacing: 1.2mm
Fin type (code): Hydrophilic aluminum
Tube outside dia. and type: Φ7,Inner groove tube
Coil (length x height x width): 965 x 189 x 26.74mm + 965 x 84 x 26.74mm + 945 x 147 x 26.74mm
Number of circuits: 5
Indoor air flow (High/Middle/Low): 1603/1302/1153 m3/h
Indoor noise level (High/Middle/Low): 52/46/42.5/0 dB (A)

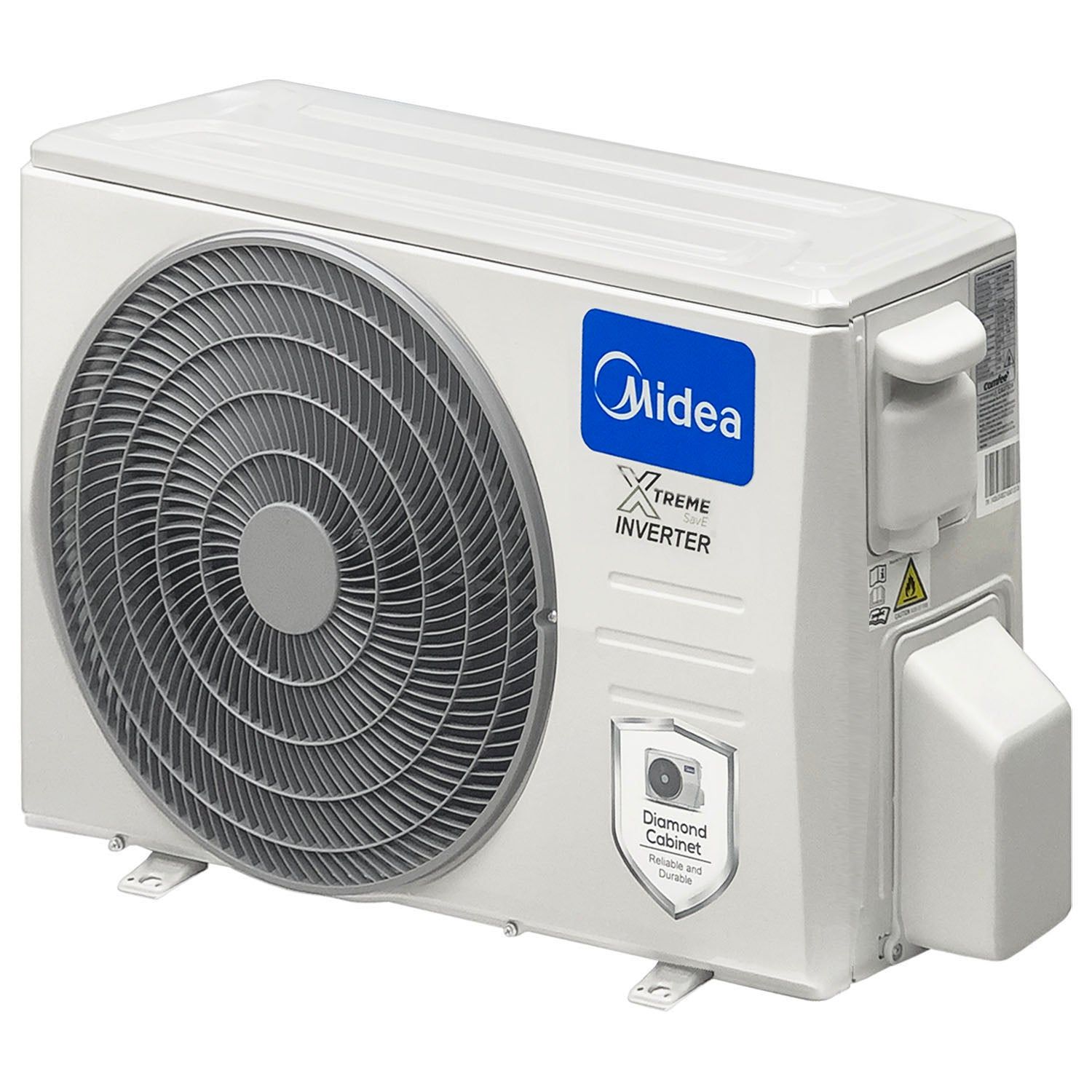

Outdoor Unit:
Outdoor Fan Motor:
Input (W): 150W
Capacitor (uF): N/A
Speed: 880/700/500 r/min
Outdoor Coil:
Number of rows: 2.6
Tube pitch (a) x row pitch (b): 21 x 13.37mm
Fin spacing: 1.4mm
Fin type (code): Hydrophilic aluminum
Tube outside dia. and type: Φ7,Inner groove tube
Coil (length x height x width): 1005 x 756 x 26.74mm + 598 x 756 x 13.37mm
Number of circuits: 6
Outdoor air flow: 3600 m3/h
Outdoor noise level: 61 dB (A)
Additional Specs:
Refrigerant Type: R410A
Design Pressure: 4.2/1.5 MPa
Refrigerant Piping:
Liquid Side / Gas Side: 9.52mm (3/8in) / 15.9mm (5/8in)
Max. Refrigerant Pipe Length: 50m
Max. Difference in Level: 25m
Connection Wiring: 1.5x4//
Plug Type: //no-plug
Thermostat Type: Remote Control
Room Temperature:
Indoor (Cooling): 16 ~ 32°C
Outdoor (Cooling): -15 ~ 50°C
Application Area (Cooling Standard): 43 ~ 63m2
Dimension & Weight:
Weight x Depth x Height
Indoor Unit:
Product Dimension: 1259 x 283 x 362mm (49.6” x 11.1” x 14.2”)
Packing Dimension: 1340 x 450 x 385mm (52.8” x 17.7” x 15.2”)
Net Weight: 17.9kg
Gross Weight: 23.4kg
Outdoor Unit:
Product Dimension: 946 x 410 x 810mm (37.2” x 16.1” x 31.9”)
Packing Dimension: 1090 x 500 x 885mm (42.9” x 19.7” x 34.8”)
Net Weight: 61.5kg
Gross Weight: 66kg
SKU: 55070
