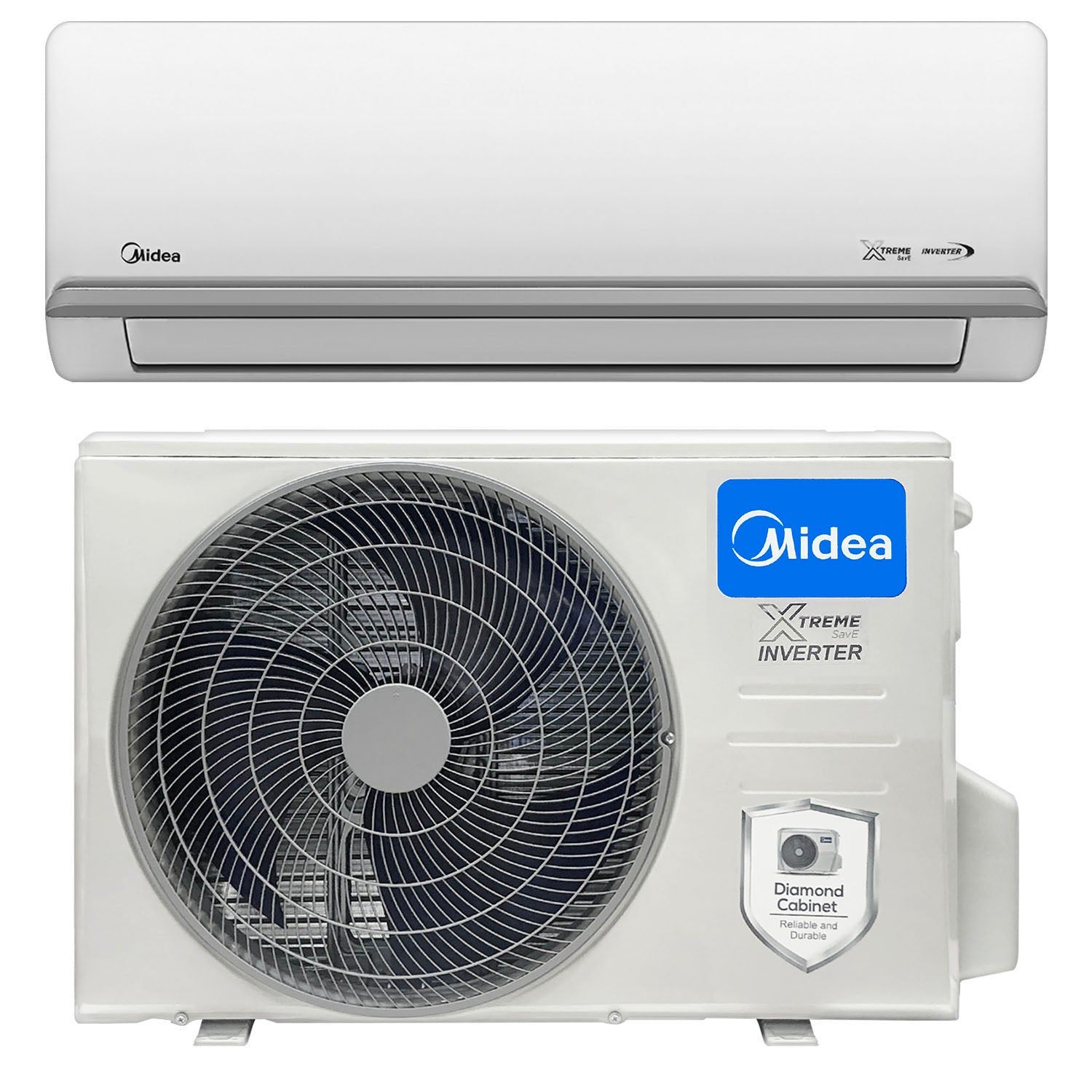

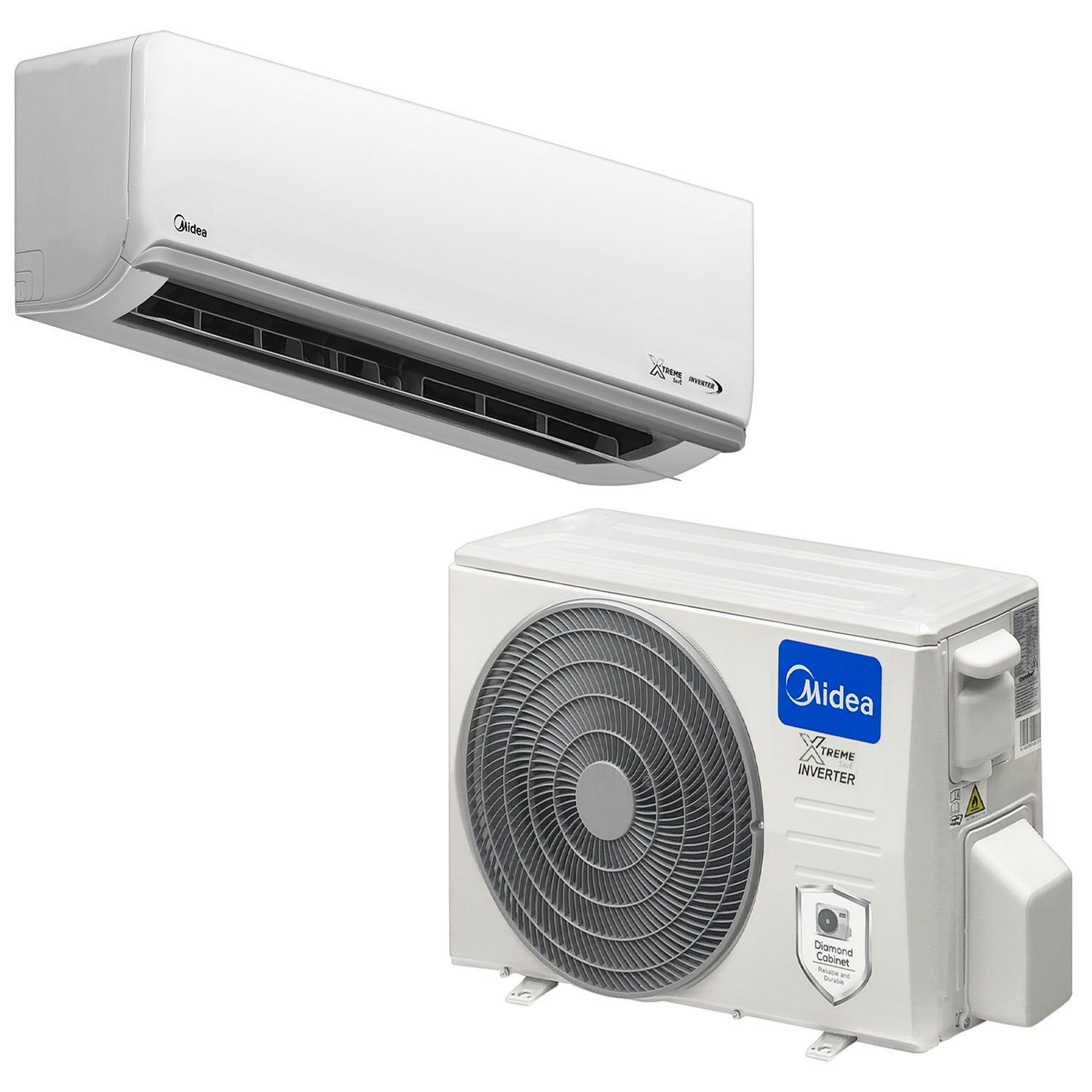

Midea – Air Conditioner
Xtreme Series
Brand: Midea
Model: MSXS-19CRDN8
Capacity: 18000BTU
Type: Cooling Only
Control type: Remote (Wi-Fi Control Optional)
Power Supply (V, Ph, Hz): 220-240 V, 1 Ph, 50 Hz
Cooling:
Cooling Capacity (Btu/h): 18000
Input (W): 1650W
Rated Current (A): 7.2A
EER (W/W): 3.2
Max. Input Consumption (W): 3200W
Max. Current (A): 14A
Compressor:
Type: Rotary
Capacity (W): 4385W
Input (W): 1140W
Rated current (RLA) (A): 7.50A
Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

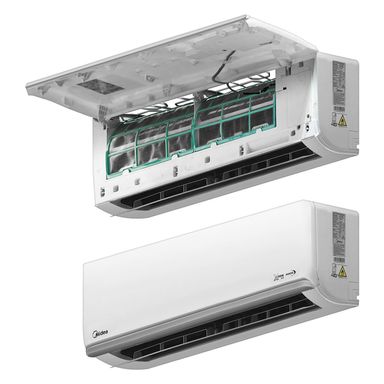

Indoor Unit:
Indoor Fan Motor:
Input (W): 71W
Capacitor (uF): 1.5 uF
Speed (High/Middle/Low): 1200/980/870 r/min
Indoor Coil:
Number of rows: 2
Tube pitch (a) x row pitch (b): 21 x 13.37mm
Fin spacing: 1.2mm
Fin type (code): Hydrophilic aluminum
Tube outside dia. and type: Φ7,Inner groove tube
Coil (length x height x width): 750 x 210 x 26.74mm + 750 x 126 x 26.74mm
Number of circuits: 4
Indoor air flow (High/Middle/Low): 844/639/547 m3/h
Indoor noise level (High/Middle/Low): 42.5/36/32.5 dB (A)

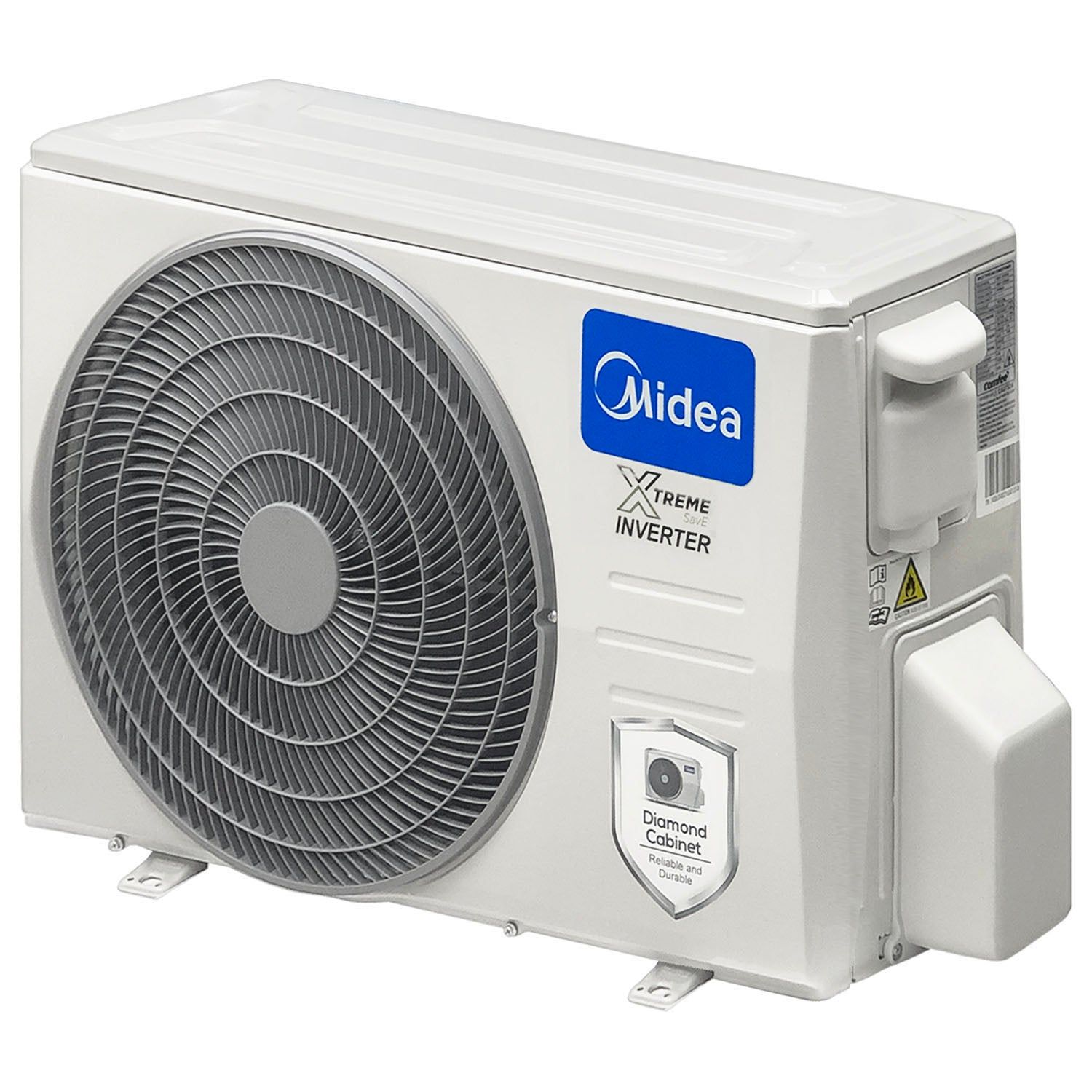

Outdoor Unit:
Outdoor Fan Motor:
Input (W): N/A
Capacitor (uF): 2.5 uF
Speed: 890 r/min
Outdoor Coil:
Number of rows: 1.6
Tube pitch (a) x row pitch (b): 19.5 x 11.6mm
Fin spacing: 1.2mm
Fin type (code): green anti-corrosion aluminum
Tube outside dia. and type: Φ5,Inner groove tube
Coil (length x height x width): 755 x 507 x 11.6mm + 462 x 507 x 11.6mm
Number of circuits: 4
Outdoor air flow: 2100 m3/h
Outdoor noise level: 56.5 dB (A)
Additional Specs:
Refrigerant Type: R32/0.65 kg
Design Pressure: 4.3/1.7 MPa
Refrigerant Piping:
Liquid Side / Gas Side: 6.35mm (1/4in) / 12.7mm (1/2in)
Max. Refrigerant Pipe Length: 25m
Max. Difference in Level: 10m
Connection Wiring: 5.5m
Plug Type: 1.5 x 3/no-plug
Thermostat Type: Remote Control
Operation Temperature: 17 ~ 30 °C
Room Temperature:
Indoor (Cooling): 17 ~ 32 °C
Outdoor (Cooling): 0 ~ 50 °C
Application Area (Cooling Standard): 24 ~ 35m2

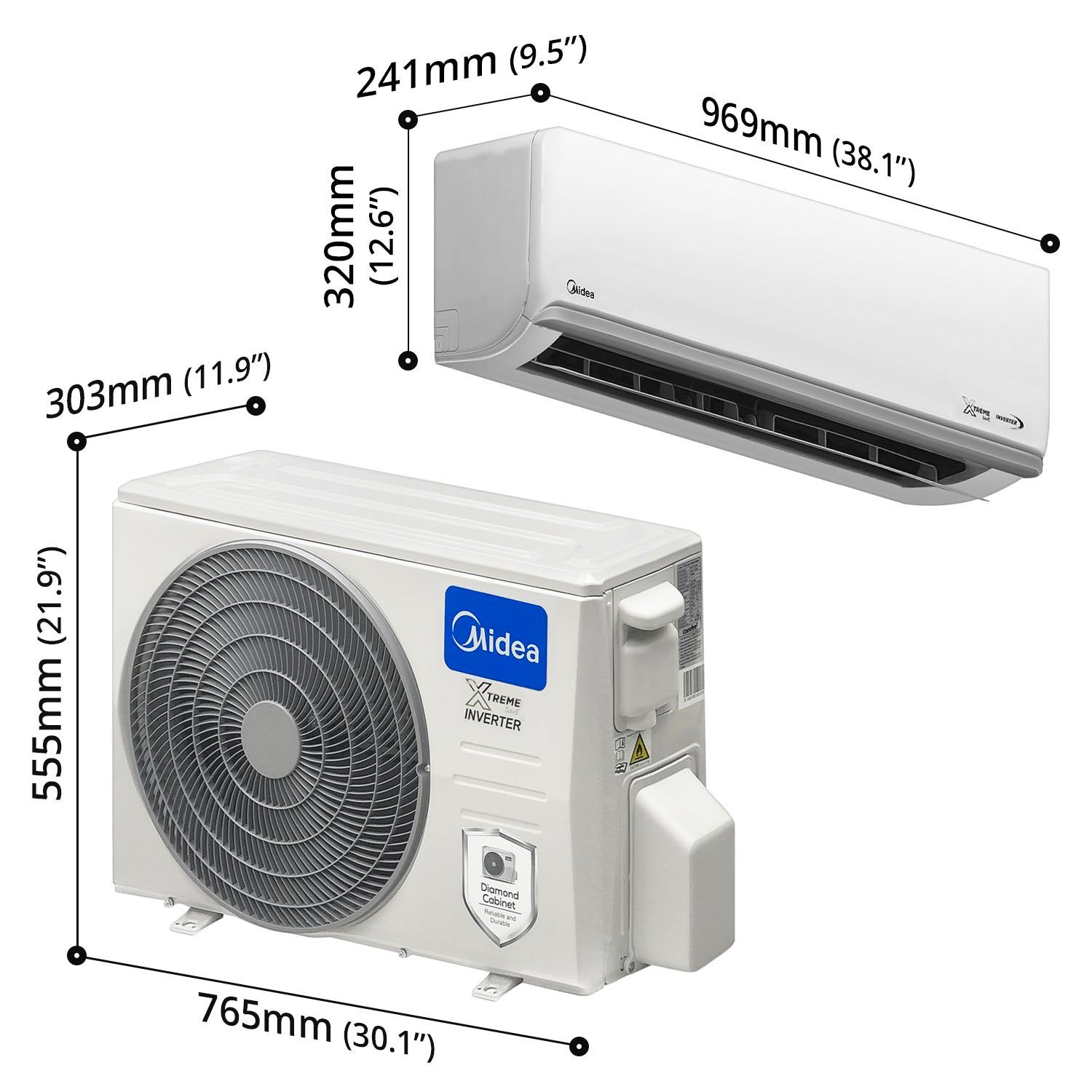

Dimension & Weight:
Width x Depth x Height
Indoor Unit:
Product Dimension: 969 x 241 x 320mm (38.1” x 9.5” x 12.6”)
Packing Dimension: 1045 x 315 x 405mm (41.1” x 12.4” x 15.9”)
Net Weight: 11.9kg
Gross Weight: 15.2kg
Outdoor Unit:
Product Dimension: 765 x 303 x 555mm (30.1” x 11.9” x 21.9”)
Packing Dimension: 887 x 337 x 610mm (34.9” x 13.3” x 24”)
Net Weight: 27.2kg
Gross Weight: 29.4kg

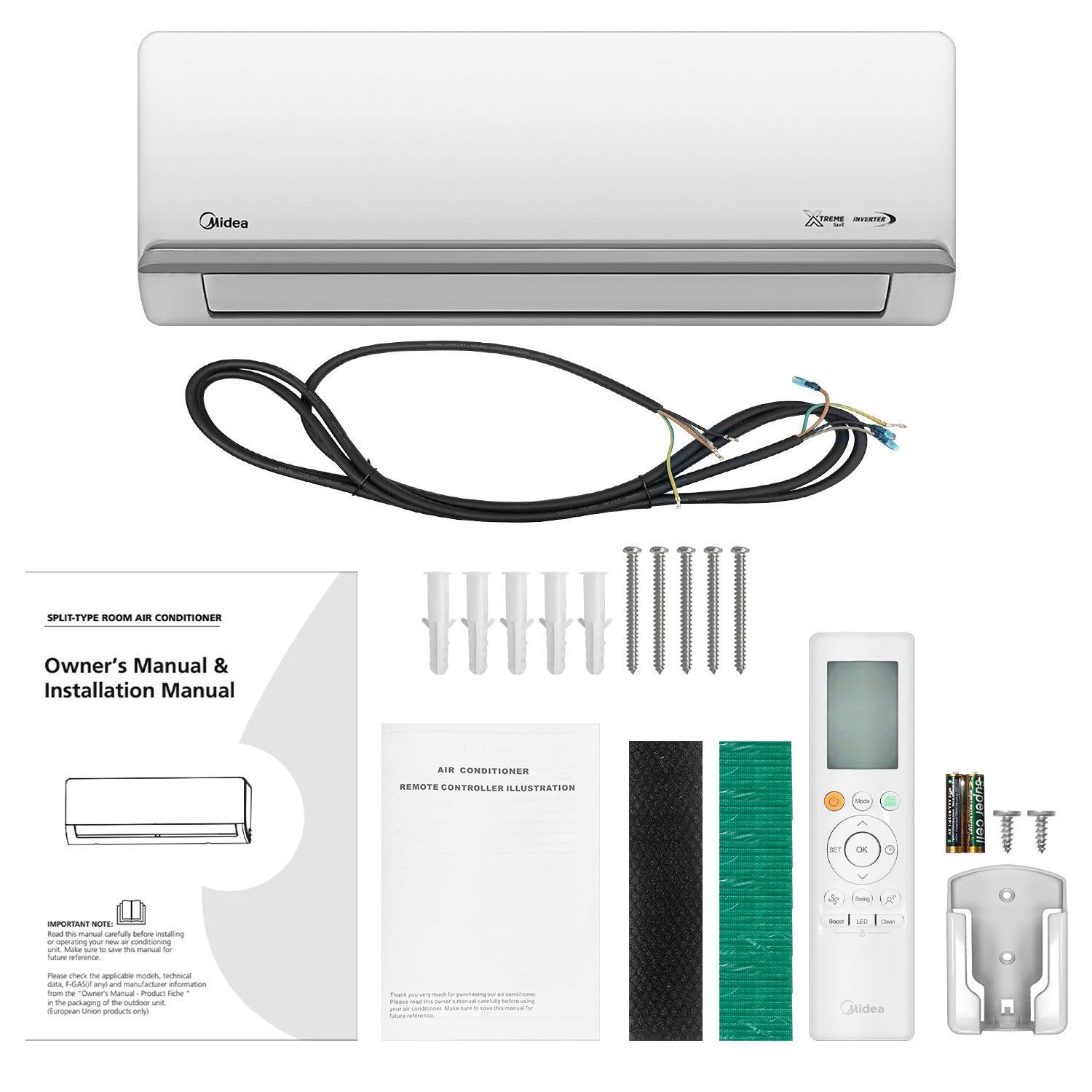

Packing Contents:
18k BTU Indoor Unit – x1
Electric Wire – x1

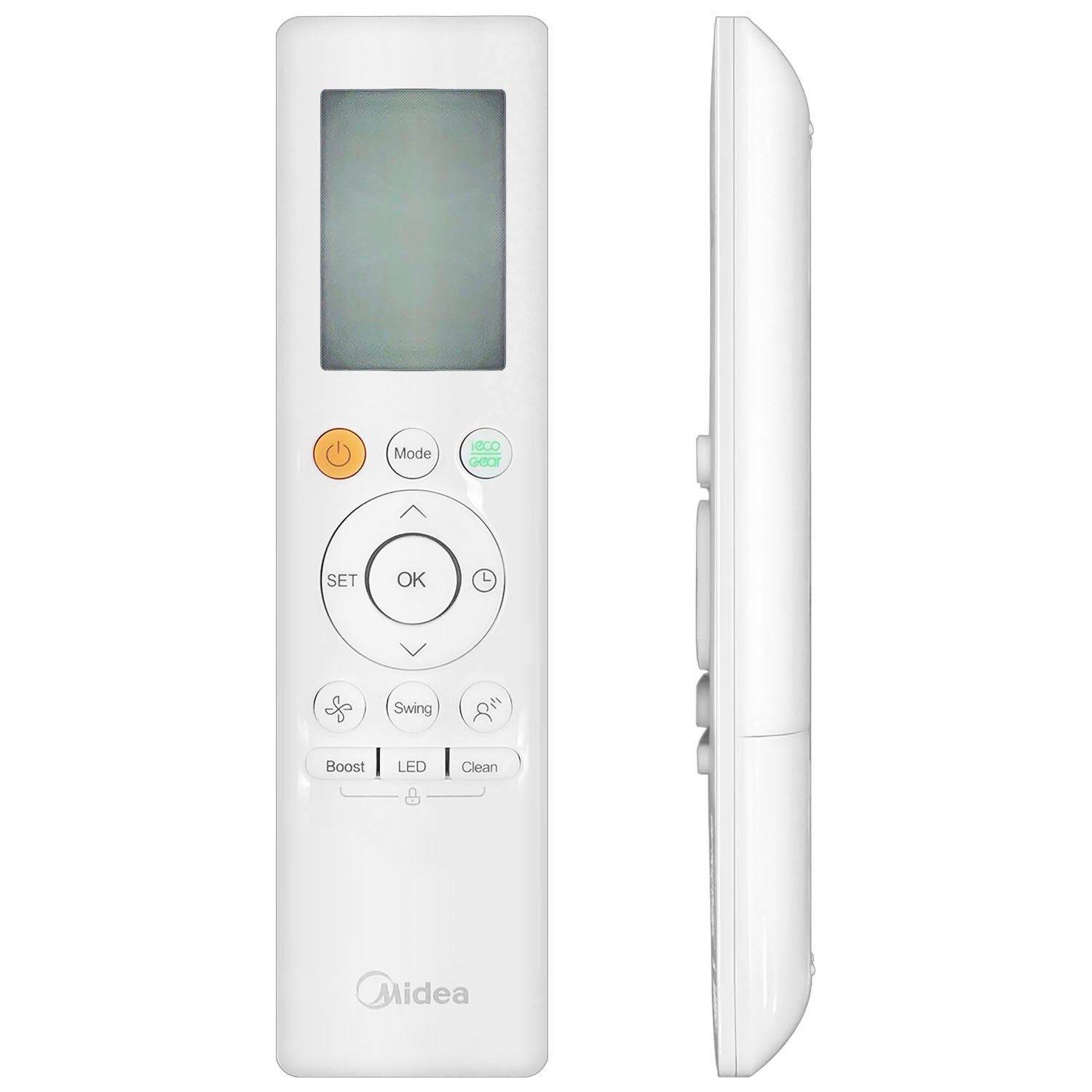

Remote Control – x1
AA Battery – x2
Remote Holder (Wall-Mount) with 2 Screws – x1
Screws – x5
Wall Plugs – x5
Small Filter – x2
Remote Controller User Manual – x1
User Manual – x1

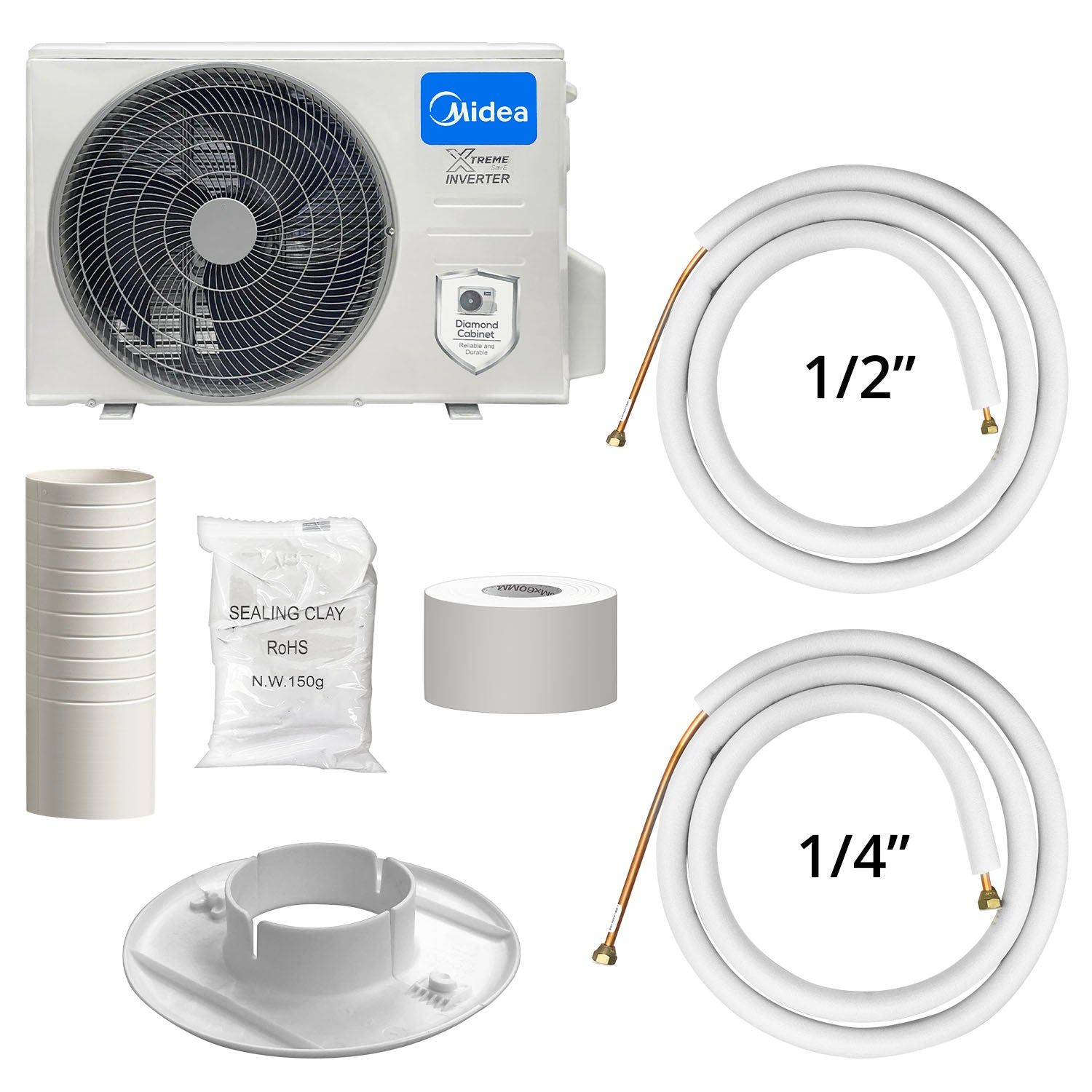

18k BTU Outdoor Unit – x1
1/2" Insulated Copper Tube – x1
1/4” Insulated Copper Tube – x1
Sealing Clay – x1
Wall Sleeve – x1
Wall Hole Cover – x1
Wrapping Roll – x1
SKU: 47934
