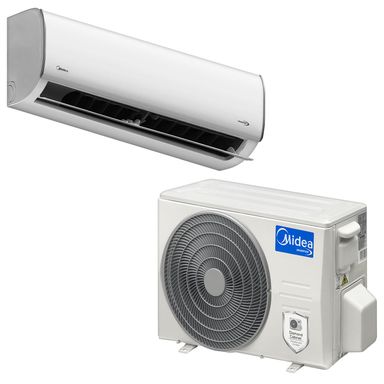

Midea – Air Conditioner
Inverter - Forest Series
Brand: Midea
Model: MSAF-24CRDN8
Capacity: 24000BTU
Type: Cooling Only
Control Type: Remote
Power Supply (V, Ph, Hz): 220-240 V, 1 Ph, 50 Hz
Cooling:
Cooling Capacity (Btu/h): 24000
Input (W): 2000W
Rated Current (A): 8.7A
EER (W/W): 3.08
Max. Input Consumption (W): 2800W
Max. Current (A): 13.5A
Compressor:
Type: Rotary
Capacity (W): 4385W
Input (W): 1140W
Rated current (RLA) (A): 7.50A
Warranty: 1 Year Warranty plus 5 Years Compressor Warranty
Indoor Unit:
Indoor Fan Motor:
Input (W): 77W
Capacitor (uF): 3 uF
Speed (High/Middle/Low): 1200/1000/800 r/min
Indoor Coil:
Number of rows: 2
Tube pitch (a) x row pitch (b): 21 x 13.37mm
Fin spacing: 1.3mm
Fin type (code): Hydrophilic aluminum
Tube outside dia. and type: Φ7, Inner groove tube
Coil (length x height x width): 780 x 210 x 26.74mm + 780 x 105 x 26.74mm
Number of circuits: 4
Indoor air flow (High/Middle/Low): 1050/840/630 m3/h
Indoor noise level (High/Middle/Low): 46/40/34 dB (A)
Outdoor Unit:
Outdoor Fan Motor:
Input (W): 100W
Capacitor (uF): 0 uf
Speed: 980/600 r/min
Outdoor Coil:
Number of rows: 2
Tube pitch (a) x row pitch (b): 19.5 x 11.6mm
Fin spacing: 1.2mm
Fin type (code): green anti-corrosion aluminum
Tube outside dia. and type: Φ5,Inner groove tube
Coil (length x height x width): 875 x 507 x 23.2mm
Number of circuits: 4
Outdoor air flow: 3100 m3/h
Outdoor noise level: 56.5 dB (A)
Additional Specs:
Refrigerant Type: R32/0.83 kg
Design Pressure: 4.3/1.7 MPa
Refrigerant Piping:
Liquid Side / Gas Side: 6.35mm (1/4in) / 15.9mm (5/8in)
Max. Refrigerant Pipe Length: 30m
Max. Difference in Level: 20m
Connection Wiring: 3.5m
Plug Type: 2.5 x 3/no-plug
Thermostat Type: Remote Control
Operation Temperature: 17 ~ 30 °C
Room Temperature:
Indoor (Cooling): 17 ~ 32 °C
Outdoor (Cooling): 0 ~ 50 °C
Application Area (Cooling Standard): 28 ~ 41m2
Dimension & Weight:
Width x Depth x Height

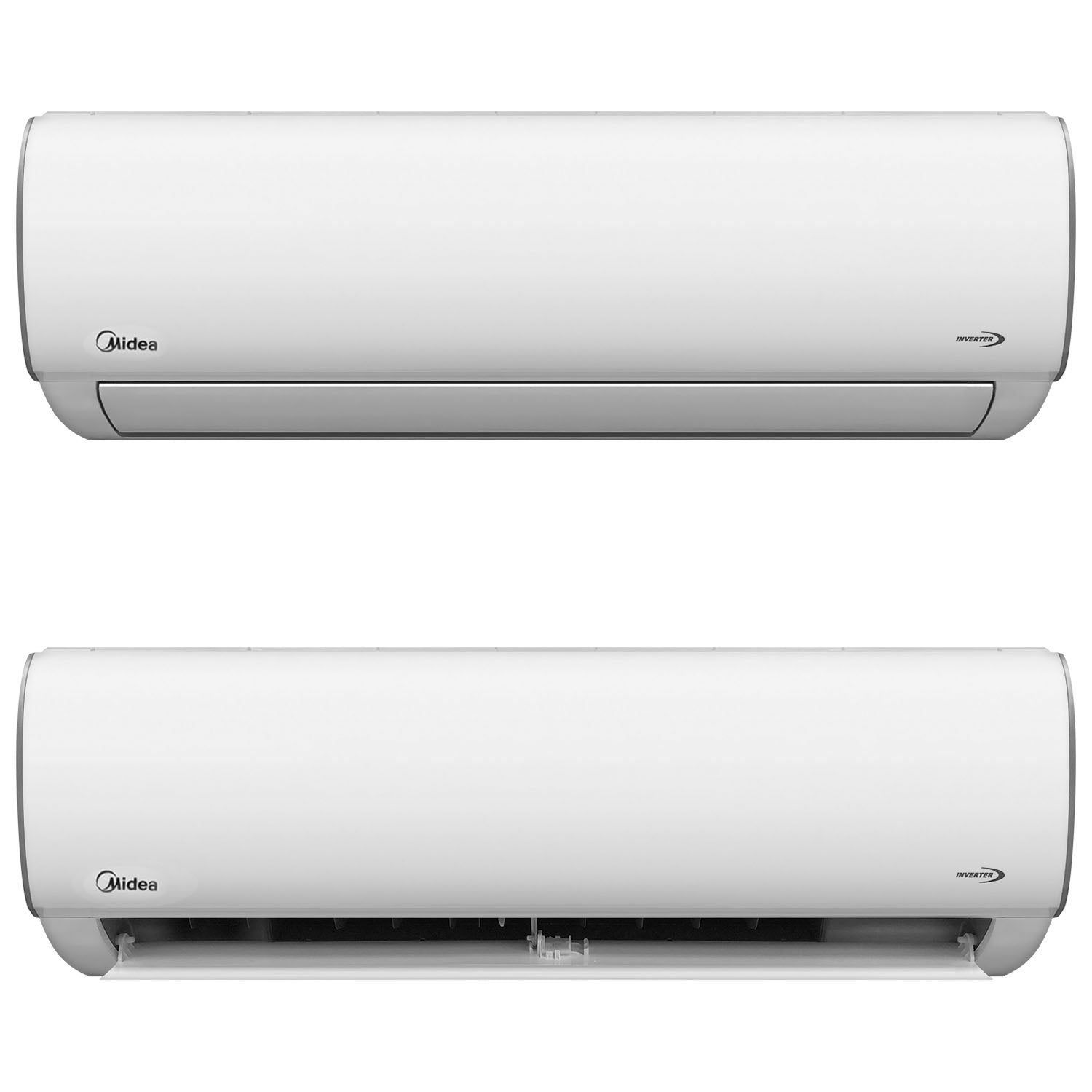

Indoor Unit:
Product Dimension: 1040 x 220 x 327mm (40.9” x 8.7” x 12.9”)
Packing Dimension: 1120 x 405 x 315mm (44.1” x 15.9” x 12.4”)
Net Weight: 13.6kg
Gross Weight: 16.9kg

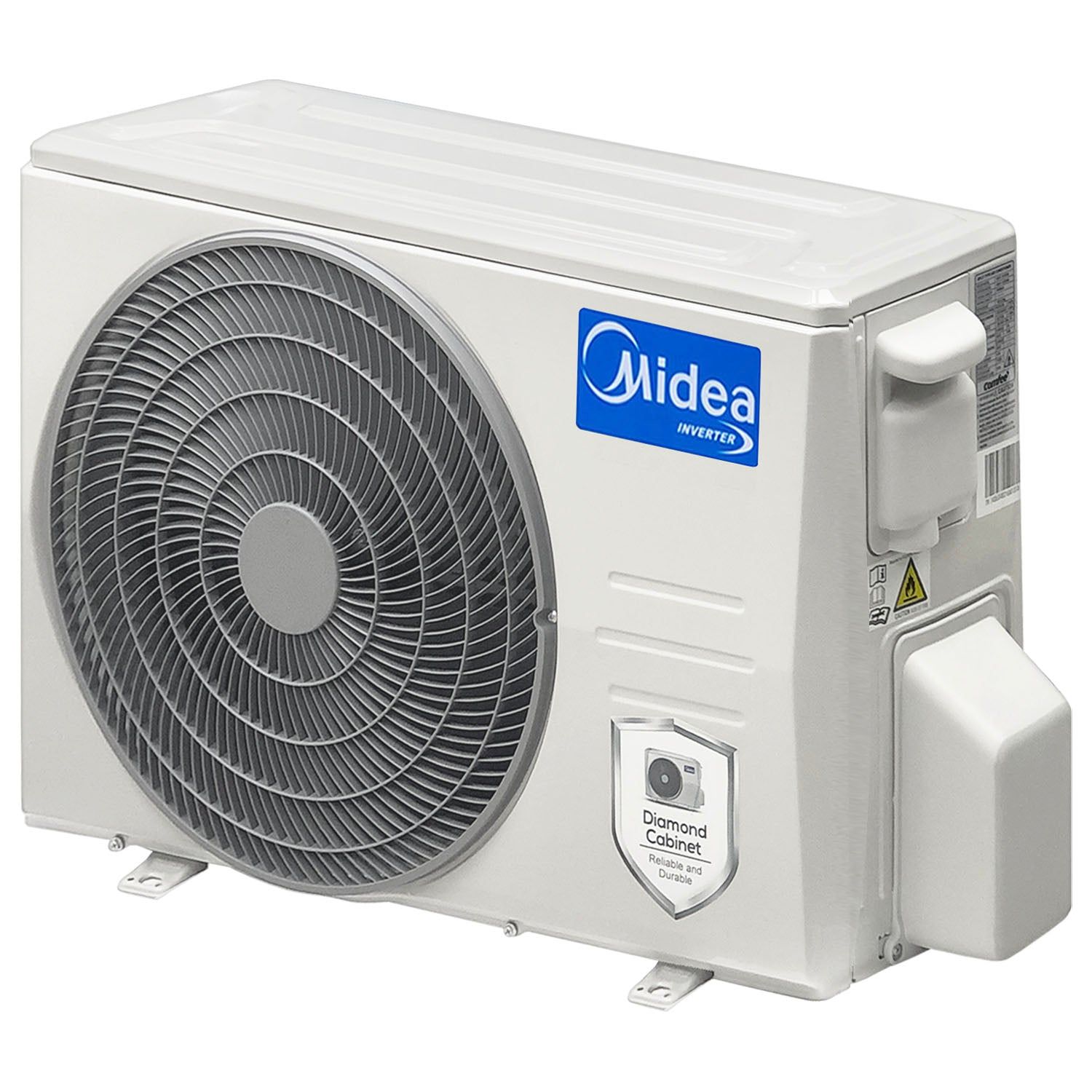

Outdoor Unit:
Product Dimension: 805 x 330 x 554mm (31.7” x 13” x 21.8”)
Packing Dimension: 915 x 370 x 615mm (36” x 14.6” x 24.2”)
Net Weight: 29.6kg
Gross Weight: 32.3kg

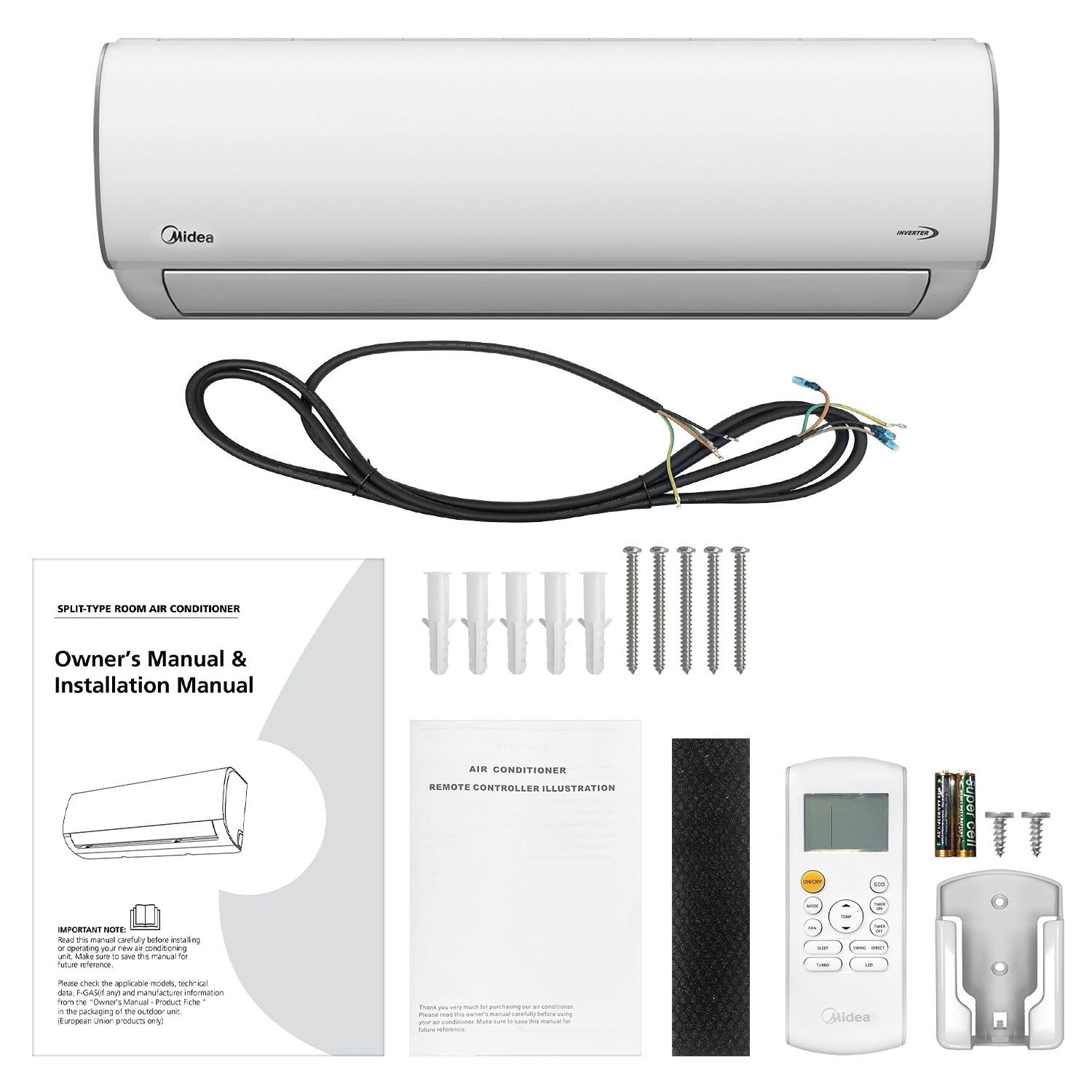

Packing Contents:
24k BTU Indoor Unit – x1
Electric Wire – x1

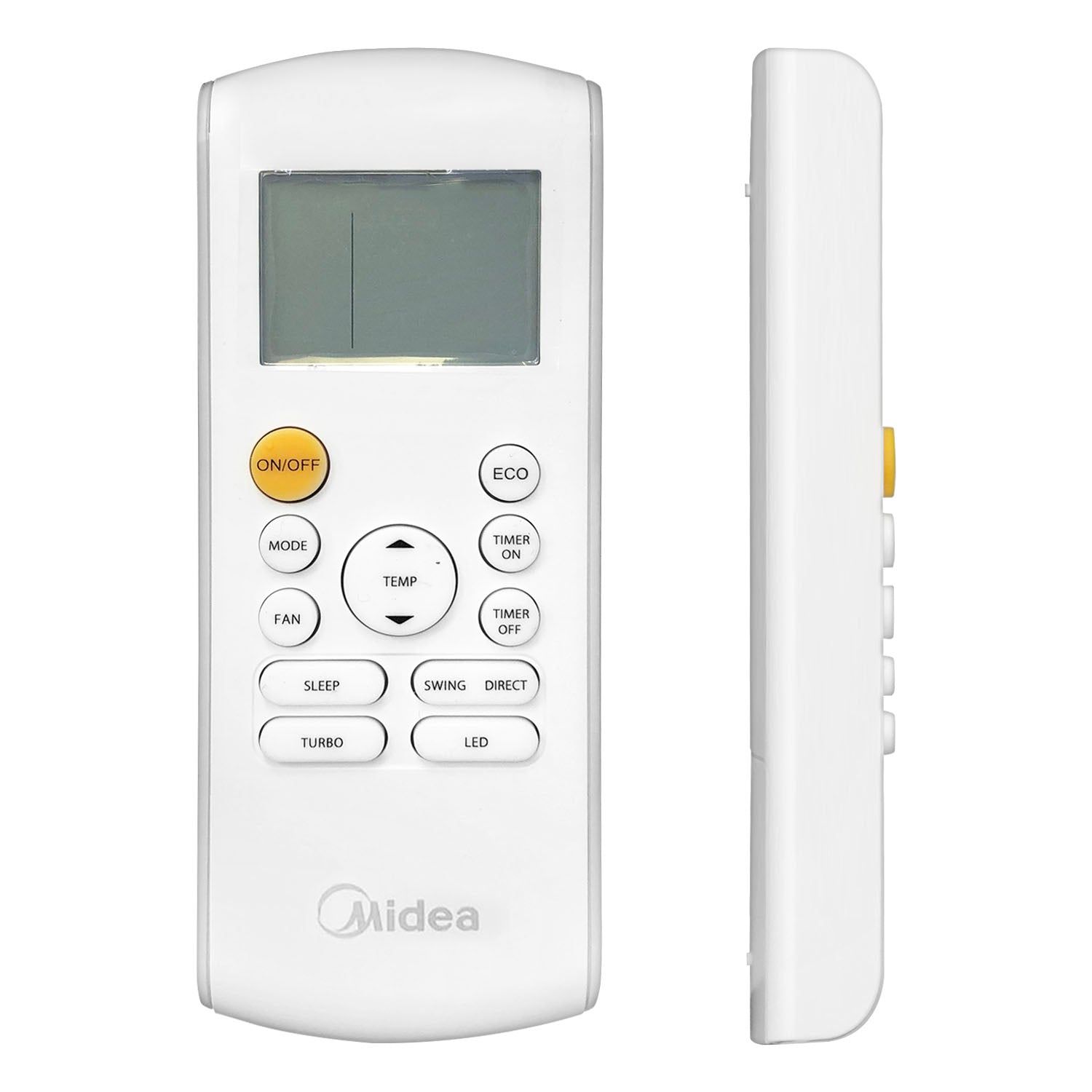

Remote Control – x1
AA Battery – x2
Remote Holder (Wall-Mount) with 2 Screws – x1
Screws – x5
Wall Plugs – x5
Small Filter – x1
Remote Controller User Manual – x1
User Manual – x1
24k BTU Outdoor Unit – x1
1/4" Insulated Copper Tube – x1
5/8” Insulated Copper Tube – x1
Sealing Clay – x1
Wall Sleeve – x1
Wall Hole Cover – x1
Wrapping Roll – x1
SKU: 51524
