Midea – Air Conditioner
Inverter - Forest Series
Brand: Midea
Model: MSAF-18CRDN8
Capacity: 18000BTU
Type: Cooling Only
Control Type: Remote
Power Supply (V, Ph, Hz): 220-240 V, 1 Ph, 50 Hz
Cooling:
Cooling Capacity (Btu/h): 18000
Input (W): 1748W
Rated Current (A): 7.6A
EER (W/W): 2.85
Max. Input Consumption (W): 3105W
Max. Current (A): 13.5A
Compressor:
Type: Rotary
Capacity (W): 4385W
Input (W): 1140W
Rated current (RLA) (A): 7.50A
Warranty: 1 Year Warranty plus 5 Years Compressor Warranty
Indoor Unit:
Indoor Fan Motor:
Input (W): 71W
Capacitor (uF): 1.5 uF
Speed (High/Middle/Low): 1330 r/min
Indoor Coil:
Number of rows: 2
Tube pitch (a) x row pitch (b): 21 x 13.37mm
Fin spacing: 1.2mm
Fin type (code): Hydrophilic aluminum
Tube outside dia. and type: Φ7, Inner groove tube
Coil (length x height x width): 750 x 189 x 26.74mm + 750 x 105 x 26.74mm
Number of circuits: 3
Indoor air flow (High/Middle/Low): 737/625/501 m3/h
Indoor noise level (High/Middle/Low): 41/37.5/31.5 dB (A)

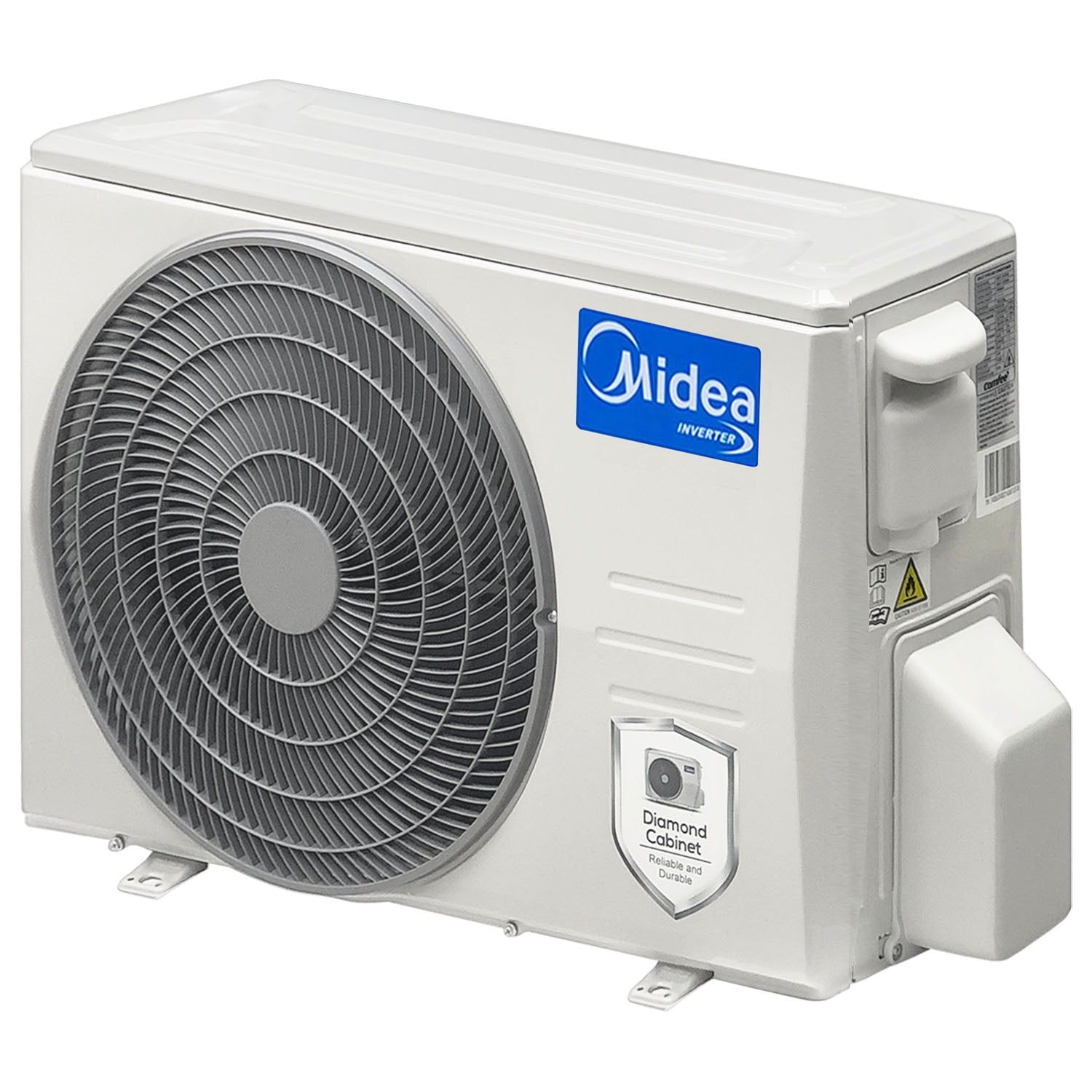

Outdoor Unit:
Outdoor Fan Motor:
Input (W): 72.5W
Capacitor (uF): 2.5 uF
Speed: 850 r/min
Outdoor Coil:
Number of rows: 1
Tube pitch (a) x row pitch (b): 19.5 x 11.6mm
Fin spacing: 1.2mm
Fin type (code): green anti-corrosion aluminum
Tube outside dia. and type: Φ5, Inner groove tube
Coil (length x height x width): 878 x 507 x 11.6mm
Number of circuits: 2
Outdoor air flow: 2000 m3/h
Outdoor noise level: 53.5 dB (A)
Additional Specs:
Refrigerant Type: R32/0.58 kg
Design Pressure: 4.3/1.7 MPa
Refrigerant Piping:
Liquid Side / Gas Side: 6.35mm (1/4in) / 12.7mm (1/2in)
Max. Refrigerant Pipe Length: 30m
Max. Difference in Level: 20m
Connection Wiring: 3.5m
Plug Type: 1.5 x 3/no-plug
Thermostat Type: Remote Control
Operation Temperature: 17 ~ 30 °C
Room Temperature:
Indoor (Cooling): 17 ~ 32 °C
Outdoor (Cooling): 0 ~ 50 °C
Application Area (Cooling Standard): 23 ~ 33m2
Dimension & Weight:
Width x Depth x Height
Indoor Unit:
Product Dimension: 957 x 213 x 302mm (37.6” x 8.4” x 11.9”)
Packing Dimension: 1035 x 295 x 385mm (40.7” x 11.6” x 15.2”)
Net Weight: 10.85kg
Gross Weight: 14kg
Outdoor Unit:
Product Dimension: 800 x 333 x 554mm (31.5” x 13.1” x 21.8”)
Packing Dimension: 920 x 390 x 615mm (36.2” x 15.4” x 24.2”)
Net Weight: 28.3kg
Gross Weight: 30.9kg

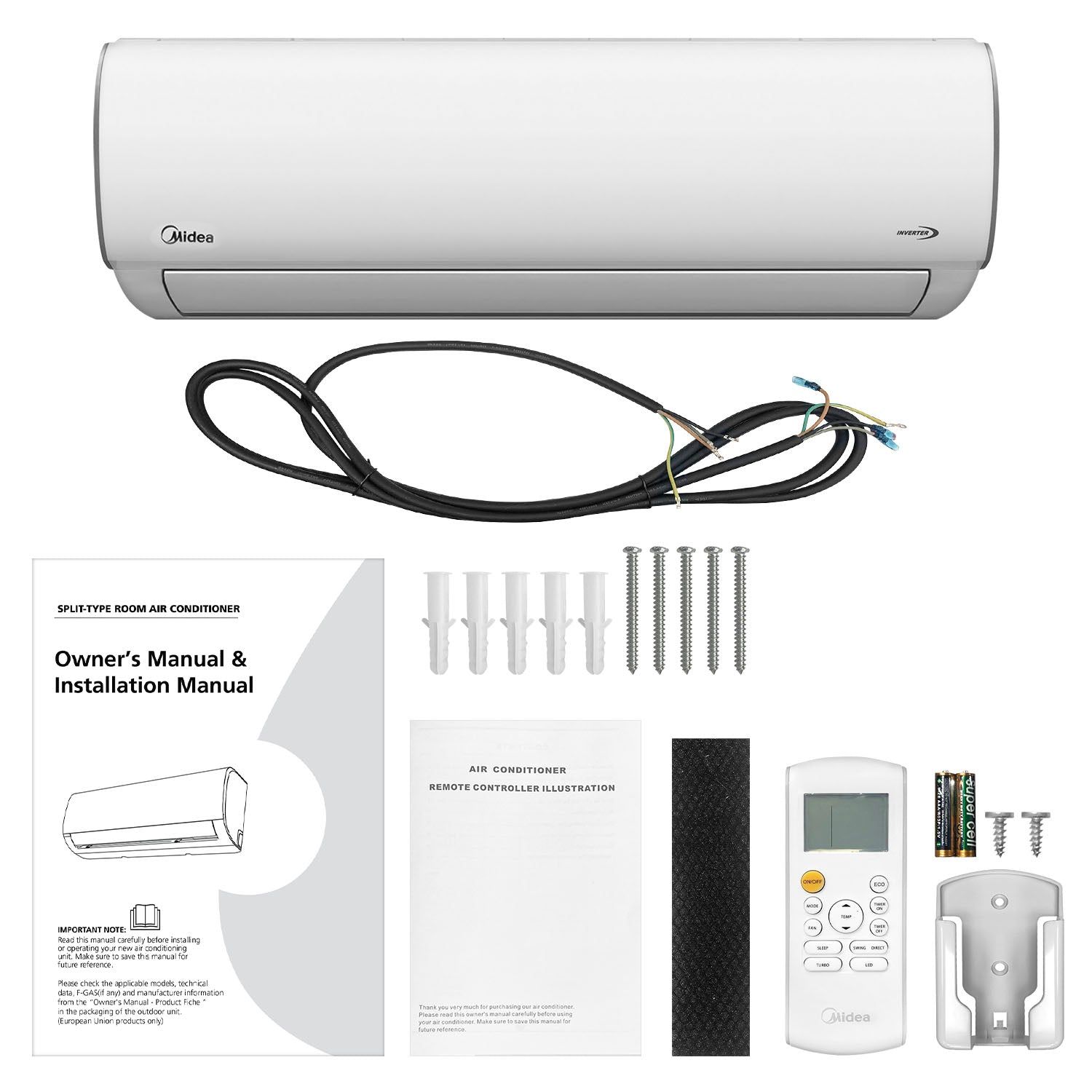

Packing Contents:
18k BTU Indoor Unit – x1
Electric Wire – x1

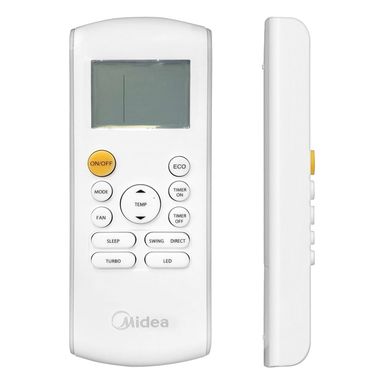

Remote Control – x1
AA Battery – x2
Remote Holder (Wall-Mount) with 2 Screws – x1
Screws – x5
Wall Plugs – x5
Small Filter – x1
Remote Controller User Manual – x1
User Manual – x1
18k BTU Outdoor Unit – x1
1/2" Insulated Copper Tube – x1
1/4” Insulated Copper Tube – x1
Sealing Clay – x1
Wall Sleeve – x1
Wall Hole Cover – x1
Wrapping Roll – x1
SKU: 51523
