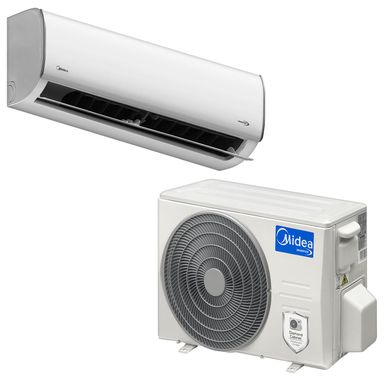

Midea – Air Conditioner
Inverter - Forest Series
Brand: Midea
Model: MSAF-10CRDN8
Capacity: 9000BTU
Type: Cooling Only
Control Type: Remote
Power Supply (V, Ph, Hz): 220-240 V, 1 Ph, 50 Hz
Cooling:
Cooling Capacity (Btu/h): 9000
Input (W): 745W
Rated Current (A): 3.6A
EER (W/W): 3.54
Max. Input Consumption (W): 1150W
Max. Current (A): 6.5A
Compressor:
Type: Rotary
Capacity (W): 3255W
Input (W): 826W
Rated current (RLA) (A): 5.65A
Warranty: 1 Year Warranty plus 5 Years Compressor Warranty
Indoor Unit:
Indoor Fan Motor:
Input (W): 40W
Capacitor (uF): 1.2 uF
Speed (High/Middle/Low): 1050/950/800 r/min
Indoor Coil:
Number of rows: 2
Tube pitch (a) x row pitch (b): 21 x 13.37mm
Fin spacing: 1.2mm
Fin type (code): Hydrophilic aluminum
Tube outside dia. and type: Φ7, Inner groove tube
Coil (length x height x width): 510 x 84 x 13.37mm + 510 x 105 x 26.74mm + 510 x 84 x 26.74mm
Number of circuits: 2
Indoor air flow (High/Middle/Low): 490/384/310 m3/h
Indoor noise level (High/Middle/Low): 39/34/29 dB (A)
Outdoor Unit:
Outdoor Fan Motor:
Input (W): 63.5W
Capacitor (uF): 2.5 uF
Speed: 860 r/min
Outdoor Coil:
Number of rows: 1
Tube pitch (a) x row pitch (b): 19.5 x 11.6mm
Fin spacing: 1.2mm
Fin type (code): green anti-corrosion aluminum
Tube outside dia. and type: Φ5, Inner groove tube
Coil (length x height x width): 740 x 468 x 11.6mm
Number of circuits: 2
Outdoor air flow: 1800 m3/h
Outdoor noise level: 51.5 dB (A)
Additional Specs:
Refrigerant Type: R32/0.38 kg
Design Pressure: 4.3/1.7 MPa
Refrigerant Piping:
Liquid Side / Gas Side: 6.35mm (1/4in) / 9.52mm (3/8in)
Max. Refrigerant Pipe Length: 25m
Max. Difference in Level: 10m
Connection Wiring: 3.5m
Plug Type: BS three flat pin plug
Thermostat Type: Remote Control
Operation Temperature: 17 ~ 30 °C
Room Temperature:
Indoor (Cooling): 17 ~ 32 °C
Outdoor (Cooling): 0 ~ 50 °C
Application Area (Cooling Standard): 12 ~ 18m2
Dimension & Weight:
Width x Depth x Height
Indoor Unit:
Product Dimension: 715 x 194 x 285mm (28.1” x 7.6” x 11.2”)
Packing Dimension: 780 x 270 x 365mm (30.7” x 10.6” x 14.4”)
Net Weight: 7.4kg
Gross Weight: 9.4kg
Outdoor Unit:
Product Dimension: 720 x 270 x 495mm (28.3” x 10.6” x 19.5”)
Packing Dimension: 835 x 300 x 540mm (32.9” x 11.8” x 21.3”)
Net Weight: 21.7kg
Gross Weight: 23.6kg
Packing Contents:
9k BTU Indoor Unit – x1
Electric Wire – x1
Remote Control – x1
AA Battery – x2
Remote Holder (Wall-Mount) with 2 Screws – x1
Screws – x5
Wall Plugs – x5
Small Filter – x1
Remote Controller User Manual – x1
User Manual – x1
9k BTU Outdoor Unit – x1
1/4" Insulated Copper Tube – x1
3/8” Insulated Copper Tube – x1
Sealing Clay – x1
Wall Sleeve – x1
Wall Hole Cover – x1
Wrapping Roll – x1
SKU: 51521
