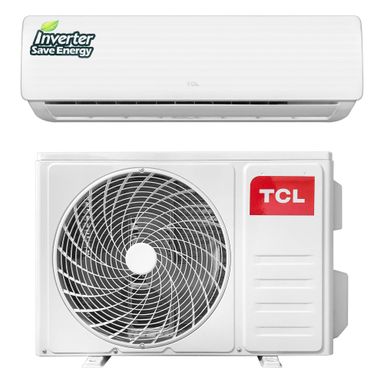

TCL - Air Conditioner (24000BTU)
Inverter
Brand: TCL
Model: TAC-24CSD
Capacity: 24000BTU
Type: Cooling Only
Control type: Remote
Rated Cooling Capacity (Btu/h): 24000 (5118 ~ 24520)
Rated Cooling Capacity (W): 7033
CSPF (Btu/h.w; W/W): 4.52
Moisture removal (Liters/h): 22
Indoor noise level at cooling (dB (A)):
High: 51
Med: 47
Low: 43
Outdoor noise level (dB (A)): 55
Warranty: 1 Year Warranty plus 5 Years Compressor Warranty
Power Supply:
Voltage Range: 155 ~ 265V
Rated current (Cooling): 10.5 (2.5~13.5) A
Rated input (Cooling): 2250 (500 ~ 2900) W
Max current: 13.5 A
Max input: 2900 W
Fan System:
Indoor air circulation Cooling (m3/h): 1000
Indoor fan type: Cross Flow
Indoor fan speed H/M/L:
Cooling (rpm): 1150/1050/950/850/800
Dry (rpm): 850
Sleep (rpm): 850
Indoor fan motor output: 44 W
Outdoor fan type: Propeller Fan
Outdoor fan speed: 880rpm
Outdoor fan motor output: 45W
Others
Refrigerant/Charge (Gram): R32/730
Compressor:
Type: Rotary
Evaporator: 3-bend
Indoor coil:
Number of rows: 2
Tube pitch (a)x row pitch (b): 21 x 12.7mm
Fin spacing: 1.4mm
Fin type (code): Hydrophilic
Tube outside dia.and type: Ø7mm inner groove tube
Coil (length x height x width): 797 x 357 x 25.4mm
Number of circuits: 4
Condenser: double-arranged
Connecting Pipe:
Gas: 1/2''
Liquid: 1/4''
Connecting Wiring (Size x Core number): 4 x 2.5
Dimension & Weight:
Width x Depth x Height
Suitable area: 30-50 m2

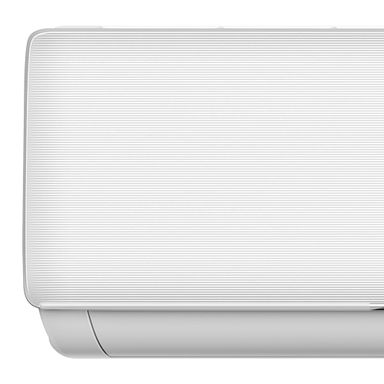

Indoor Unit:
Product Dimension: 1010 x 220 x 315mm (39.8” x 8.7” x 12.4”)
Packing Dimension: 1094 x 300 x 386mm (43.1” x 11.8” x 15.2”)
Net Weight: 13kg
Gross Weight: 16kg

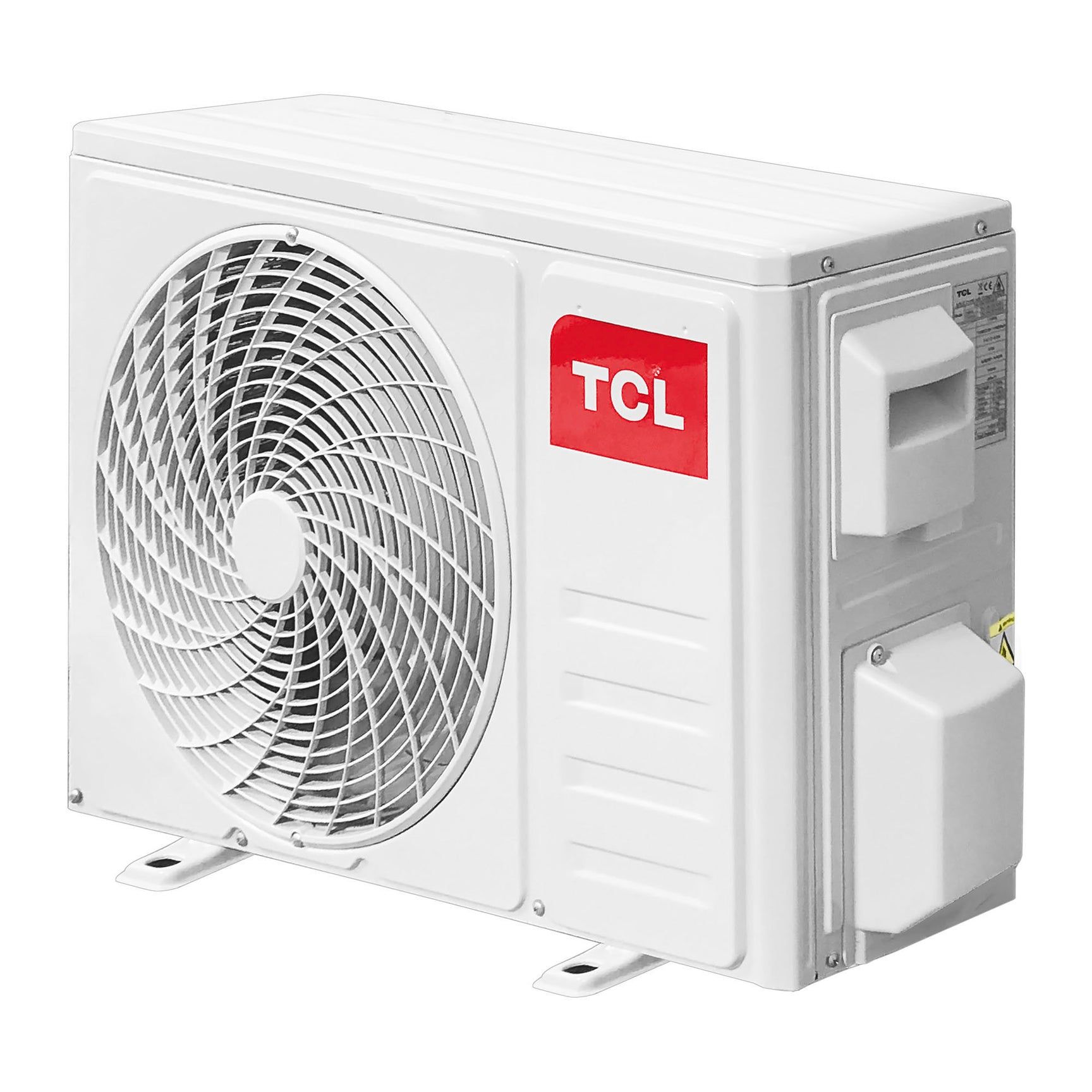

Outdoor Unit:
Product Dimension: 780 x 290 x 605mm (30.8” x 11.4” x 23.8”)
Packing Dimension: 890 x 385 x 628mm (35” x 15.2” x 24.7”)
Net Weight: 32kg
Gross Weight: 37kg

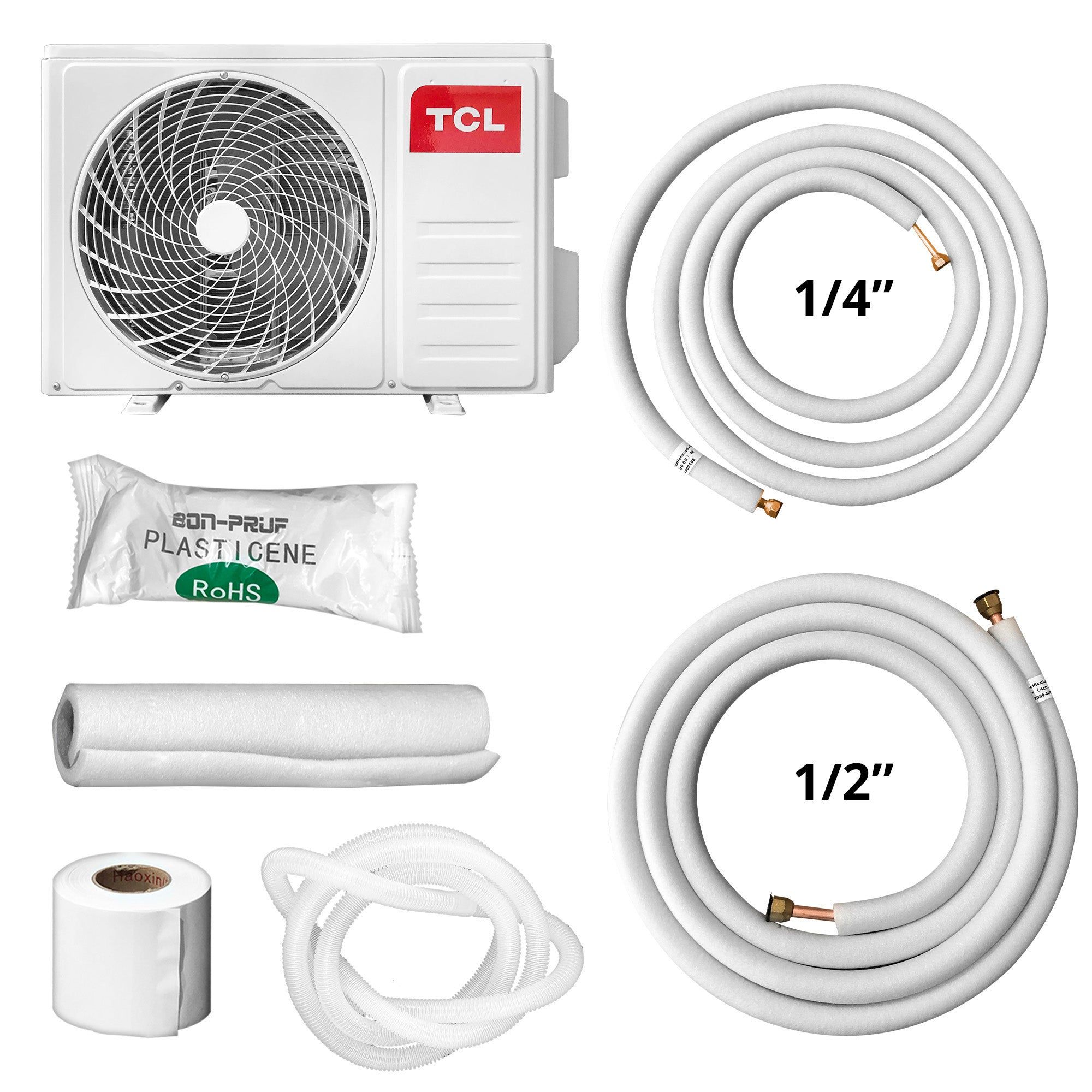

Packing Contents:
24k BTU Indoor Unit – x1
12ft. Electric wire – x1
Remote Control – x1
AAA Battery – x2
Wall Mount Remote Holder – x1
Screws with Plugs – x8
Warranty Certificate – x1
User Manual – x1
24k BTU Outdoor Unit – x1
1/4" Copper Tube (13ft.) – x1
1/2” Copper Tube (13ft.) – x1
Drainage Hose – x1
Wrapping Tape – x1
Insulation Sheath – x1
Plasticene RoHS – x1
SKU: 45475
