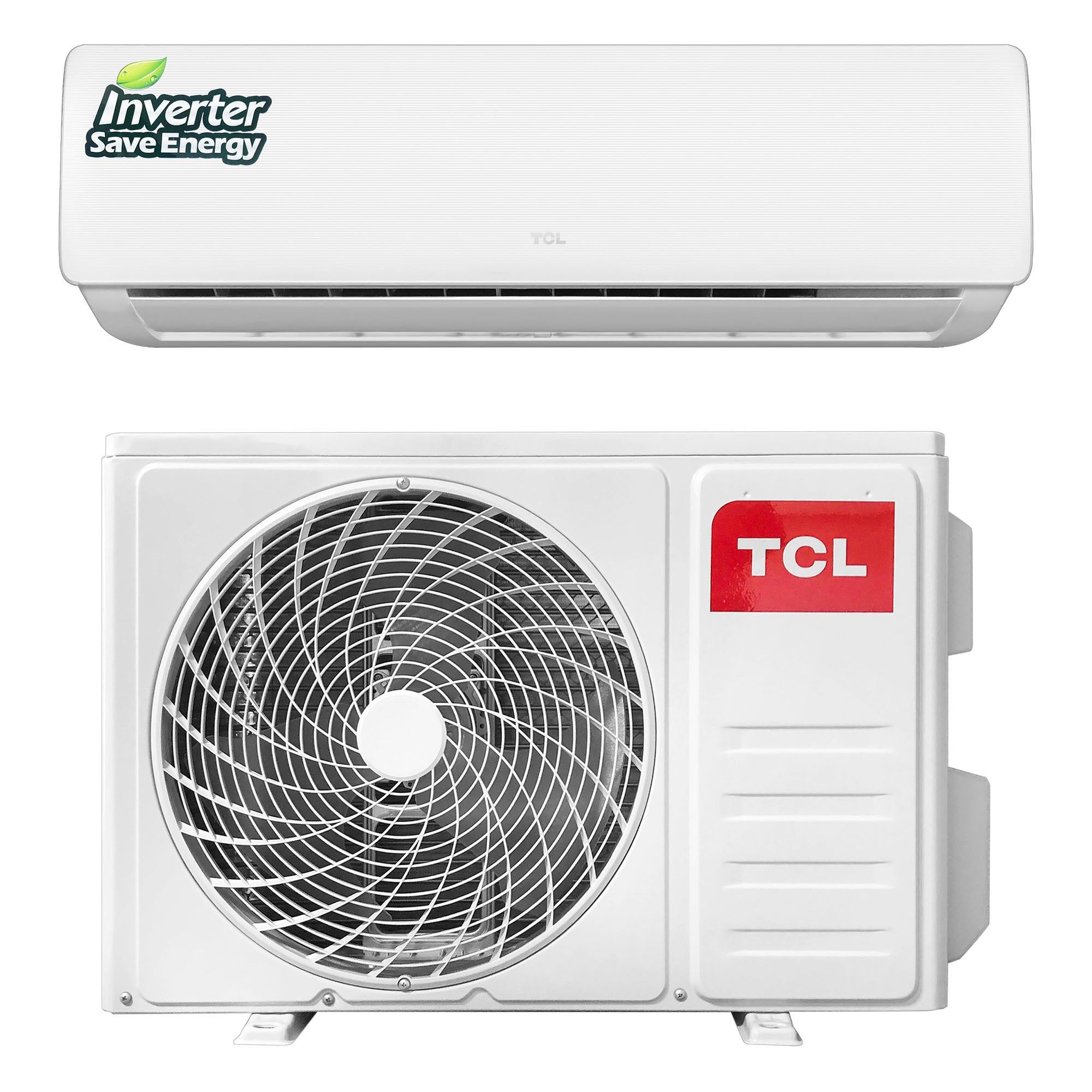

TCL - Air Conditioner (12000BTU)
Inverter
Brand: TCL
Model: TAC-12CSD
Capacity: 12000BTU
Type: Cooling Only
Control type: Remote
Rated Cooling Capacity (Btu/h): 12000 (2729 ~ 12000)
Rated Cooling Capacity (W): 3342
CSPF (Btu/h.w; W/W): 4.35
Moisture removal (Liters/h): 12
Indoor noise level at cooling (dB (A)):
High: 40.6
Med: 35.3
Low: 31.8
Outdoor noise level (dB (A)): 50.7
Warranty: 1 Year Warranty plus 5 Years Compressor Warranty
Power Supply
Voltage Range: 155 ~ 265V
Rated current (Cooling): 7.3 (1~8) A
Rated input (Cooling): 1130 (290 ~ 1450) W
Max current: 7.3 A
Max input: 1450 W
Fan System:
Indoor air circulation Cooling (m3/h): 465
Indoor fan type: Cross Flow
Indoor fan speed H/M/L:
Cooling (rpm): 1270/1150/950/850/600
Dry (rpm): 1270/1150/950/850/600
Sleep (rpm): 600
Indoor fan motor output: 46 W
Outdoor fan type: Propeller Fan
Outdoor fan speed: 860rpm
Outdoor fan motor output: 70W
Others
Refrigerant/Charge (Gram): R32/450
Compressor:
Type: Rotary
Evaporator: 3-bend
Indoor coil:
Number of rows: 2
Tube pitch (a)x row pitch (b): 21 x 25.4mm
Fin spacing: 1.5mm
Fin type (code): Hydrophilic
Tube outside dia.and type: Ø7mm inner groove tube
Coil (length x height x width): 573 x 225 x 25.4mm
Number of circuits: 2
Condenser: Single-arranged
Connecting Pipe:
Gas: 1/4''
Liquid: 3/8''
Connecting Wiring (Size x Core number): 4 x 1.0
Dimension & Weight:
Width x Depth x Height
Suitable area: 15-23 m2

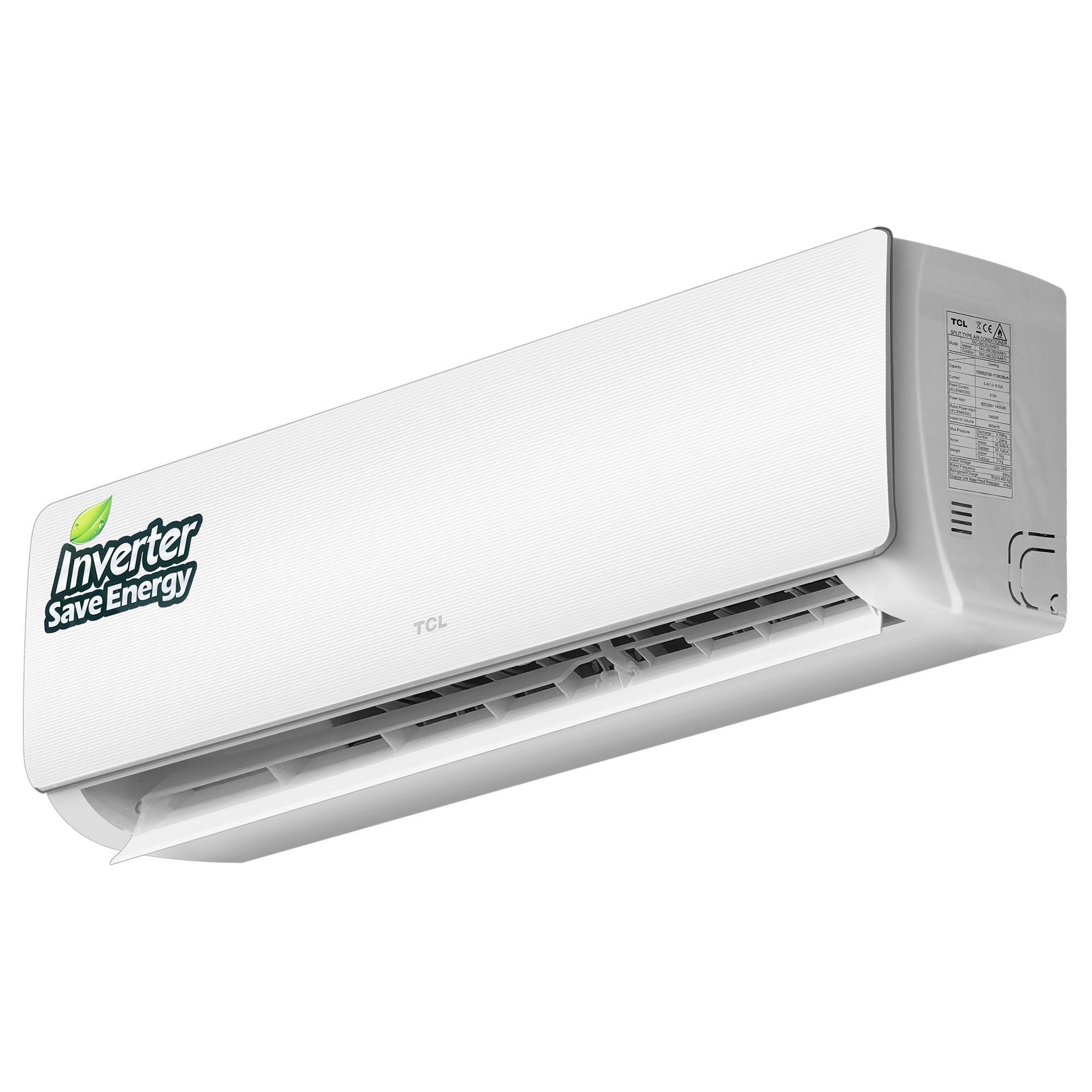

Indoor Unit:
Product Dimension: 777 x 201 x 250mm (30.6” x 7.9” x 9.8”)
Packing Dimension: 850 x 275 x 320mm (33.5” x 10.8” x 12.6”)
Net Weight: 7.5kg
Gross Weight: 10kg

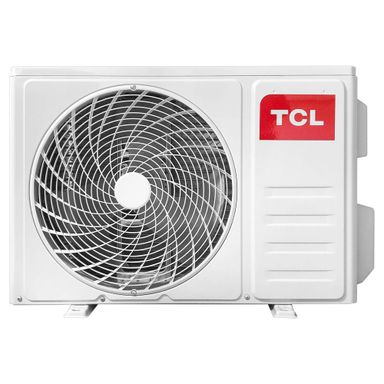

Outdoor Unit:
Product Dimension: 787 x 290 x 498mm (31” x 11.4” x 19.6”)
Packing Dimension: 818 x 325 x 520mm (32.2” x 12.8” x 20.5”)
Net Weight: 21kg
Gross Weight: 31kg

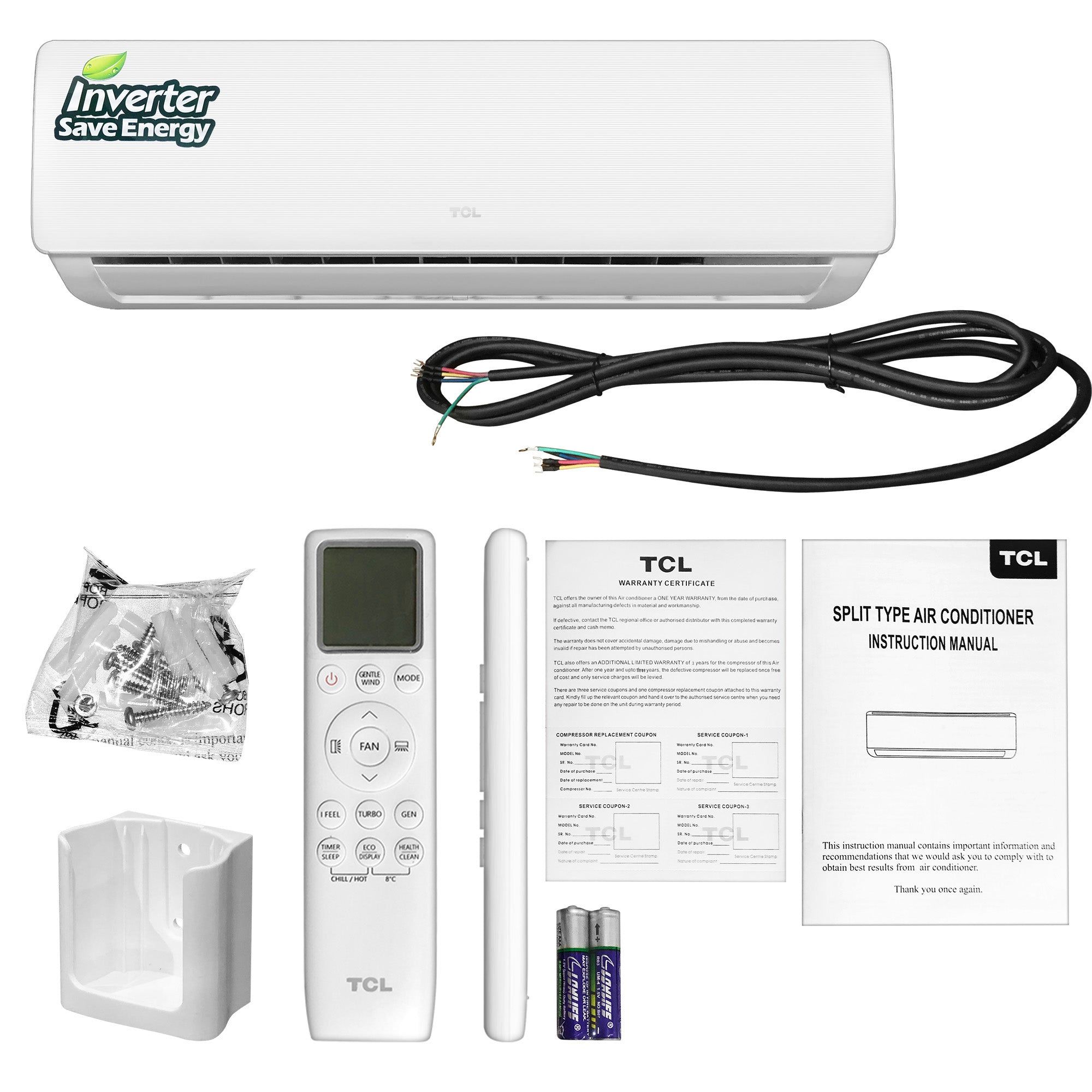

Packing Contents:
12k BTU Indoor Unit – x1
12ft. Electric wire – x1
Remote Control – x1
AAA Battery – x2
Wall Mount Remote Holder – x1
Screws with Plugs – x8
Warranty Certificate – x1
User Manual – x1
12k BTU Outdoor Unit – x1
1/4" Copper Tube (13ft.) – x1
3/8” Copper Tube (13ft.) – x1
Drainage Hose – x1
Wrapping Tape – x1
Insulation Sheath – x1
Plasticene RoHS – x1
SKU: 45474
