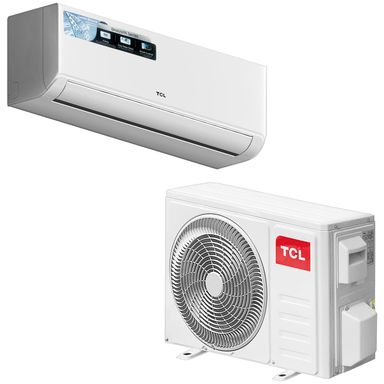

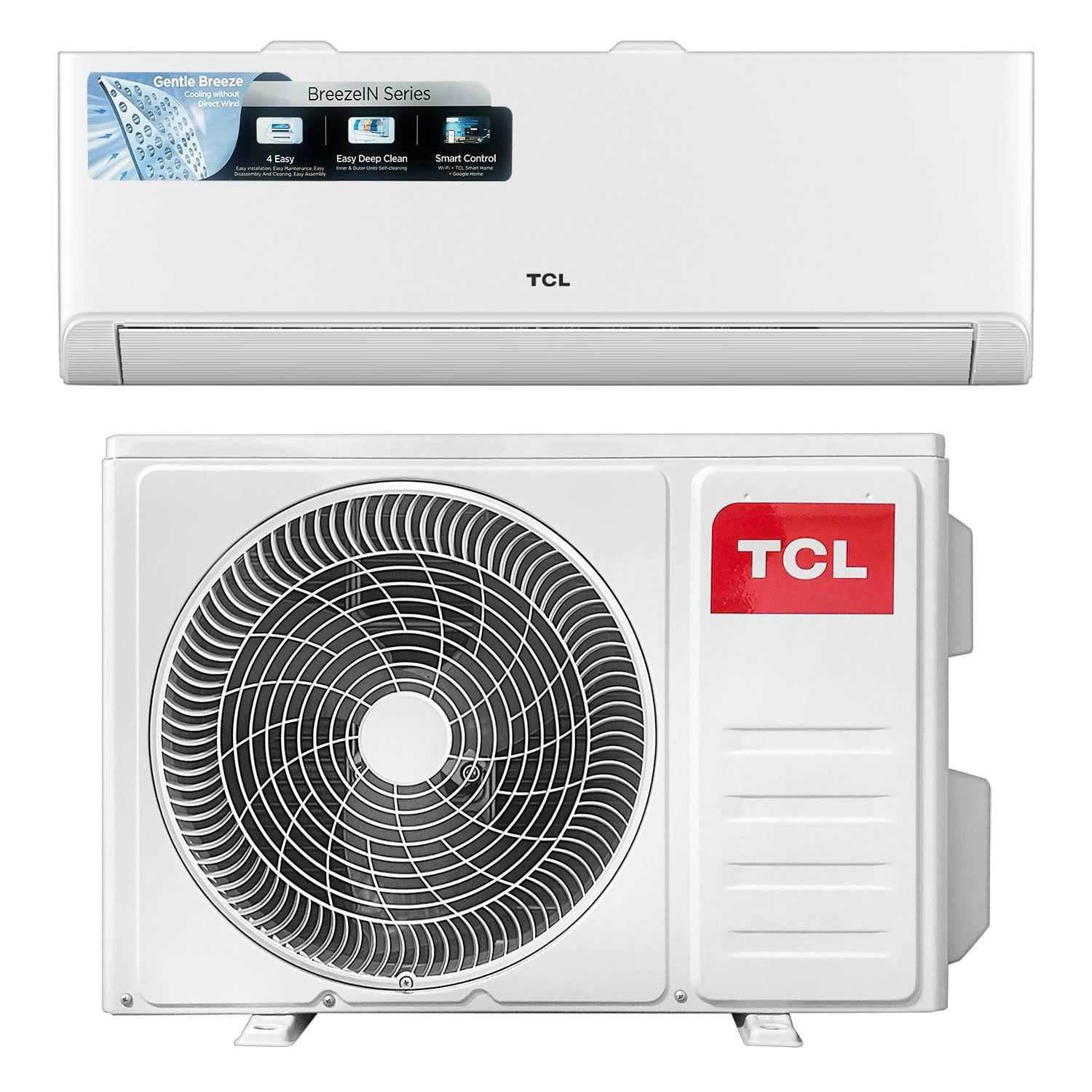

TCL - Air Conditioner (2400BTU)

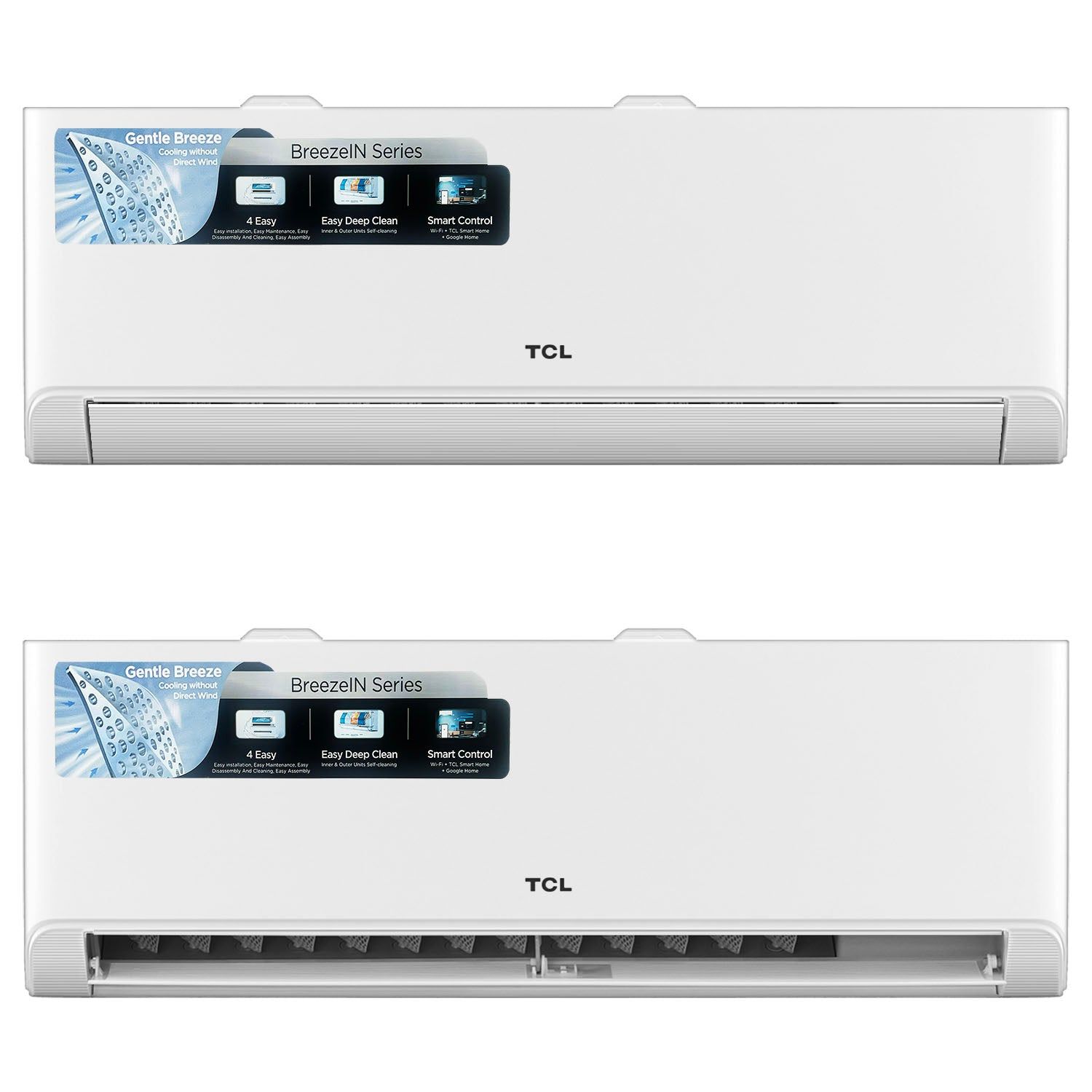

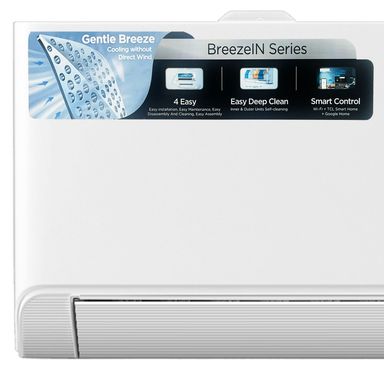

Inverter – BreezeIN Series
Brand: TCL
Model: TAC-25CSD
Capacity: 2400BTU
Type: Cooling Only
Control type: Remote & App
Rated Cooling Capacity (Btu/h): 24191 (5118 ~ 24566)
Rated Cooling Capacity (W): 7090 (1500 ~ 7200)
CSPF (Btu/h.w; W/W): 5.243

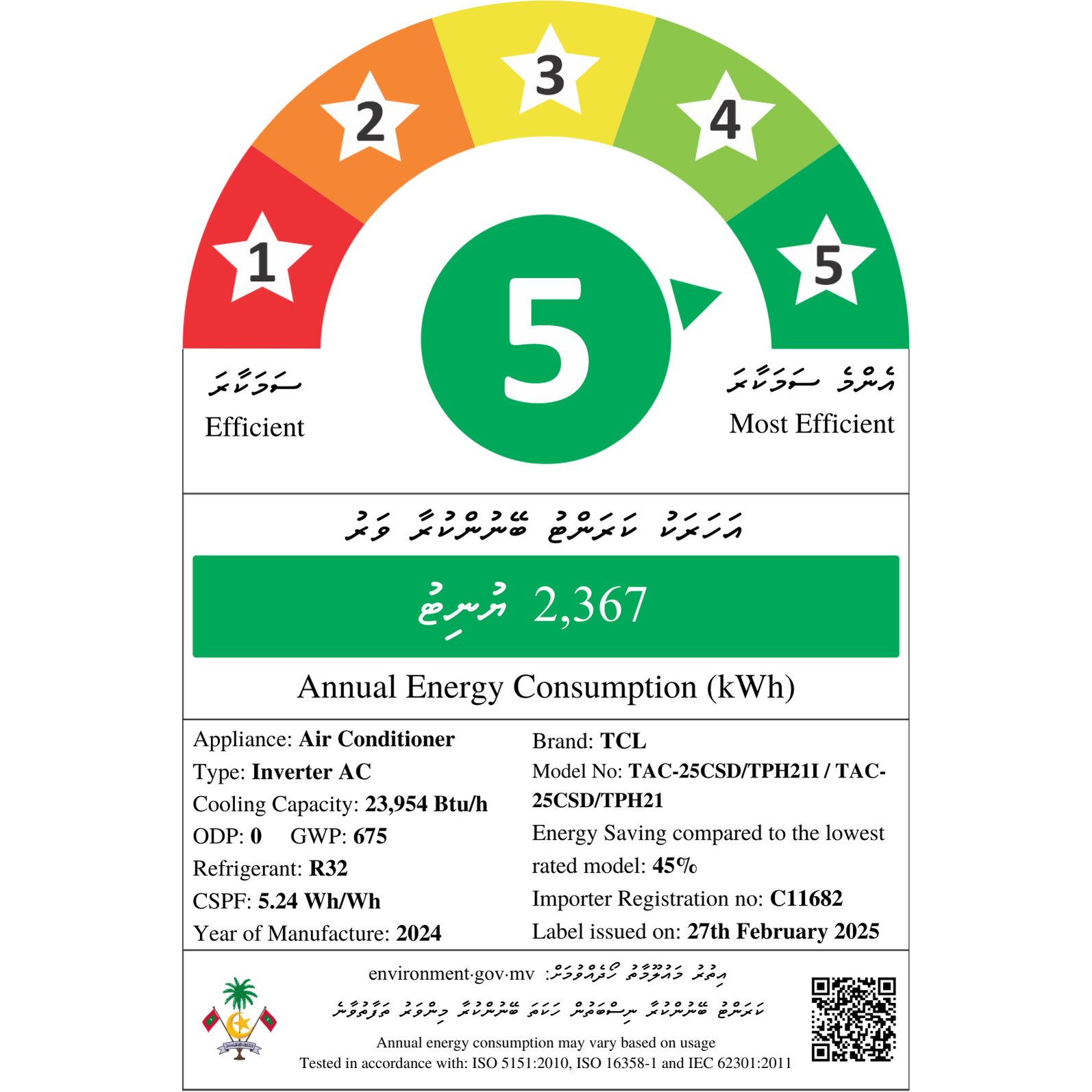

Star Rating: 5 Star
Moisture removal (Liters/h): 2
Indoor noise level at cooling (dB (A)):
High: 52
Med: 49
Low: 46
Outdoor noise level (dB (A)): 57
Warranty: 1 Year Warranty plus 5 Years Compressor Warranty
Power:
Power Supply: 220-240V~/50Hz/1P
Voltage Range: 165 ~ 265V
Rated current (Cooling): 10 (1.5~13) V
Rated input (Cooling): 2250 (200 ~ 2650) W
Max current: 13 A
Max input: 2650 W
Fan System:
Indoor air circulation Cooling (m3/h): 1300
Indoor fan type: Cross Flow
Outdoor fan type: Propeller Fan
Additional Specs:
Refrigerant/Charge: R32/0.75Kg
Compressor (Type): Rotary
Connecting Pipe:
Gas: Ø12 (1/2'')
Liquid: Ø6 (1/4'')
Connecting Wiring (Size x Core number): 4 x 0.75
Suitable area: 30-50 m2
Dimension & Weight:
Width x Depth x Height
Indoor Unit:
Product Dimension: 1097 x 222 x 332mm (43.2” x 8.7” x 13.1”)
Packing Dimension: 1165 x 295 x 405mm (45.9” x 11.6” x 15.9”)
Net Weight: 14kg
Gross Weight: 16kg
Outdoor Unit:
Product Dimension: 863 x 349 x 602mm (34” x 13.7” x 23.7”)
Packing Dimension: 890 x 385 x 628mm (35” x 15.2” x 24.7”)
Net Weight: 28kg
Gross Weight: 31kg

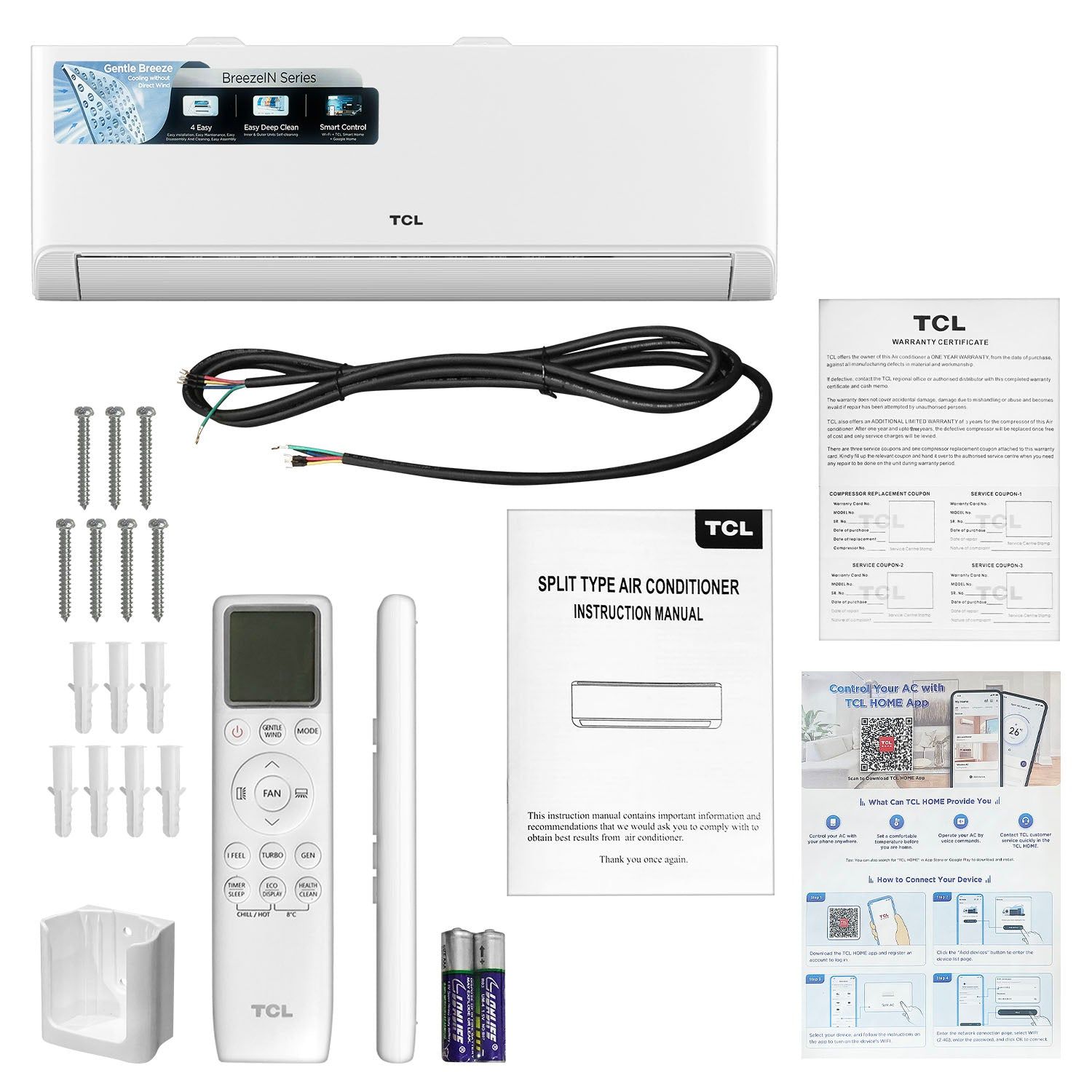

Packing Contents:
24k BTU Indoor Unit – x1
12ft. Electric wire – x1

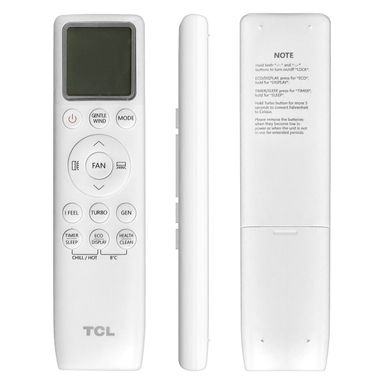

Remote Control – x1
AAA Battery – x2
Wall Mount Remote Holder – x1
Screws – x7
Wall Plugs – x7
App Control Manual – x1
Warranty Certificate – x1
User Manual – x1
24k BTU Outdoor Unit – x1
1/2" Copper Tube (13ft.) – x1
1/4” Copper Tube (13ft.) – x1
Drainage Hose – x1
Wrapping Roll – x1
Insulation Sheath – x1
Plasticene RoHS – x1
SKU: 58775
