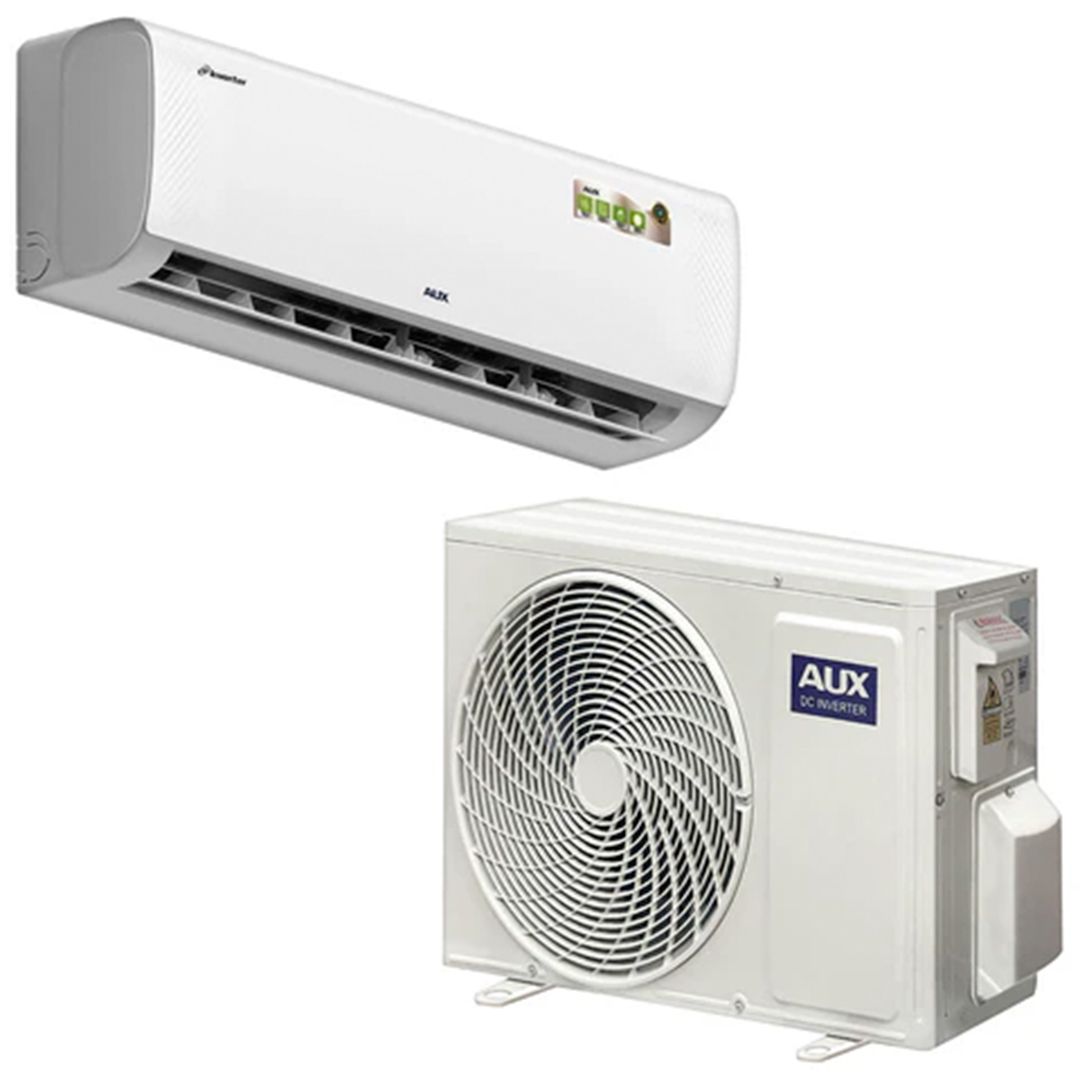

Aux – Air Conditioner (24000BTU)
Inverter – Wi-Fi Ready
Brand: Aux
Model: MASDC24QGR1
Capacity: 24000BTU
Color: White
Cooling:
Rated Capacity: 7034W
Rated Power Consumption: 2200W
Rated Running Current: 10.3A (1.0 – 11.5)
Max. Input Power: 2800W
Max. Input Current: 16A
EER Cooling: 3.02 W/W
EU Energy Rating: A+++
Power Supply Source: 220-240V/50Hz
Refrigerant: R32
Refrigerant charged: 1120g
Max. Discharge Pressure: 4.3 Mpa
Max. Suction Pressure: 2.5 Mpa
Air Flow Volume: 1300 m3/h
Warranty: 1 Year Warranty plus 5 Years Compressor Warranty
Indoor Unit:
Indoor Noise Level: 50 dB(A)
Evaporator:
Rows: 2
Tube pitch: 20.5
Tube Material: screws inside
Tube Thickness: 0.23mm
Tube Quantity: 16
Fin Material: hydrophilic foil
Fin Type: window
Fin Thickness: 0.095mm
Fin spacing: 1.4mm
Fan System:
Type: Crossflow
Material: AS
Connect pipe (length): 3m
Stop Valve:
Liquid valve: Dg4
Gas valve: Dg13
Outdoor Unit:
Outdoor Noise Level: 58 dB(A)
Type: Rotary
Fan:
Type: Axis flow
Vane Number: -
Blade Material: AS
Motor: D-65-10L
Condenser:
Row: 2
Tube Material: screws inside
Tube Quantity: 30
Fin Material: hydrophilic foil
Fin Type: window
Fin spacing: 1.3mm
Dimension & Weight:
Width x Depth x Height
Indoor Unit:
Product Dimension: 1089 x 227 x 328mm (42.9” x 8.9” x 12.9”)
Packing Dimension: 1155 x 312 x 397mm (45.5” x 12.3” x 15.6”)
Net Weight: 12.5kg
Gross Weight: -
Outdoor Unit:
Product Dimension: 900 x 350 x 700mm (35.4” x 13.8” x 27.6”)
Packing Dimension: 1020 x 430 x 770mm (40.2” x 16.9” x 30.3”)
Net Weight: 40kg
Gross Weight: -

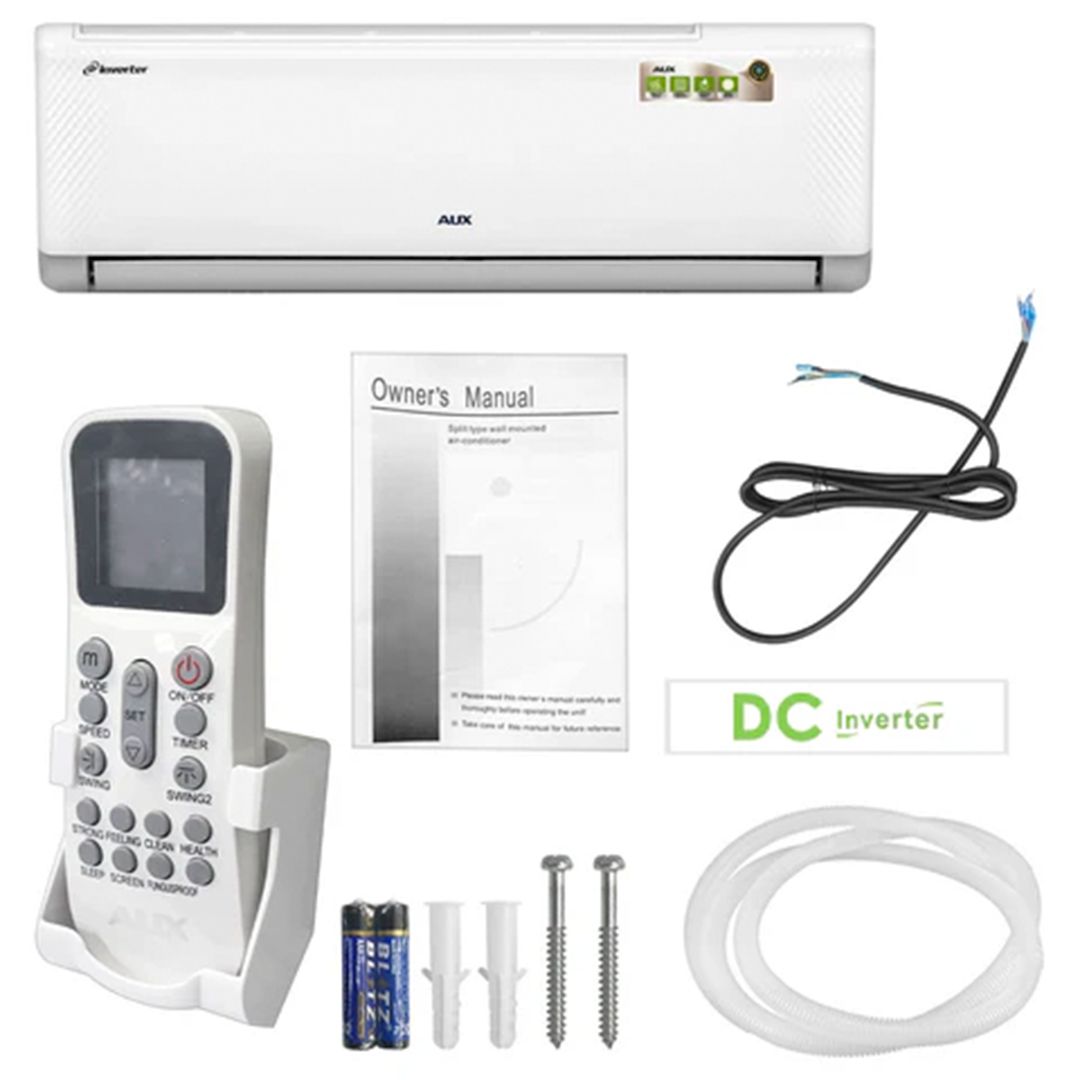

Packing Contents:
24k BTU Indoor Unit – x1
Remote Control – x1
Remote Holder (Wall-Mount) – x1
Screws with Plugs – x2
AA Battery – x2
Electric Wire – x1
Drainage Hose – x1
User Manual – x1
24k BTU Outdoor Unit – x1
1/4" Insulated Copper Tube – x1
5/8” Insulated Copper Tube – x1
Clay – x1
Wall Hole Cover – x1
Wrapping Roll – x1
SKU: 52227
