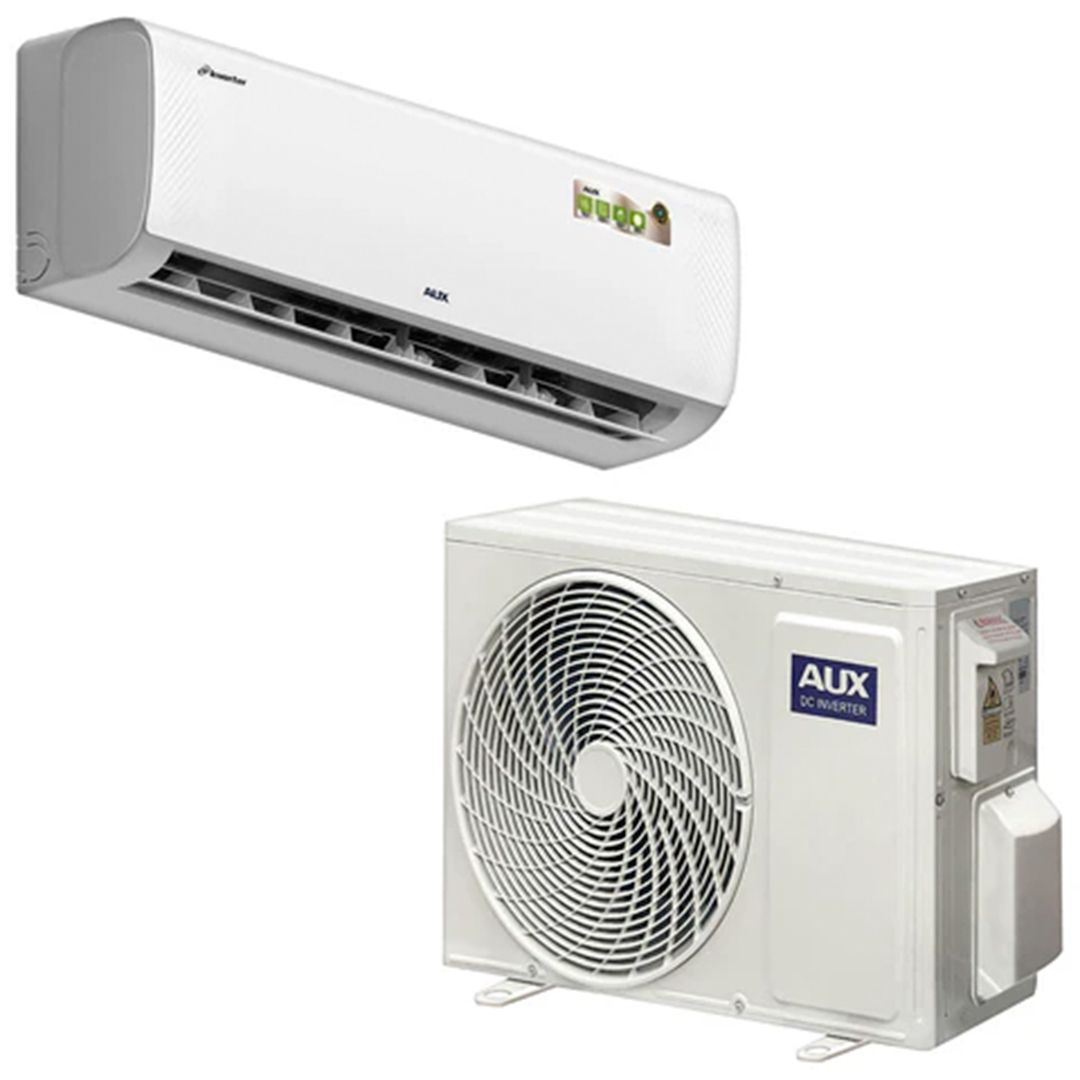

Aux – Air Conditioner (18000BTU)
Inverter – Wi-Fi Ready
Brand: Aux
Model: MASDC18QGR1-Q-Smart
Capacity: 18000BTU
Color: White
Cooling:
Rated Capacity: 5300W (1300 – 5300W)
Rated Power Consumption: 1760W (240 – 1900W)
Rated Running Current: 8.3A (2.3 – 9A)
Max. Input Power: 1900W
Max. Input Current: 9A
EER Cooling: 3.01 W/W
EU Energy Rating: A++
Power Supply Source: 208-230V/60Hz & 220-240V/50Hz
Refrigerant: R32
Refrigerant charged: 690g
Max. Discharge Pressure: 4.3 Mpa
Max. Suction Pressure: 2.5 Mpa
Air Flow Volume: 850 m3/h
Warranty: 1 Year Warranty plus 5 Years Compressor Warranty
Indoor Unit:
Indoor Noise Level: 47 dB(A)
Evaporator:
Rows: 2
Tube pitch: 19.05
Tube Material: screws inside
Tube Thickness: 0.2mm
Tube Quantity: 17
Fin Material: hydrophilic foil
Fin Type: window
Fin Thickness: 0.095mm
Fin spacing: 1.3mm
Fan System:
Type: Crossflow
Material: AS
Connect pipe (length): 3m
Stop Valve:
Liquid valve: Dg4
Gas valve: Dg10
Outdoor Unit:
Outdoor Noise Level: 52 dB(A)
Type: Rotary
Fan:
Type: Axis flow
Vane Number: -
Blade Material: AS
Motor: D-35-10L 310V
Condenser:
Row: 1
Tube Material: copper
Tube Quantity: 26
Fin Material: hydrophilic foil
Fin Type: window
Fin spacing: 1.4mm
Dimension & Weight:
Width x Depth x Height
Indoor Unit:
Product Dimension: 960 x 212 x 316mm (37.8” x 8.3” x 12.4”)
Packing Dimension: 1020 x 307 x 377mm (40.2” x 12” x 14.8”)
Net Weight: 11kg
Gross Weight: 14kg
Outdoor Unit:
Product Dimension: 709 x 285 x 535mm (27.9” x 11.2” x 21.1”)
Packing Dimension: 825 x 345 x 595mm (32.5” x 13.6” x 23.4”)
Net Weight: 23kg
Gross Weight: 27kg

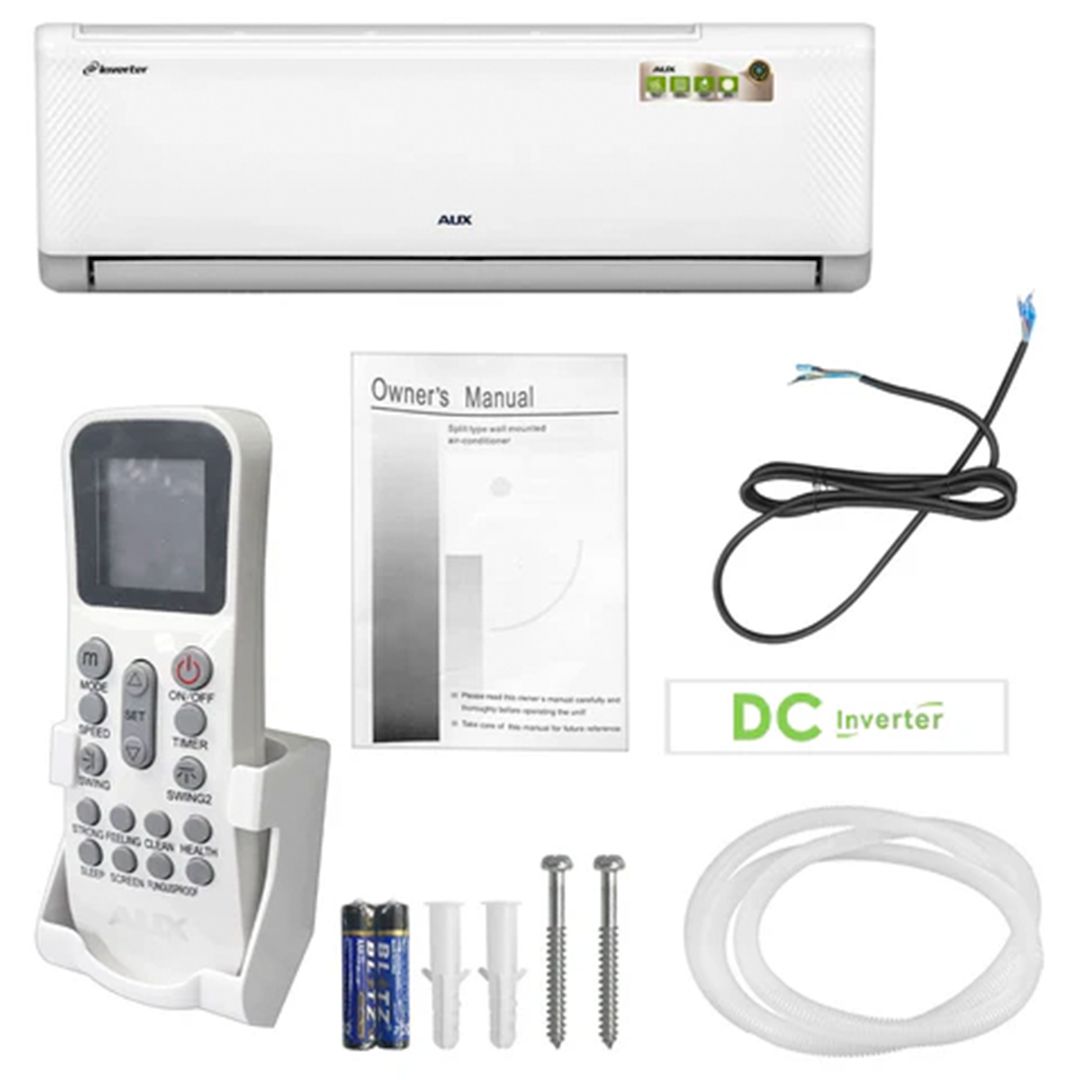

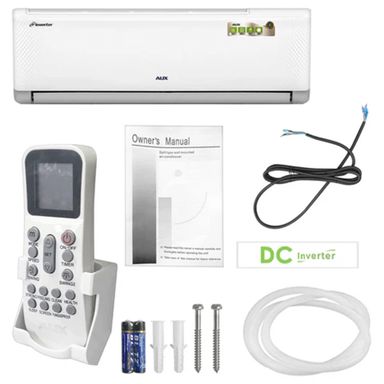

Packing Contents:
18k BTU Indoor Unit – x1
Remote Control – x1
Remote Holder (Wall-Mount) – x1
Screws with Plugs – x2
AA Battery – x2
Electric Wire – x1
Drainage Hose – x1
User Manual – x1
18k BTU Outdoor Unit – x1
1/4" Insulated Copper Tube – x1
1/2” Insulated Copper Tube – x1
Clay – x1
Wall Hole Cover – x1
Wrapping Roll – x1
SKU: 52044
