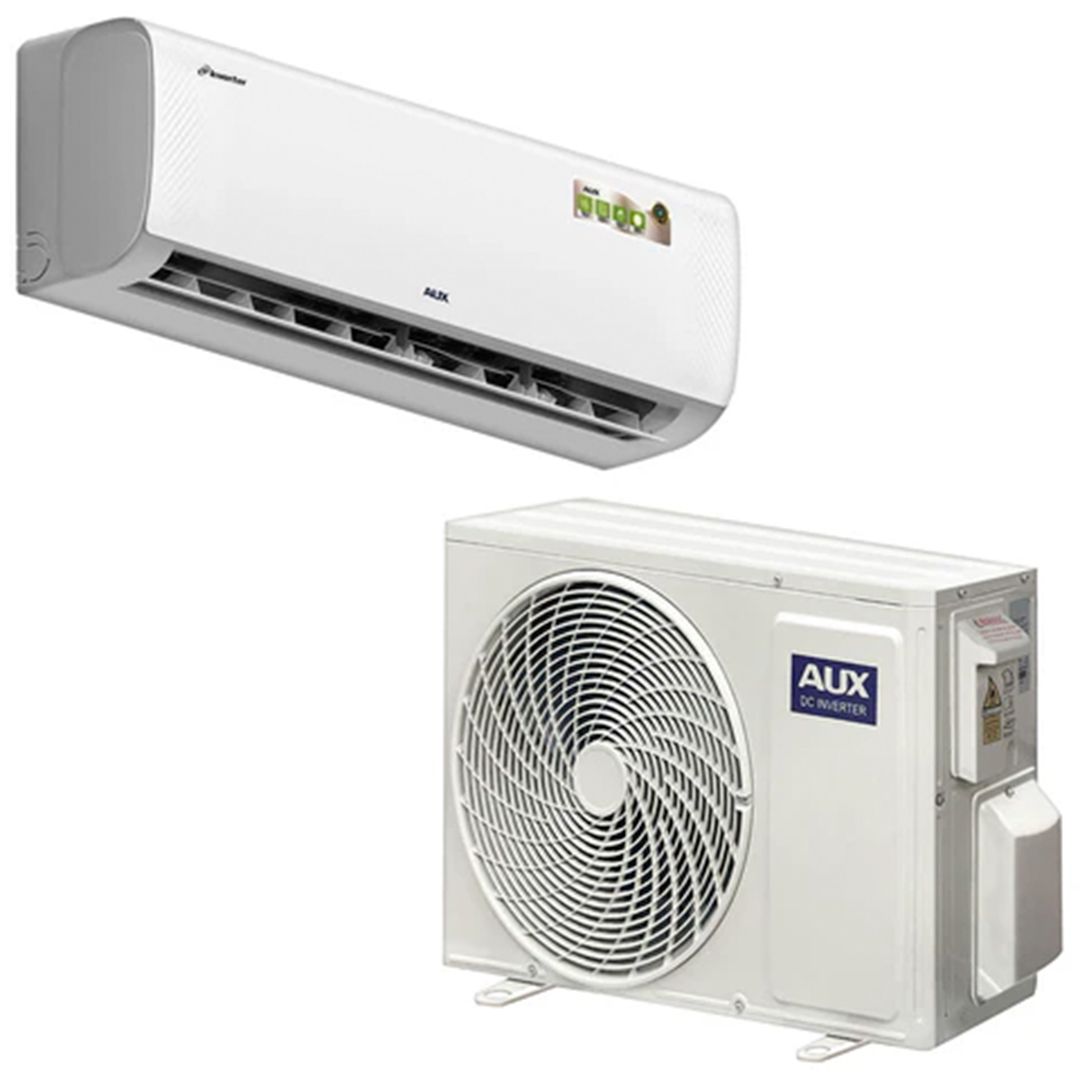

Aux – Air Conditioner (12000BTU)
Inverter – Wi-Fi Ready
Brand: Aux
Model: MASDC12QGR1
Capacity: 12000BTU
Color: White
Cooling:
Rated Capacity: 3500W (800 - 4000W)
Rated Power Consumption: 1180W (400 – 1600W)
Rated Running Current: 5.6A (1.7 – 7.1A)
Max. Input Power: 1600W
Max. Input Current: 8A
EER Cooling: 2.97 W/W
EU Energy Rating: A++
Power Supply Source: 220 ~ 240V - 1Ph - 50Hz
Refrigerant: R32
Refrigerant charged: 400g
Max. Discharge Pressure: 4.3 Mpa
Max. Suction Pressure: 2.5 Mpa
Air Flow Volume: 600 m3/h
Warranty: 1 Year Warranty plus 5 Years Compressor Warranty
Indoor Unit:
Indoor Noise Level: 41 dB(A)
Evaporator:
Rows: 2
Tube pitch: 19.05
Tube Material: screws inside
Tube Thickness: 0.2mm
Tube Quantity: 16
Fin Material: hydrophilic foil
Fin Type: window
Fin Thickness: 0.094mm
Fin spacing: 1.3mm
Fan System:
Type: Crossflow
Material: AS
Connect pipe (length): 3m
Stop Valve:
Liquid valve: 0.25
Gas valve: 0.375
Outdoor Unit:
Outdoor Noise Level: 52 dB(A)
Type: Rotary
Fan:
Type: Axis flow
Vane Number: 3
Blade Material: AS
Motor: D-20-10A
Condenser:
Row: 1
Tube Material: screws inside
Tube Quantity: 11
Fin Material: hydrophilic foil
Fin Type: window
Fin spacing: 1.3mm
Dimension & Weight:
Width x Depth x Height
Indoor Unit:
Product Dimension: 761 x 200 x 295mm (30” x 7.9” x 11.6”)
Packing Dimension: 825 x 277 x 367mm (32.5” x 10.9” x 14.4”)
Net Weight: 8kg
Gross Weight: 11kg
Outdoor Unit:
Product Dimension: 703 x 260 x 456mm (27.7” x 10.2” x 18”)
Packing Dimension: 760 x 305 x 510mm (29.9” x 12” x 20.1”)
Net Weight: 17kg
Gross Weight: 20.5kg
Packing Contents:
12k BTU Indoor Unit – x1
Remote Control – x1
Remote Holder (Wall-Mount) – x1
Screws with Plugs – x2
AA Battery – x2
Electric Wire – x1
Drainage Hose – x1
User Manual – x1
12k BTU Outdoor Unit – x1
1/4" Insulated Copper Tube – x1
3/8” Insulated Copper Tube – x1
Clay – x1
Wall Hole Cover – x1
Wrapping Roll – x1
SKU: 52043
