Aux – Air Conditioner (9000BTU)
Inverter – Wi-Fi Ready
Brand: Aux
Model: MASDC09QGR1-Q-Smart
Capacity: 9000BTU
Color: White
Cooling:
Rated Capacity: 2640W (600 – 3200W)
Rated Power Consumption: 820W (400 – 1400W)
Rated Running Current: 3.9A (1.7 – 6.1A)
Max. Input Power: 1600W
Max. Input Current: 8A
EER Cooling: 3.22 W/W
EU Energy Rating: A+++
Power Supply Source: 220-240V – 1PH – 50Hz
Refrigerant: R32
Refrigerant charged: 400g
Max. Discharge Pressure: 4.3 Mpa
Max. Suction Pressure: 2.5 Mpa
Air Flow Volume: 540 m3/h
Warranty: 1 Year Warranty plus 5 Years Compressor Warranty
Indoor Unit:
Indoor Noise Level: 40 dB(A)
Evaporator:
Rows: 2
Tube pitch: 20.5
Tube Material: screws inside
Tube Thickness: 0.25mm
Tube Quantity: 10
Fin Material: hydrophilic foil
Fin Type: window
Fin Thickness: 0.095mm
Fin spacing: 1.3mm
Fan System:
Type: Crossflow
Material: AS
Connect pipe (length): 3m
Stop Valve:
Liquid valve: 0.25 (1/4”)
Gas valve: 0.375 (3/8”)
Outdoor Unit:
Outdoor Noise Level: 51 dB(A)
Type: Rotary
Fan:
Type: Axis flow
Vane Number: 3
Blade Material: AS
Motor: D-20-10A
Condenser:
Row: 1
Tube Material: screws inside
Tube Quantity: 11
Fin Material: hydrophilic foil
Fin Type: window
Fin spacing: 1.3mm

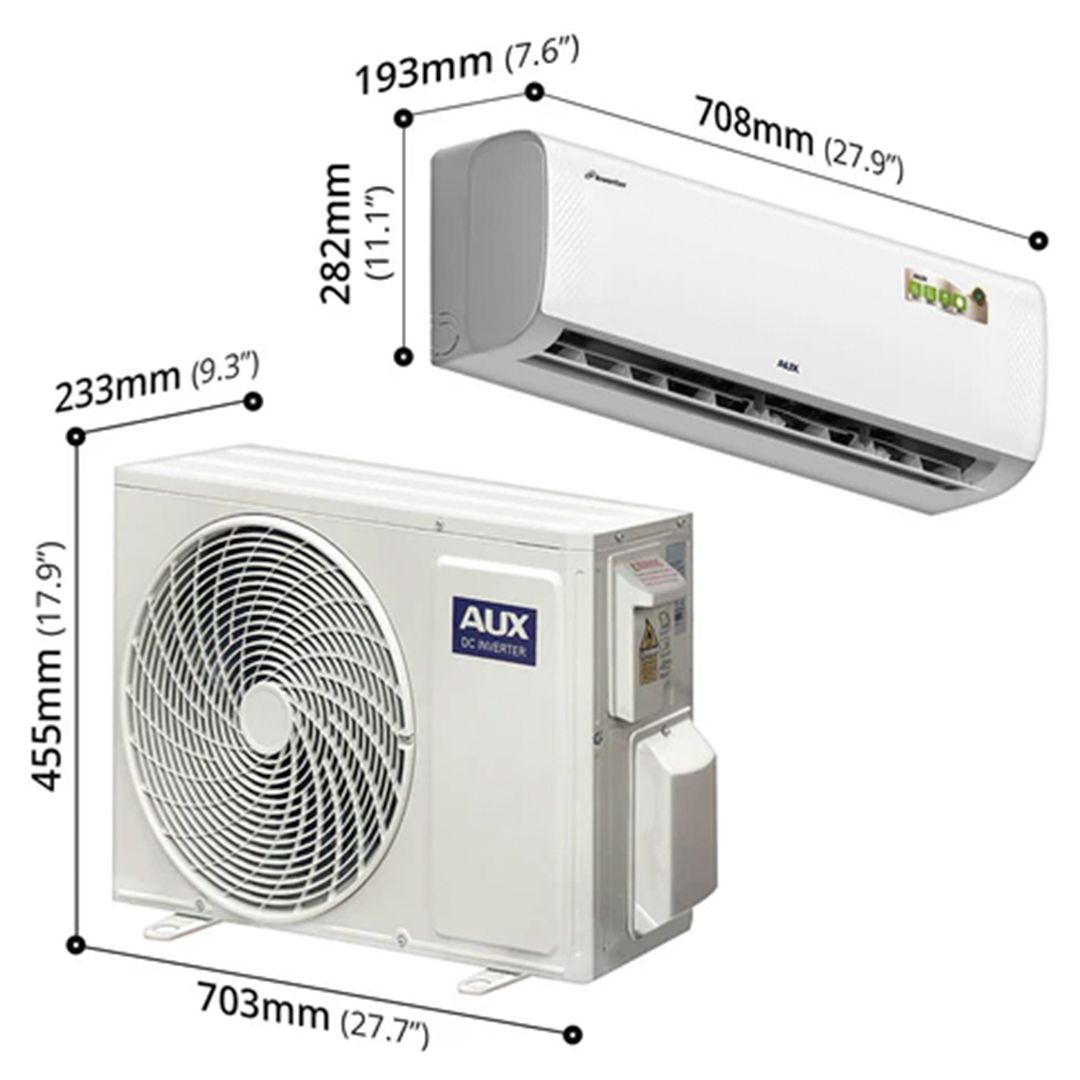

Dimension & Weight:
Width x Depth x Height
Indoor Unit:
Product Dimension: 708 x 193 x 282mm (27.9” x 7.6” x 11.1”)
Packing Dimension: 765 x 269 x 351mm (30.1” x 10.6” x 13.8”)
Net Weight: 7kg
Gross Weight: 10kg
Outdoor Unit:
Product Dimension: 703 x 233 x 455mm (27.7” x 9.3” x 17.9”)
Packing Dimension: 760 x 305 x 510mm (29.9” x 12” x 20.1”)
Net Weight: 17kg
Gross Weight: 20.5kg

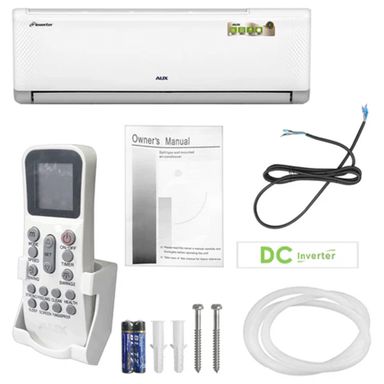

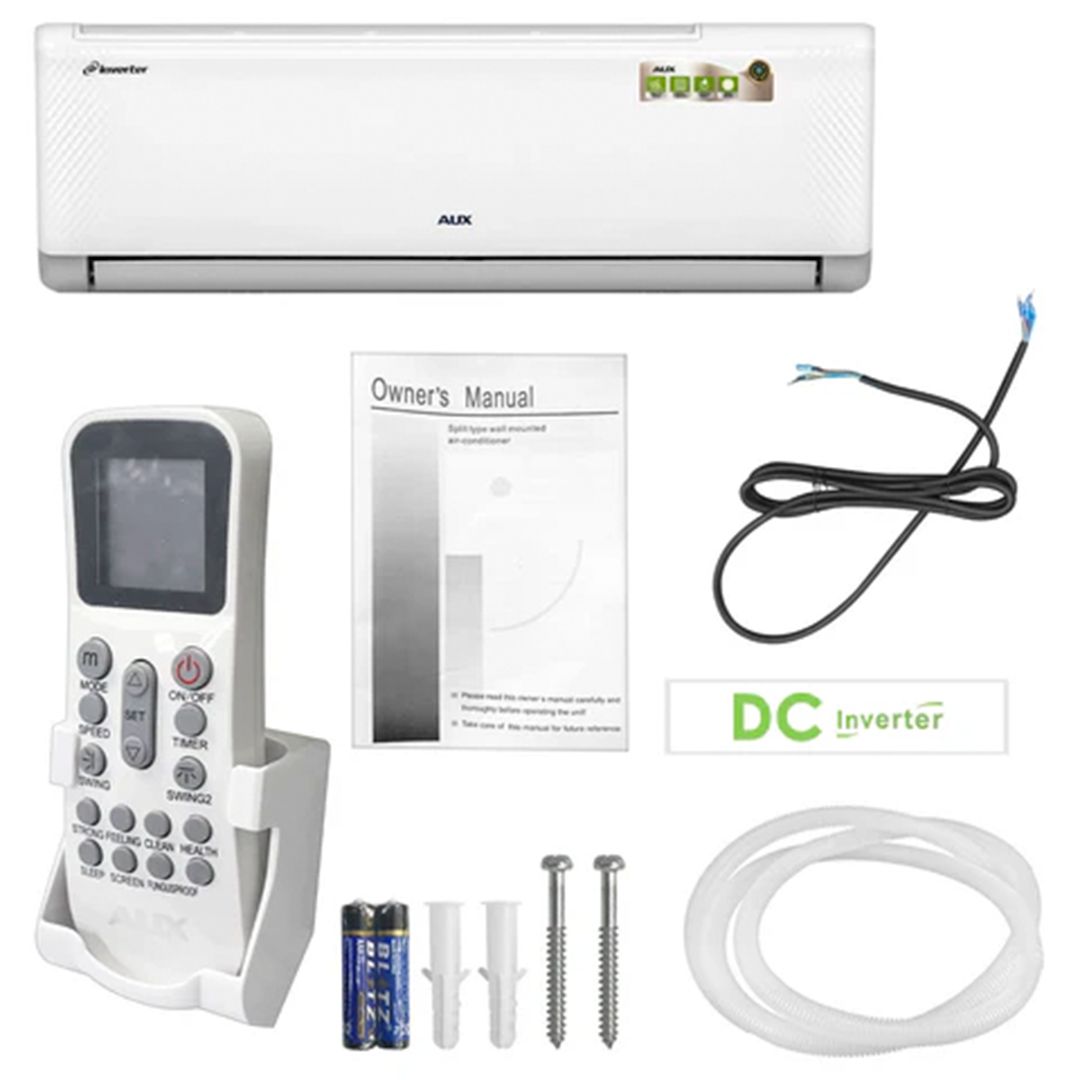

Packing Contents:
9k BTU Indoor Unit – x1
Remote Control – x1
Remote Holder (Wall-Mount) – x1
Screws with Plugs – x2
AA Battery – x2
Electric Wire – x1
Drainage Hose – x1
User Manual – x1
9k BTU Outdoor Unit – x1
1/4" Insulated Copper Tube – x1
3/8” Insulated Copper Tube – x1
Clay – x1
Wall Hole Cover – x1
Wrapping Roll – x1
SKU: 52042
