NOTE:
Untuk pemasangan bilamana rusak ditanggung oleh pembeli,
Evolve telah mengeluarkan chip dengan standar produksi (quality control)
"" DIY Chip Board memiliki resiko pemasangan harap mengerti ''''
Terima kasih.
Lakukan video unboxing agar memudahkan agan untuk komplain, Tanpa video unboxing, mohon maaf , komplain akan kami tolak.
Tolong buat video unboxing dari awal sampai akhir tanpa edit/potong video.
Sebelum di buka paket nya, agan videokan kondisi paket yang agan terima dari kurir, dari awal sampai akhir.
Buka paket sambil di videokan. dan vidieokan semua produk yg ada di dalam paket pembelian agan. Cek satu satu detail semua sisi nya, dan lakukan test nyala produk yang agan beli sampai akhir video.

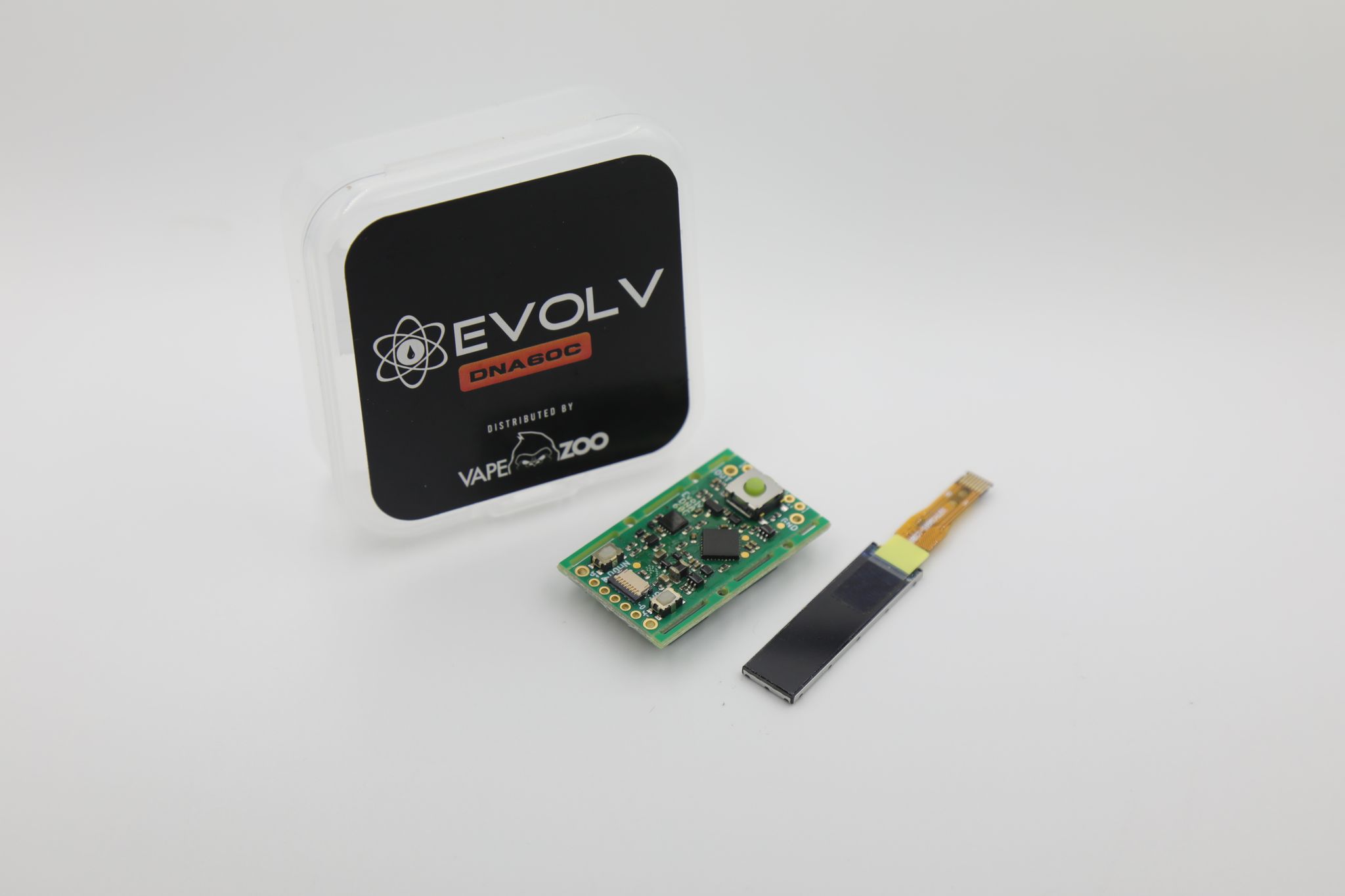

* DNA Boards Evolv DNA 60 Color
We’ve finally updated the modder’s favorite board with the DNA 60c. The 60c brings some new updates and features that vapers and modders have requested
* A color TFT screen that displays the battery level, wattage, coil temperature, resistance, and more. The screen layout can also be customized using EScribe.
* Replay functionality which allows you to save and replay your favorite puff and as a bonus prevents the coil from overheating.
* A USB-C charge board (AVAILABLE SEPARATELY) that supports 2A fast charging, which can charge your device faster and more efficiently.
* Supports a single cell lithium polymer battery that can be either removable or built-in. The battery can be recharged via the USB port or an external charger.
* An output power range from 1 to 60 watts, and can handle resistances from 0.1 ohm to 3.0 ohm.
* Supports temperature control for Ni200, Ti, SS, and custom wire types and custom profiles like the other color DNA boards.

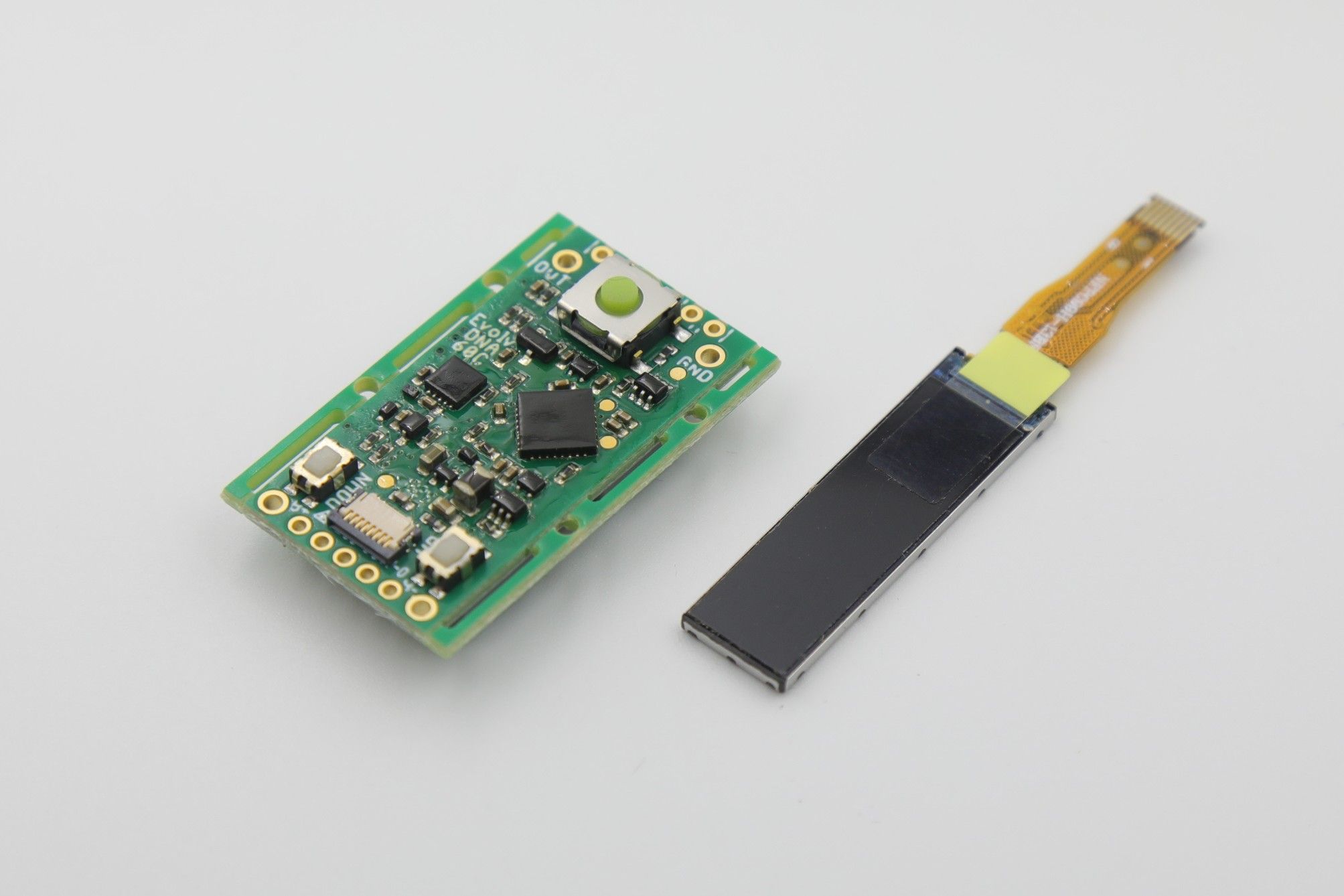

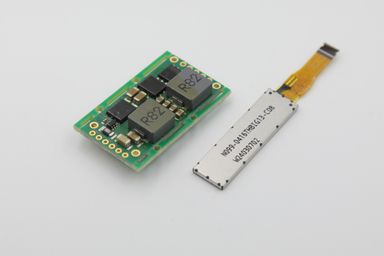

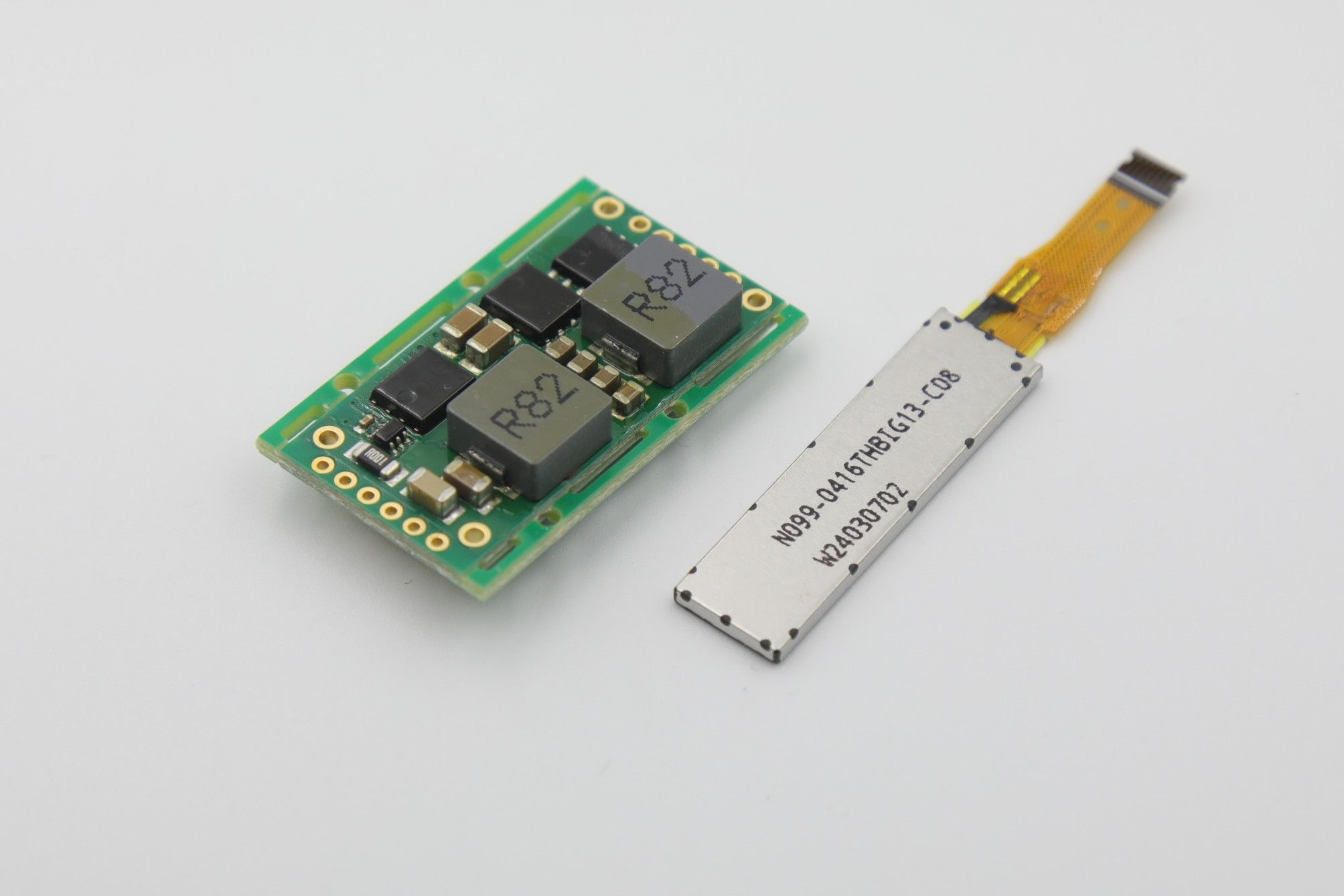

The DNA 60C has a small .99” diagonal 40x160 color TFT screen. The screen is attached to the
main board by a flexible cable, allowing freedom in the design of your device. The screen’s default
position is on top of the board, between the fire and adjust buttons. This allows for easy assembly. The
screen connects to the board with a ZIF connector, so alternate placement is possible. It is also possible
to order screens with custom length and shape flexible cables, allowing screen placement anywhere in
the device. Please use caution when handling the screen and design the device so that the cable will be
secured or strain relieved in operaton.

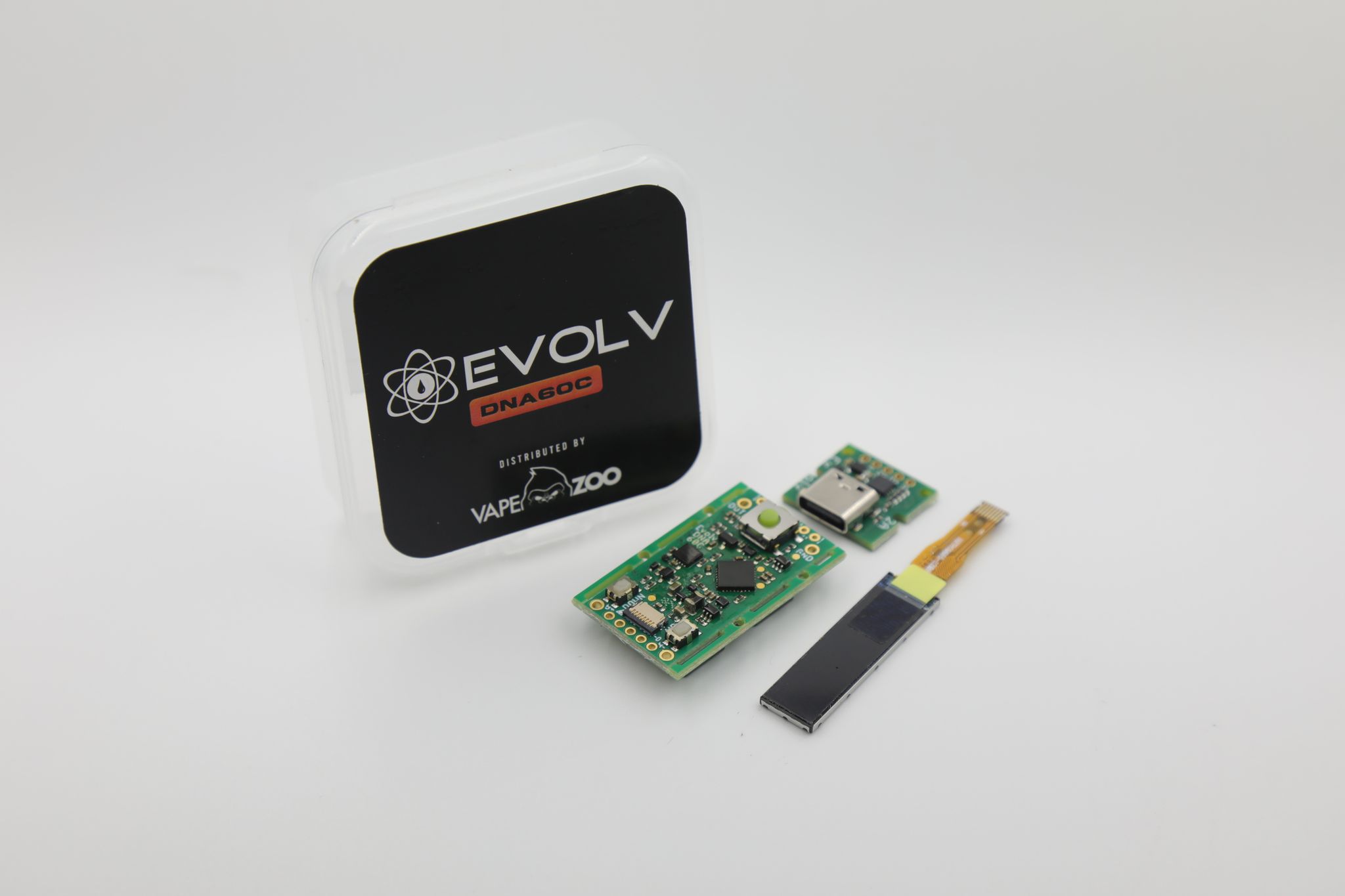

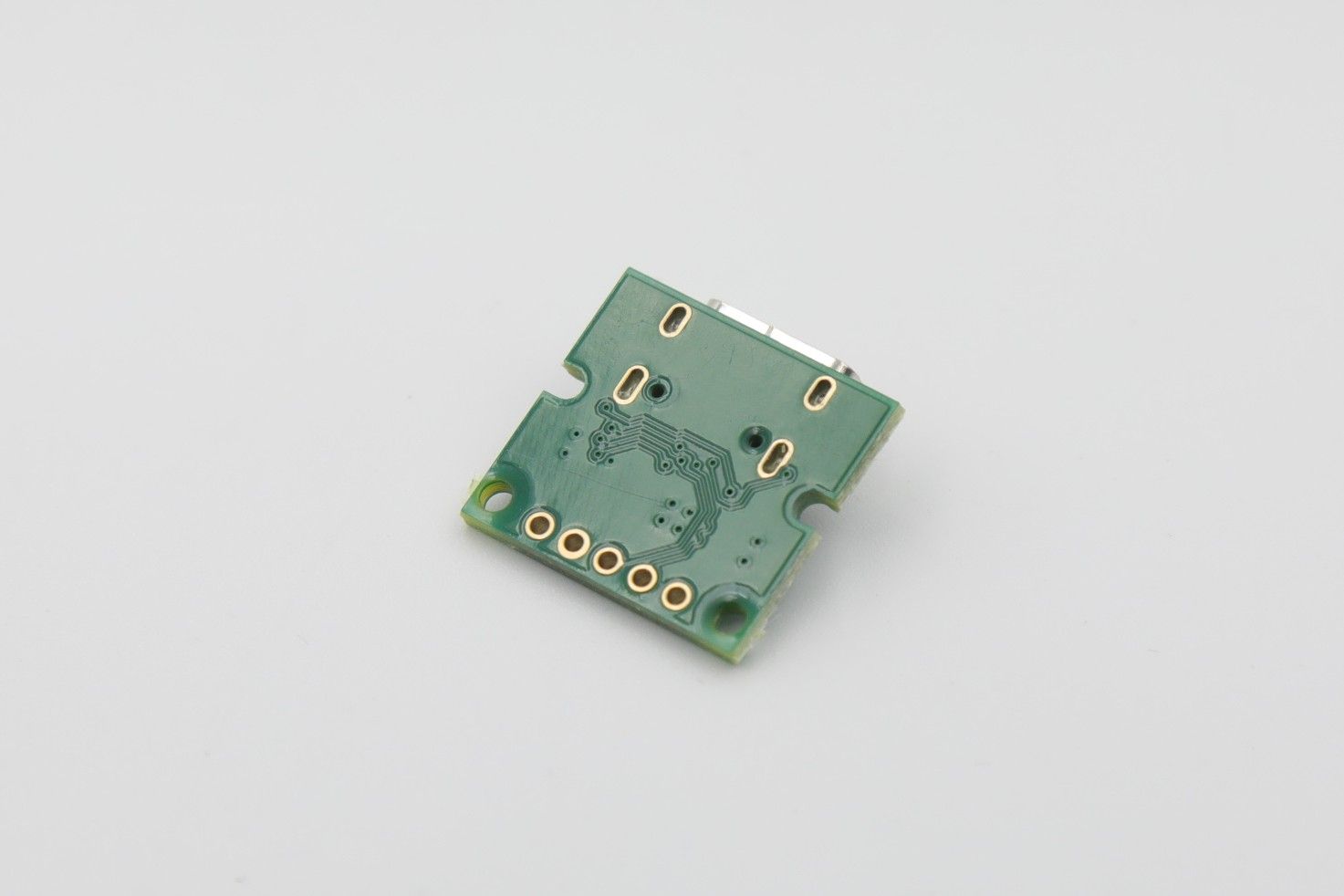

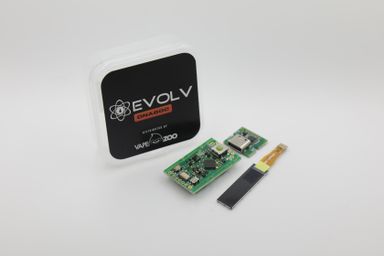

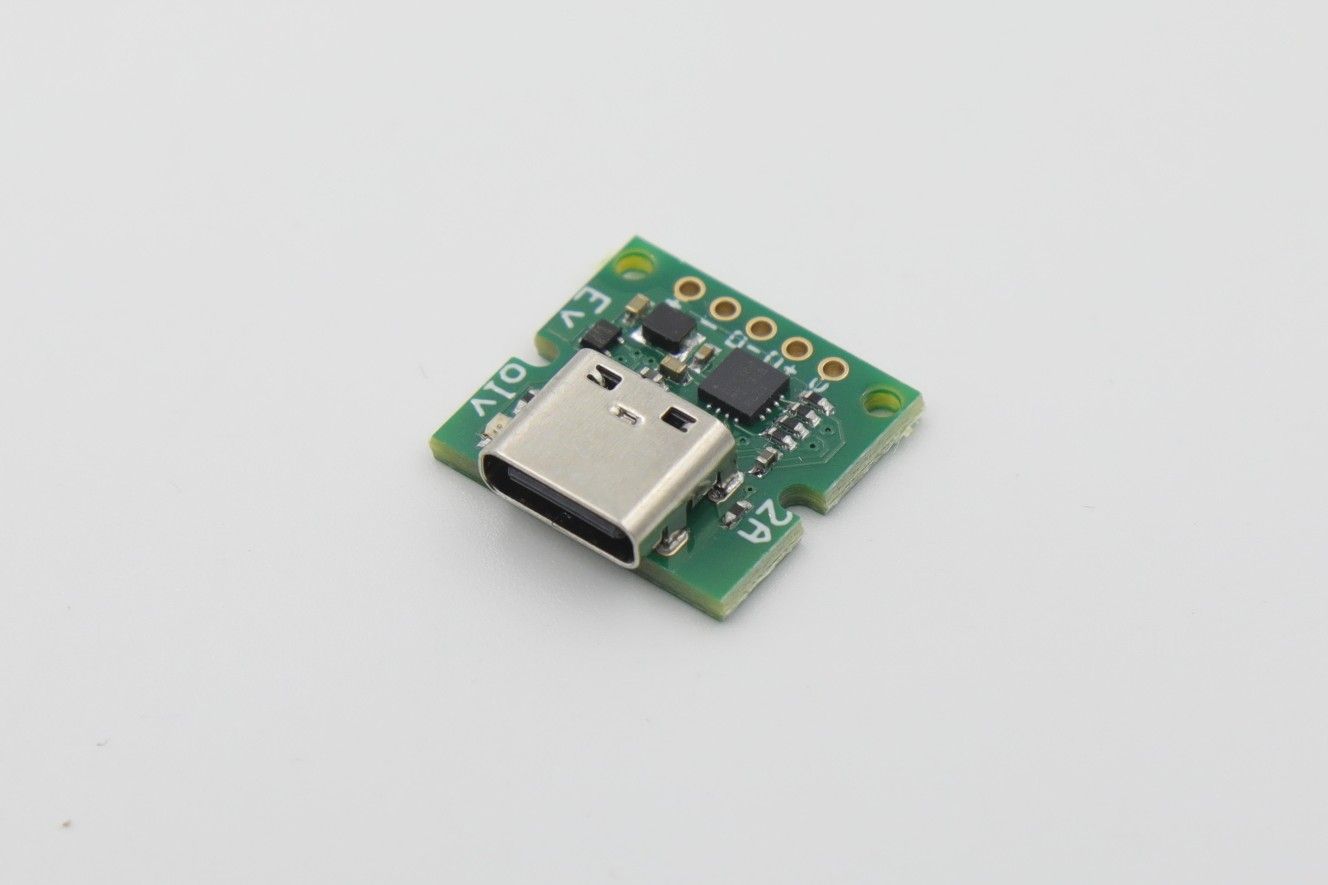

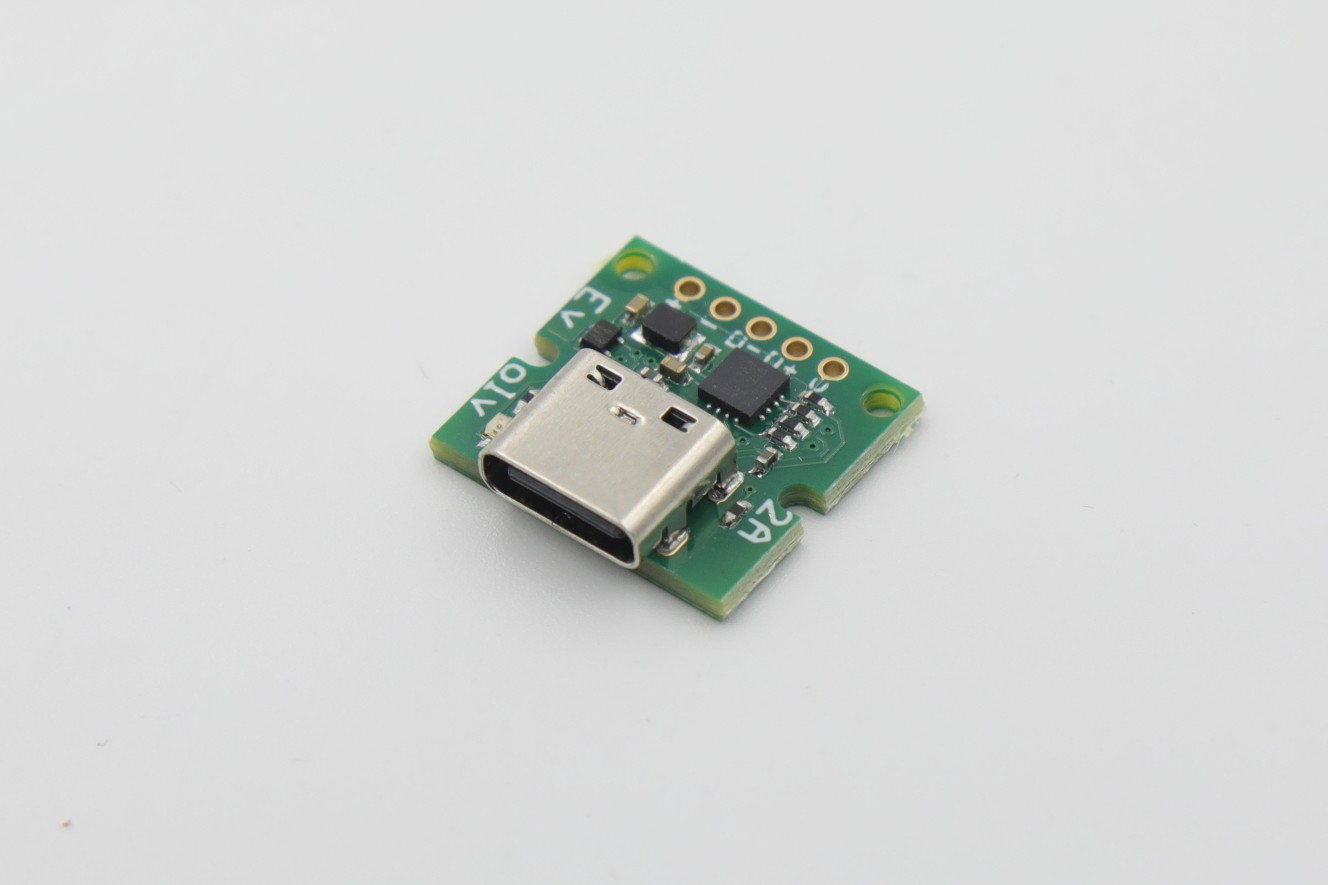

* Evolv 2A USB-C Data/Charging Board
This is Evolv’s DNA 60c compatible charge board, capable of up to 2 amp charging, includes data lines for connection to eScribe-compatible boards. Indicator lights RED when charging, and turns OFF when fully charged or disconnected from a battery.
Evolv Escribe Software can be found here.
https://www.evolvapor.com/escribeSKU: 45AC800001
