Our product can be used in various microelectronics projects By you. It is suitable for both beginners and advanced users. Bring some movement into your home!

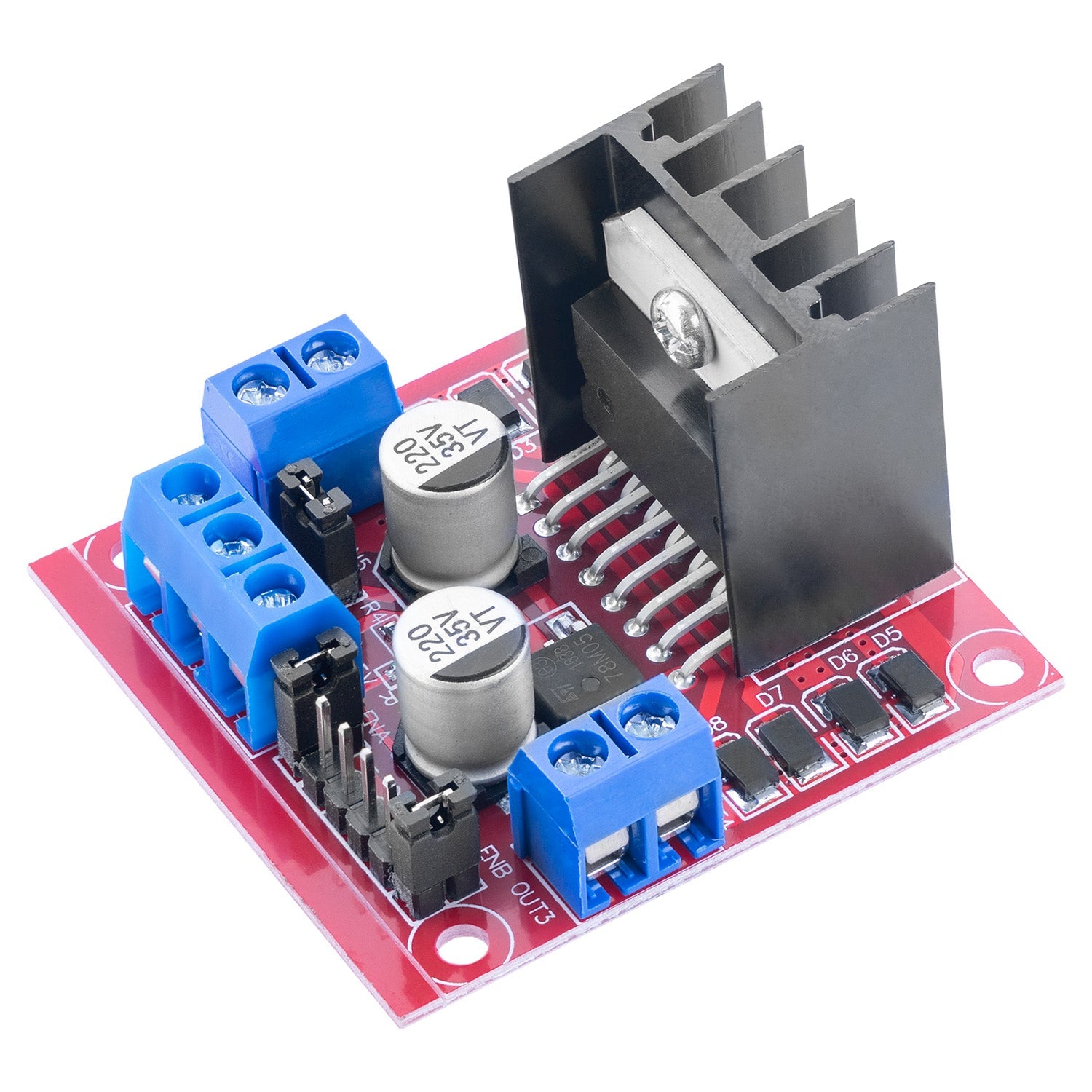

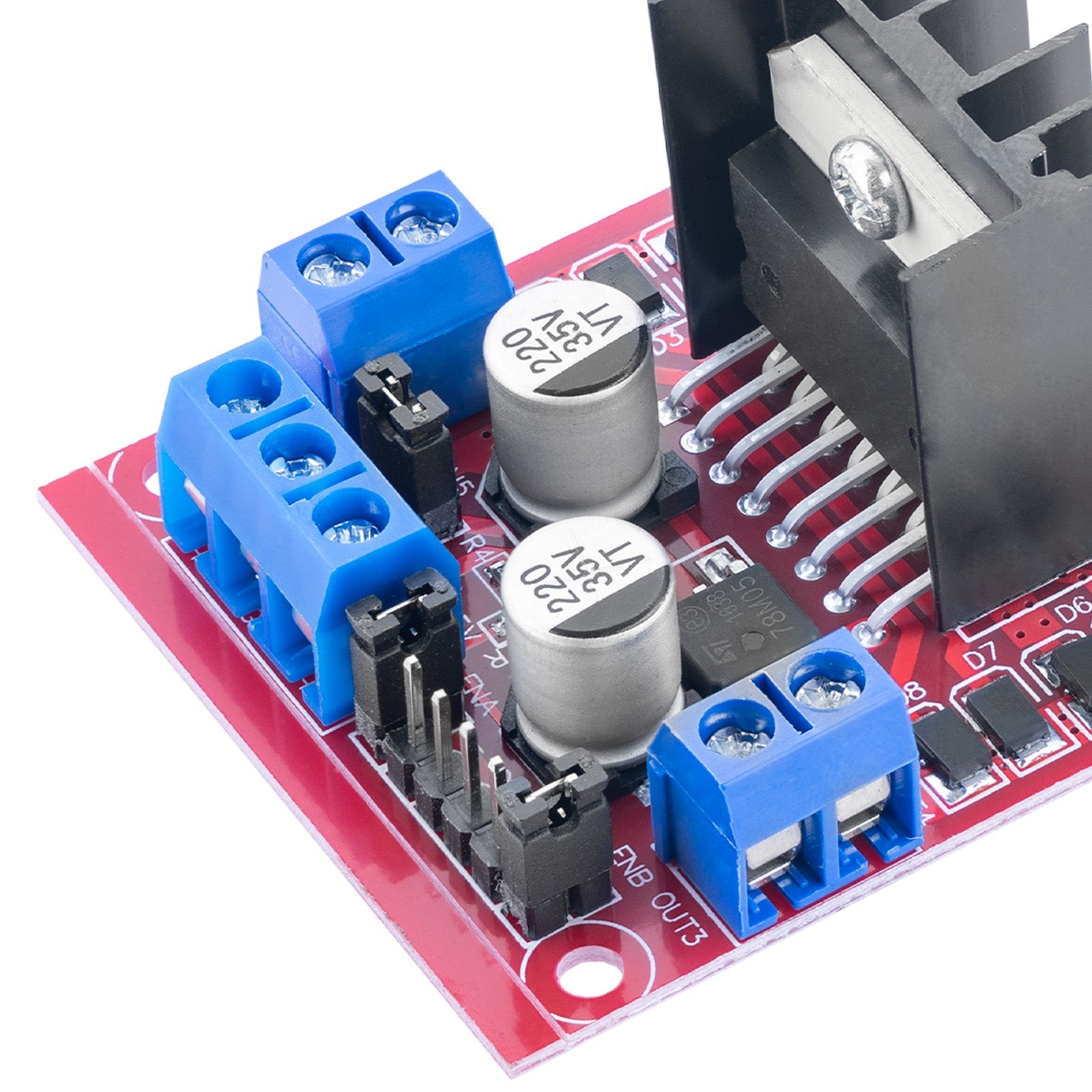

Technical Features:
Motor control IC: L298N
Operating voltage range: 5-35V
Continuous current per channel: 2A
PCB size: 44 x 47 x 28 mm
Weight: 24g
Double H-bridge circuit to control 2 DC motors or 1 stepper motor
PWM speed control for each channel
Built-in 5V voltage regulator for powering other components
Built-in LED indicators for motor and module status
Screw terminals for easy connection of motor and power supply
Compatible with a wide range of microcontroller boards, including Arduino
General application
The motor driver can be used in a variety of projects, such as home automation, agricultural automation, and other applications that require motor control.
Use of the internal voltage regulator
The driver is equipped with an internal voltage regulator. As long as the input voltage to the motors is above 7V, this regulator supplies 5V to the driver. The regulator also has a 5V output. This can be used to power a microcontroller or other device in combination with the driver. If the input voltage is below 7 V, the jumper on the board must be removed. This disables the controller and the former 5V output becomes a 5V input. Powering the input is not optional, the 5V is required for the driver to function properly.
SKU: DDMCBMcwA-055
