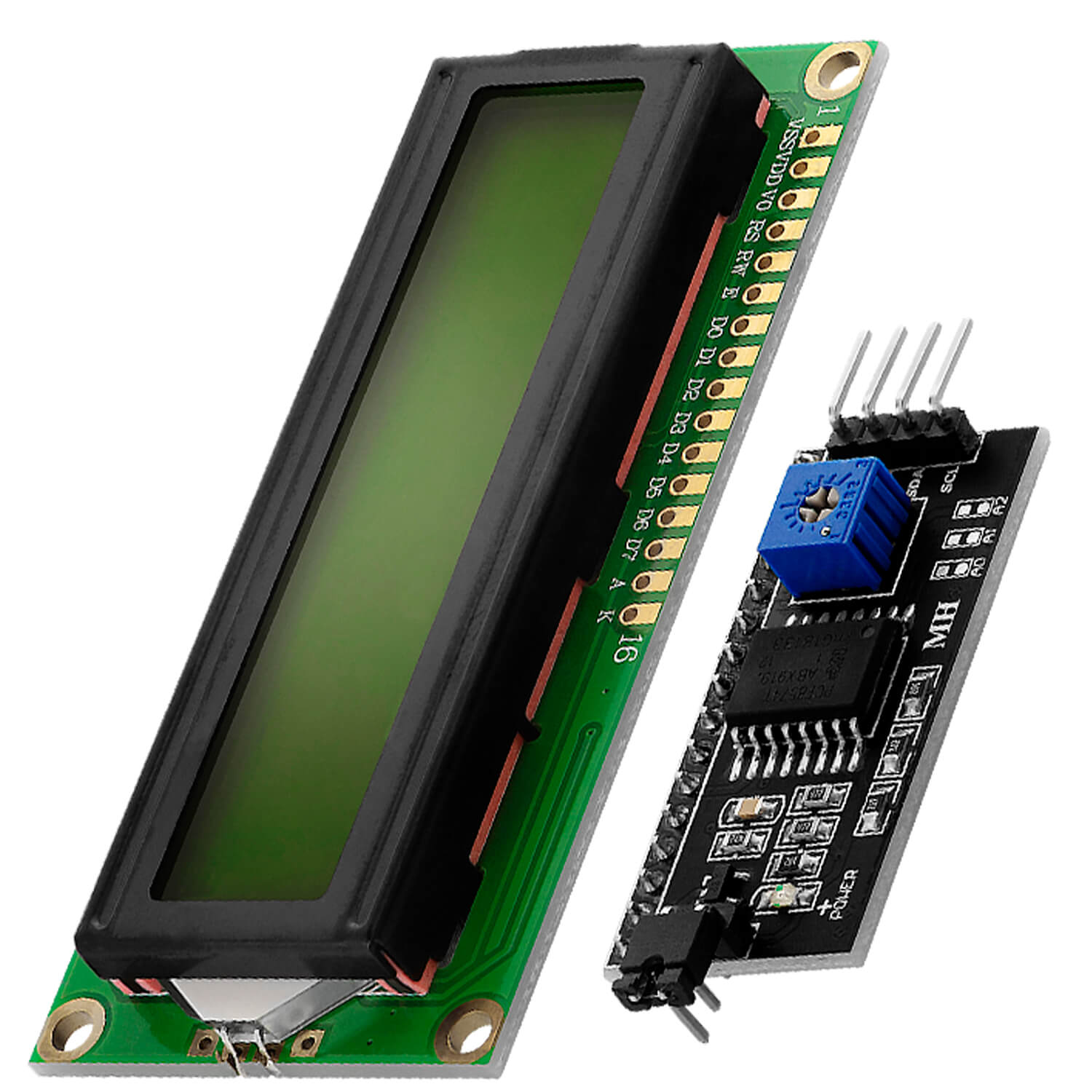

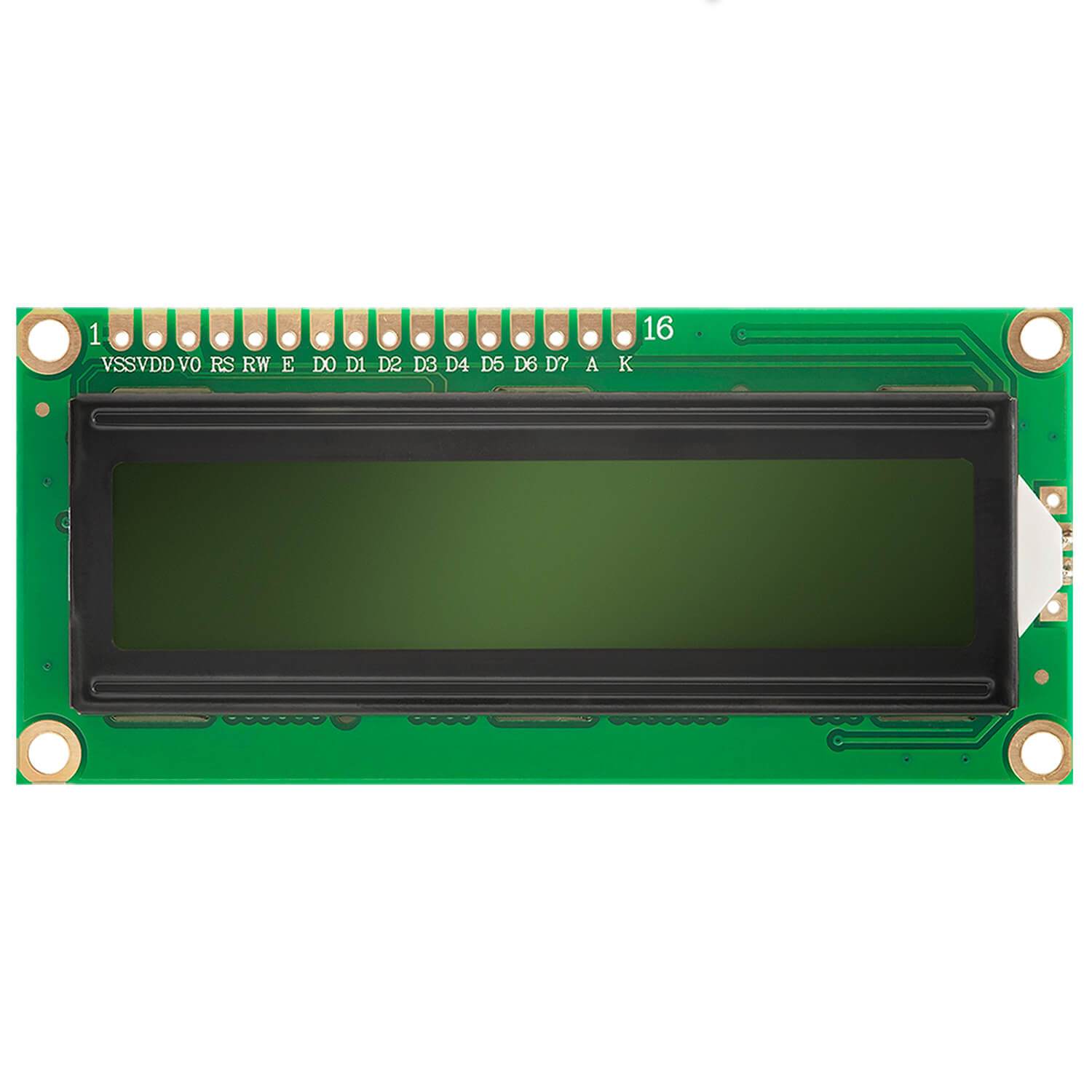

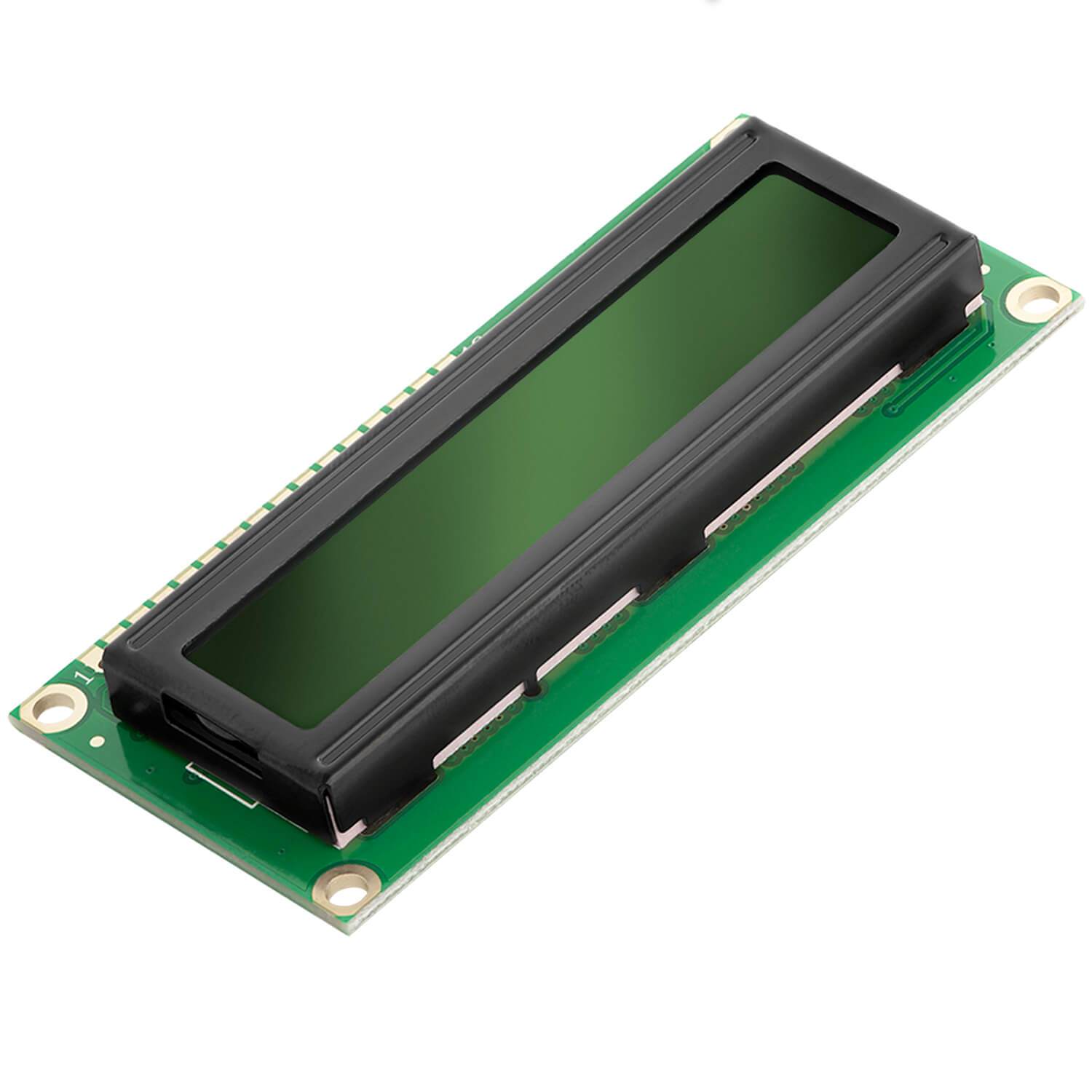

The high-contrast AZDelivery I2C display enables the display of 16 x 2 characters in white lettering on a green background. Thanks to the I2C to Serial Converter, the display can be operated with just two data pins on compatible boards.
The I2C-FC113 adapter enables you to reduce the cabling effort.
Thanks to the changeable addresses, you can operate up to 6 of these Display combinations on one microcontroller. The I2C addresses can be changed thanks to the I2C port expander and By connecting Thanks to the changeable addresses, you can operate up to 6 of these Display combinations on one microcontroller. The I2C addresses can be changed thanks to the I2C port expander and By solder bridges.
With the supplied jumper and the potentiometer, you can also control the backlight or the contrast of the display independently of the code.
Well-documented libraries exist for microcontrollers, e.g. NewliquidCrystal.
Product features:
Viewing area (WxH): 64mmx16mm
Character size (WxH): 2.96mmx5.56mm
Dot size (WxH): 0.56mm x 0.66mm
Power supply: 5V
Operating temperature: -20 to 70 degrees
Included in the package:
1 x 16x2 LCD display 16x2 characters with I2C adapter with green background
SKU: LmDBwiccwAaRP-243
