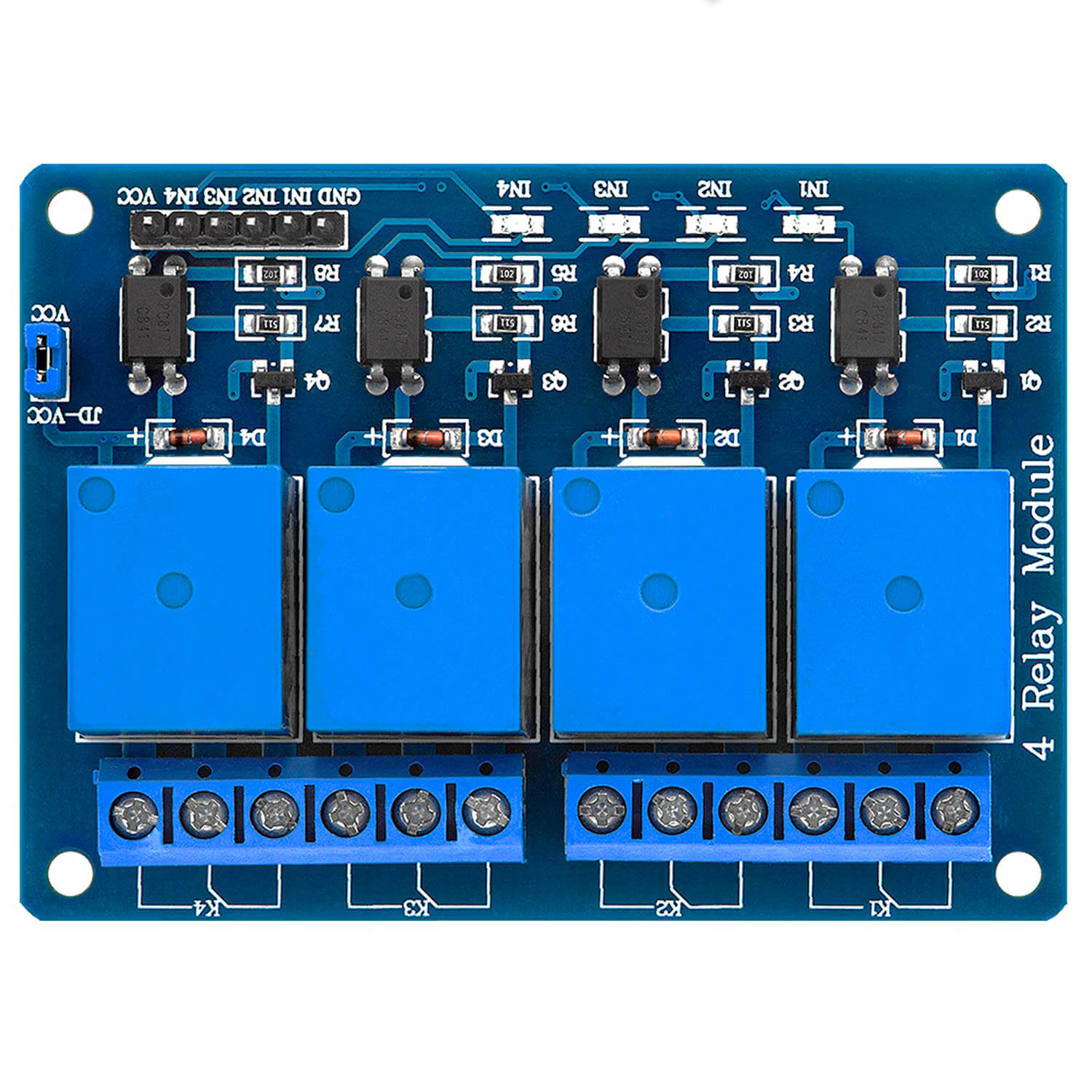

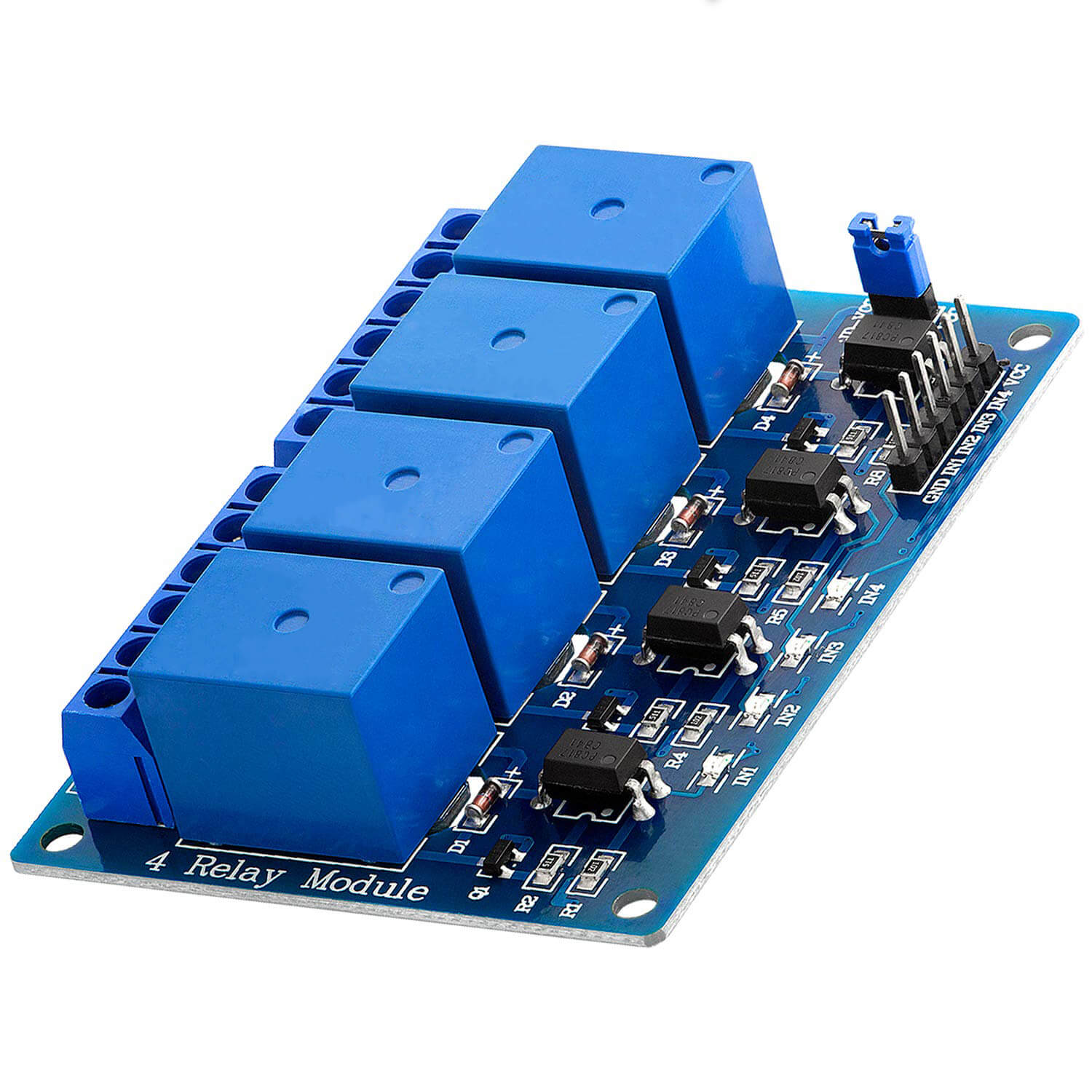

This AZ-Delivery 4-relay module consists of four LEDs, four resistors, four NPN transistors, four diodes and four relays capable of handling up to 5A 50V AC.
The relays are large in size, yet compactly sized to allow for continuous operation even under adverse operating conditions. With the help of an additional transistor, the module can be quickly and easily switched with various low-current microcontrollers.
The optocouplers and diodes protect your controller from damage. The source of the power supply can be configured with a jumper located on the board.
Special features
Thanks to the ideally dimensioned relays, the module can ensure continuous operation even under unfavorable operating conditions.
You can quickly see which relays have switched By looking at the LED status.
Wide range of applications: remote control, communication, mechatronics, power electronics, etc.
Technical specifications
Type 4-channel
Dimensions 55 mm x 75 mm [2.2 in x 2.95 in]
Contact type Both: Usually closed - NC, usually open - NO
Maximum DC 5a 30V
Maximum ac 5a 50V
TTL tax signal 5V DC
SKU: rmwotcwAaRP-310
