1. Terminal strip: 300 contacts
2. Distribution strip: 100 contacts

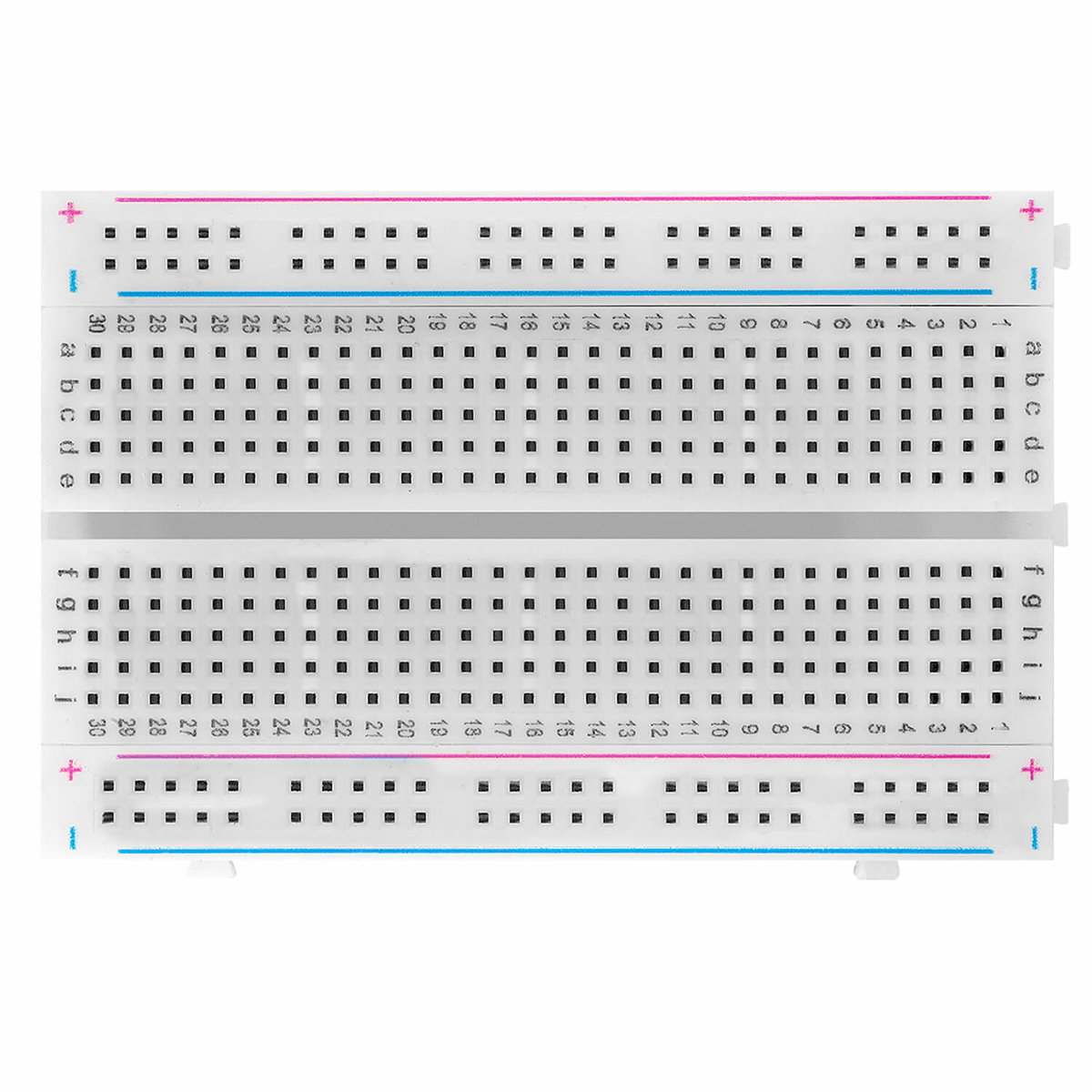

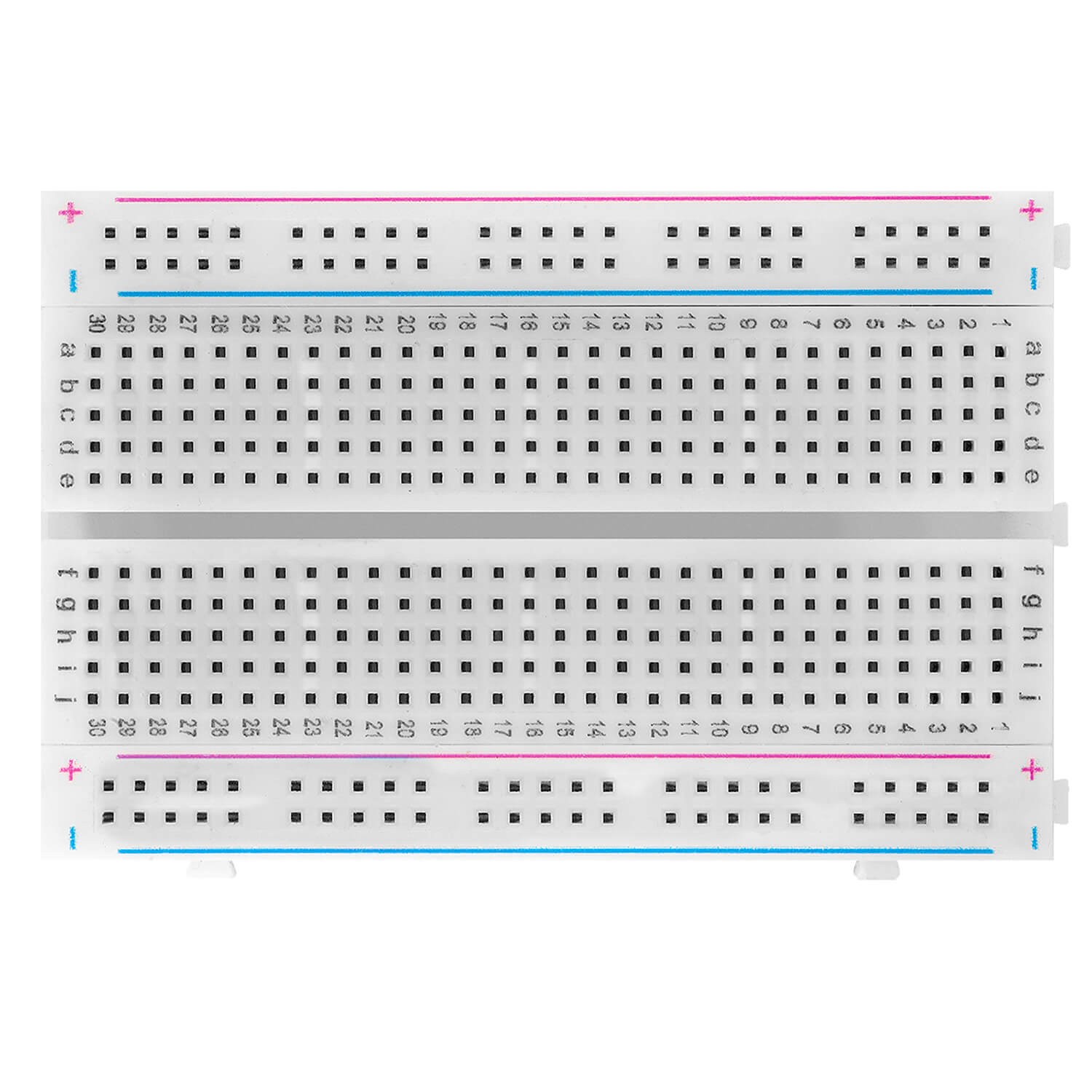

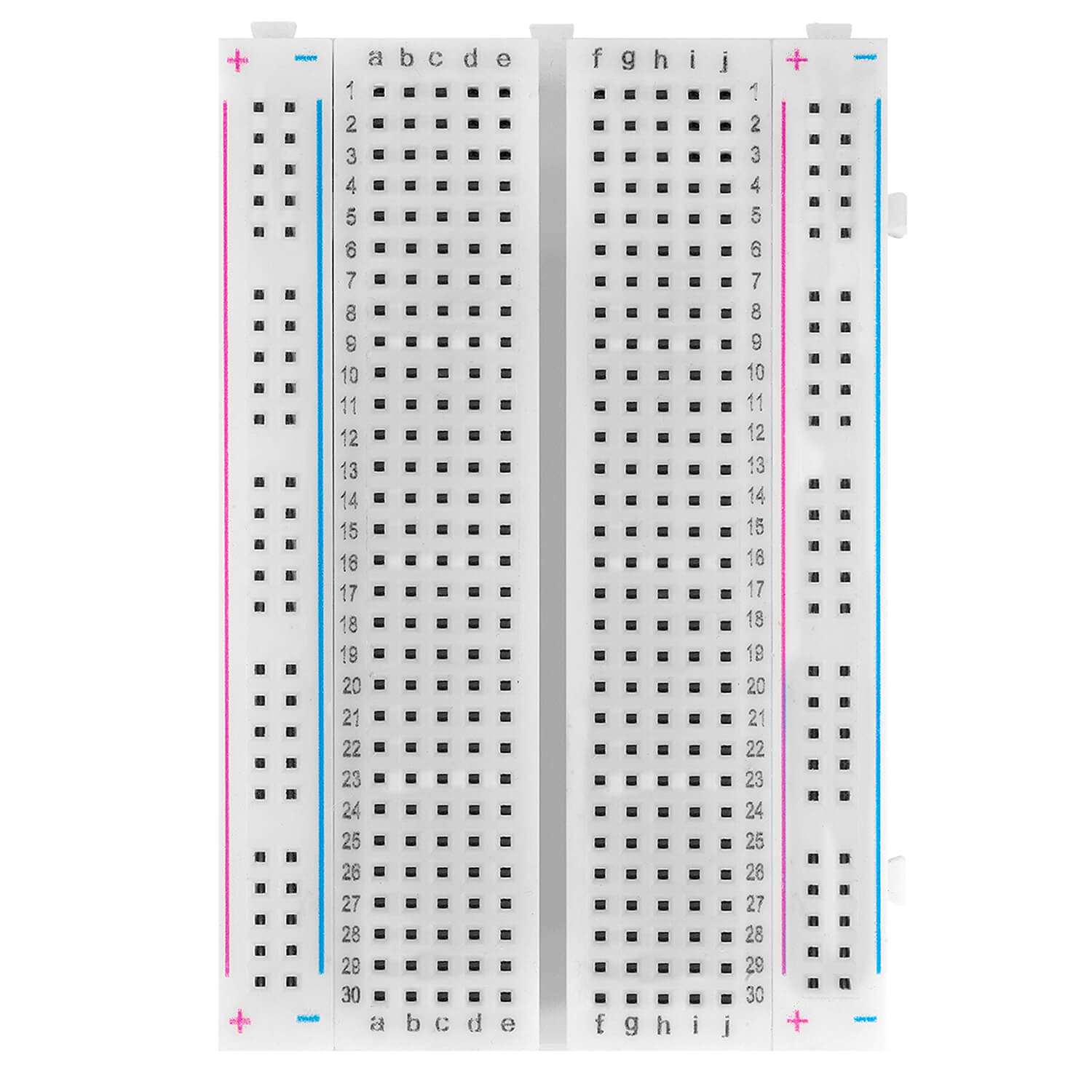

This breadboard is ideal for creating temporary prototypes and allows you to experiment with circuit designs. If your requirements grow, you can expand the board with as many AZ-Delivery breadboards as you like. In addition, the power rails are removable and can be combined as you wish.
Particularities
Thanks to the compact and solderless design, you can reuse the PCBs.
The self-adhesive tape on the back allows easy attachment of the prototype shields.
Compatible with resistors, transistors, diodes, LEDs, capacitors and other types of electronic components.
Technical specifications
Dimensions 82 x 55 x 8.5mm
Material of the board White ABS plastic
Material of contacts Phosphorus bronze manufactured
Pins 400
Base distance 2.54mm
Voltage current 300V / 3 - 5A
Isolation resistance 500mΩ / DC500V
Tense 1000V / AC / 1 minute
Wire area 29 AWG to 20AWG
Operating temperatur -25 ° C to +80 ° C
SKU: MBPwprfjc-226
