Flipper ZeroMulti-tool Device for Geeks

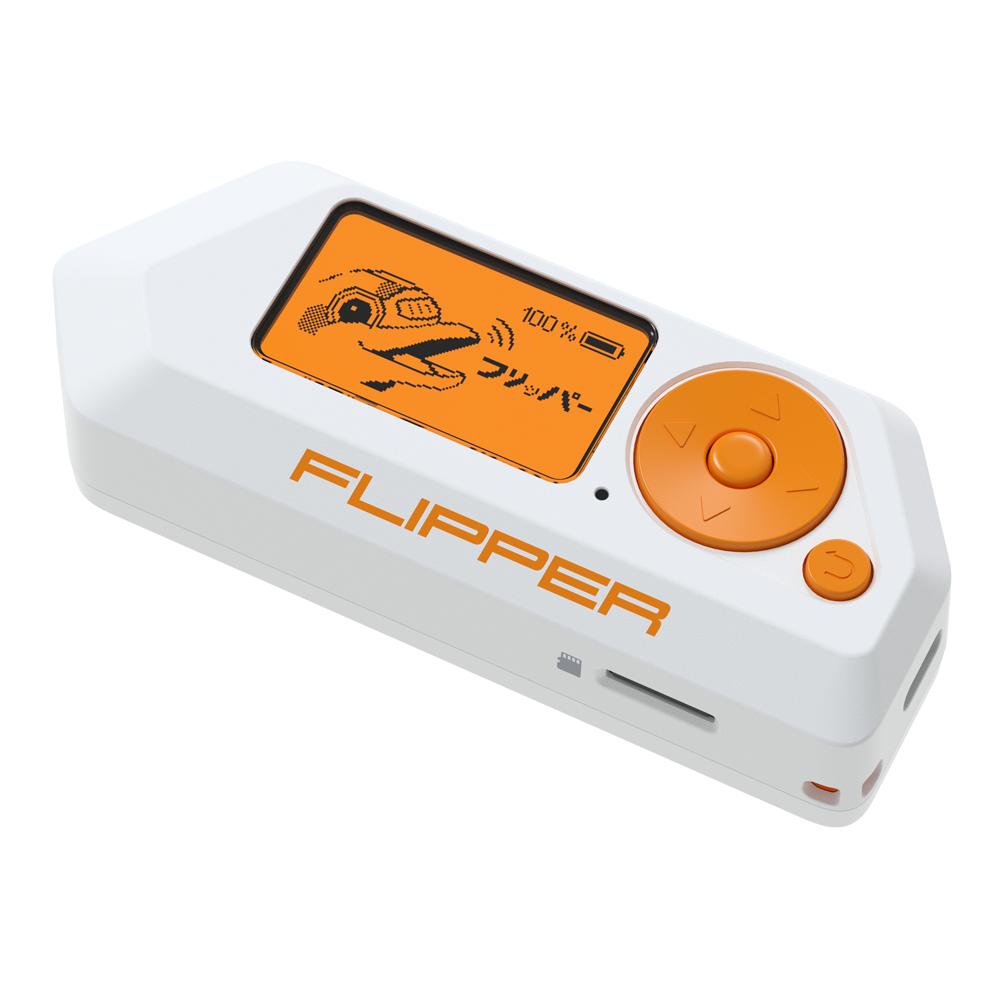

Flipper Zero is a portable multi-tool for pentesters and geeks in a toy-like body. It loves hacking digital stuff, such as radio protocols, access control systems, hardware, and more. It's fully open-source and customizable, so you can extend it in whatever way you like.
What is Flipper ZeroYour cyber buddyThe idea of Flipper Zero is to combine all the hardware tools you'd need for exploration and development on the go. Flipper was inspired by the pwnagotchi project, but unlike other DIY boards, Flipper is designed with the convenience of everyday usage in mind — it has a robust case, handy buttons, and shape, so there are no dirty PCBs or scratchy pins. Flipper turns your projects into a game, reminding you that development should always be fun.Flipper Zero is a tiny piece of hardware with a curious personality of a cyber-dolphin. It can interact with digital systems in real life and grow while you use it. Explore any kind of access control system, RFID, radio protocols, and debug hardware using GPIO pins.
Flipper Zero specification
1.4" monochrome LCD display
128x64 px, ultra-low power
sunlight-readable5-button directional padStatus LEDBack button
Flipper Zero is completely autonomous and can be controlled with a 5-button directional pad without additional devices, such as computers or smartphones. Main features are available from the Main Menu.
For more control, you can connect to Flipper Zero via USB and Bluetooth. Instead of a TFT, IPS or OLED, we decided to build in a cool old-school LCD.
GPIO pins
3.3V logic levels
(5V tolerant for input)Infrared transceiverLanyard loopUSB Type-C
Power & charging
Firmware updateMicroSD card slot1-Wire
pogo pins
Flipper Zero CC1101 radio chipset
Flipper Zero 433 MHzSub-1 GHz TransceiverSub-1 GHz
Range
This is the operating range for a wide class of wireless devices and access control systems, such as garage door remotes, boom barriers, IoT sensors and remote keyless systems. Users can expand their Flipper Zero capabilities by installing additional apps to read data from various devices including weather stations.
Flipper has an integrated multi-band antenna, and a CC1101 chip, making it a powerful transceiver with a range of up to 50 meters.CC1101 is a universal transceiver designed for very low-power wireless applications. It supports various types of digital modulations such as 2-FSK, 4-FSK, GFSK and MSK, as well as OOK and flexible ASK shaping. You can perform any digital communication in your applications such as connecting to IoT devices and access control systems.
Customizable radio platformGarage doors and barriersSub-1 GHz antennaTI CC1101 chipSmart sockets and bulbsIoT sensors and doorbells
125 kHz RFIDLow-frequency proximity cardsFlipper Zero EM4100 emulatorThis type of card is widely used in old access control systems around the world. It's pretty dumb, stores only an N-byte ID and has no authentication mechanism, allowing it to be read, cloned and emulated by anyone. A 125 kHz antenna is located on the bottom of Flipper Zero — it can read low-frequency proximity cards and save them to memory to emulate later.
You can also emulate cards by entering their IDs manually.
Moreover, Flipper Zero owners can share card IDs remotely with other Flipper Zero users.Flipper Zero 125 khz proximity card reader and emulator
Flipper Zero 125 khz proximity card reader and emulatorNFCHigh-frequency proximity cardsFlipper Zero has a built-in NFC module (13.56 MHz). Along with the 125 kHz RFID module, it turns Flipper Zero into an ultimate RFID device operating in both low-frequency (LF) and high-frequency (HF) ranges. The NFC module supports all the major standards.
It works pretty much the same as the 125 kHz module, allowing you to interact with NFC-enabled devices — read, write and emulate HF tags.
Flipper Zero 125 khz proximity card reader and emulatorBluetoothFull Bluetooth Low Energy (BLE) support allows Flipper Zero to act as a peripheral device, allowing you to connect your Flipper Zero to 3rd-party devices and smartphones.
Our mobile developers have designed apps for iOS and Android that let you update your Flipper Zero via BLE, remotely control the device, share keys, and manage data on a larger screen.Download Mobile Apps
Flipper Zero infrared receiver Flipper Zero infrared transmitterInfrared TransmitterThe infrared transmitter can transmit signals to control electronics such as TVs, air conditioners (AC), stereo systems, and others.
Flipper Zero has a built-in library of signals for common TVs, ACs, projectors, and stereo systems brands. This library is regularly updated with new signals, thanks to the Flipper Zero community's active contributions to the IR Remote database.Flipper Zero also has an IR receiver that can receive signals and save them to the library, so you can store any of your existing remotes to transmit commands later, and add them to the public IR Remote database to share with other Flipper Zero users.Infrared learning featureInfrared TransceiverInfrared receiver
Flipper Zero bad usb attack toolkitMicroSD cardThere is a variety of data Flipper Zero has to store: remote codes, signal databases, dictionaries, image assets, logs, and more. All this data is stored on a MicroSD card.
The MicroSD card slot has a push-push type connector, so the card is reliably secured inside without sticking out.
Flipper Zero supports any FAT12, FAT16, FAT32 and exFAT formatted MicroSD cards to store your assets so you'll never have to worry the memory will run out.External storage for apps and dataHand strap hole
Flipper Zero — Tool for Hardware HackingTool for Hardware ExplorationHand strap holeFlipper Zero is a versatile tool for hardware exploration, firmware flashing, debugging, and fuzzing. It can be connected to any piece of hardware using GPIO to control it with buttons, run your own code and print debug messages to the LCD. It can also be used as a regular USB adapter for UART, SPI, I2C, etc.SPI, UART, I2C to USB converterCommunicate with any hardware from your desktop application.Flashing and debugging tools
SPI Flash Programmer
AVR ISP Programmer
OpenDAP
Fuzzing tool
Test any protocols and signals.
Flipper Zero features built-in 5V and 3.3V power pins. Control the device with built-in buttons and display — no PC is needed.Completely Autonomous
Flipper Zero iButton emulatorFlipper Zero ibutton 1-wire readerFlipper Zero has a built-in 1-Wire connector to read iButton contact keys. This old technology is still widely used around the world. It uses the 1-Wire protocol that doesn't have any authentication. Flipper can easily read these keys, store IDs in the memory, write IDs to blank keys and emulate the key itself.
Flipper Zero has a unique iButton contact pad design — its shape works both as a reader and a probe to connect to iButton sockets.iButton1-Wire+_1-Wire keys (Touch Memory)
Flipper Zero technical specification and schemeWhat's inside
Tech specsMCU (Microcontroller unit)DisplayModel: STM32WB55RG
Application processor: ARM Cortex-M4 32-bit 64 MHz
Radio processor: ARM Cortex-M0+ 32-bit 32 MHz
Radio: Bluetooth LE 5.4, 802.15.4 and proprietary
Flash: 1024 KB (shared between application and radio)
SRAM: 256 KB (shared between application and radio)LCD Monochrome
Resolution: 128x64 px
Controller: ST7567
Interface: SPI
Diagonal Size: 1.4“Sub-1 GHz moduleTransceiver: CC1101
TX Power: -20 dBm max
Frequency bands (depends on your region):
● 315 MHz
● 433 MHz
● 868 MHz
● 915 MHzBuzzerFrequency: 100-2500 Hz
Sound Output: 87 dB
Type: CoinVibration MotorBatteryLiPo 2100 mAh
Up to 28 days battery lifeMicro SDBodySize: 100x40x25 mm (3.95x1.58x1.01 inches)
Weight: 102 grams (3.6 ounces)
Materials: PC, ABS, PMMA
Operating temperature: 0° to 40° C (32° to 104° F)GPIO13 I/O pins available to user on external 2.54 mm connectors
3.3V CMOS Level
Input 5V tolerant (See AN4899)
Up to 20 mA per digital pinBluetooth LE 5.4TX power: 4 dBm max
RX sensitivity: -96 dBm
Data rate: 2 MbpsInfraredRX wavelength: 950 nm (+/-100nm)
RX carrier: 38 KHz (+/-5%)
TX wavelength: 940 nm
TX carrier: 0-2 MHz
TX power: 300 mW
Supported protocols:
● NEC family
● Kaseikyo
● RCANFCTransceiver: ST25R3916
Frequency: 13.56 MHz
Supported cards:
● ISO-14443A/B
● NXP MIFARE Classic®, Ultralight®, DESFire®, etc.
● FeliCa™
● HID iClass (PicoPass™)
● NFC Forum protocolsFrequency: 125 kHz
Modulation: AM/OOK
Coding: AKS, PSK
Supported cards:
● EM400x, EM410x, EM420x
● HID
● Indala
● FDX (A & B)
● Pyramid
● AWID
● VikingRFID 125 kHzForce value: 30 N
Speed: 13500 rpmUp to 256 GB microSD card (SPI mode)
2-32 GB card recommended
Read/Write speed: up to 5 Mbps
Supported file systems: FAT12, FAT16, FAT32, and exFATControl5-button directional pad
Back buttonUSBType-C, USB 2.0 (12 Mbps)
USB device
Charging (1A max)iButton 1-WireSupported protocols:
● Dallas DS199x, DS1971
● CYFRAL
● Metakom
● TM2004
● RW1990
● Jablotron
● Paradox
● PACStanley
● Keri
● Gallagher
● Nexwatch
● RC5, RC6
● Samsung
● SIRC
