Technical Specifications
Ventilation Modes
VCV(A/C) PCV(A/C) PRVC SIMV(VCV)+PSV
SIMV(PCV)+PSV SIMV(PRVC)+PSV SPONT /CPAP+PSV
BIVENT+PSV NIV/CPAP NIV-T NIV-S/T
Parameters
• Tidal Volume: 20~2000 ml
• Respiration Rate: 1~80 bpm
• Tinsp: 0.2~9 s
• Tslope: 0~2 s
• Tpause: 0~4 s
• I:E Ratio: 1:10~4:1
• FiO2: 21%~100%
• Trigger Sensitivity: Pressure (-20~0 cmH 2O, above PEEP)
Flow (0.5~20 LPM)
• PEEP: 0~35 cmH2O
• Psupport: 0~70 cmH2O
• Pinsp: 5~70 cmH2O
Special Procedures
Apnea Ventilation Suction(smart O2 enrichment ) Manual Breath
Insp/ Exp Hold *ETCO2 Measurement
Nebulization Waveform Freeze
Monitoring
• Pressure Value: Ppeak, Pplat, Pmean, Pmin, PEEP
• Volume / Flow V alue: Vti, Vt e, MV, MVspont
• Time Value: ftotal,fspont, I:E
• Real Time C urves: Pressure-Time, Flow-Time, Volume-Time waveforms
Pressure-Volume, Volume-Flow, Flow-Pressure loops
• Gas Monitoring: FiO2, *ETCO2
• Calculated Values: Compliance(C)
Resistance(R)
MVleak
RSBI
WOB
PEEPi
Alarm
Paw high / low MVe high / low Circuit disconnnect
FiO2 high / low Inspiration / E xpiratory tidal volume low
High R espiration Rate Apnea AC Failure Nebulizer On
Low Battery O2 supply down High / L ow PEEP
Leakage out of r ange Occlusion
Technical Data
• Screen: 12〞TFT color touch screen (detachable)
• Supply Gas: O2, 0.28~0.6 MPa
• Power Supply: AC100~240 V, 50 Hz/60 Hz
• Communication Interface: Nurse c all Port
• Dimension (WxDxH): 322 mm x 375 mm x 366 mm (Main Unit)
547 mm x 675 mm x 950 mm (Cart)
• Weight: 12.5 k g (Main Unit)
25 k g (Cart)

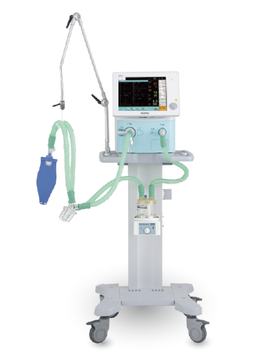

An Optimal Combination of Invasive and Noninvasive Ventilator
As noninvasive ventilation is used increasingly in a wide range of clinical situations, we offer a dual solution VG70
Combines the advantages of a flexible noninvasive ventilator with a full-featured invasive ventilator for the ICU
Auto-detect and adjustable leakage compensation
Multi-parameter monitoring
Superior Mobile ICU ventilator
• Comprehensive ICU ventilator including BIVENT and PRVC
• Compact, 4 hours internal batteries, turbine based, suitable fo r intra-hospital transportation
• Flexible device configuration: equipped on a trolley, bed or cei ling pendant
Cost Effective Solution
• Unique metal-based, non-consumable exhalation valve
• Built-in flow sensor, non-consumable design
• Upgradeable ventilation system software, with an available USB port
Safe Ventilation Through Whole Treatment Phase
Initial Treatment Phase
• Both invasive and noninvensive ventilation modes can be seletce d, meet the needs for
more patients.
• User friendly interface, present patient's height and IBW.
Stable Condition Phase
• PRVC and BIVENT employ lung-protective strategies, delivering i ntelligent ventilation
• Comprehensive lung mechanics monitoring include compliance, air way resistance,
PEEPi and time constant
• Three waveforms & three loops with user-friendly display provid e a continuous
monitoring of the patient’s condition
Weaning Phase
• Various ventilation modes enhance the weaning process
• The unique trigger and leakage compensation system safeguards e ach and every
patient breath resulting in smooth and comfortable breathing , avoiding extra
workload on the patient and promoting recovery
• RSBI and WOB provide accurate reference for weaning
Rehab Phase
• Provides pressure support for the patient when spontaneous brea thing is present
• Intergrated nebulizer enchances clinical treatment option
