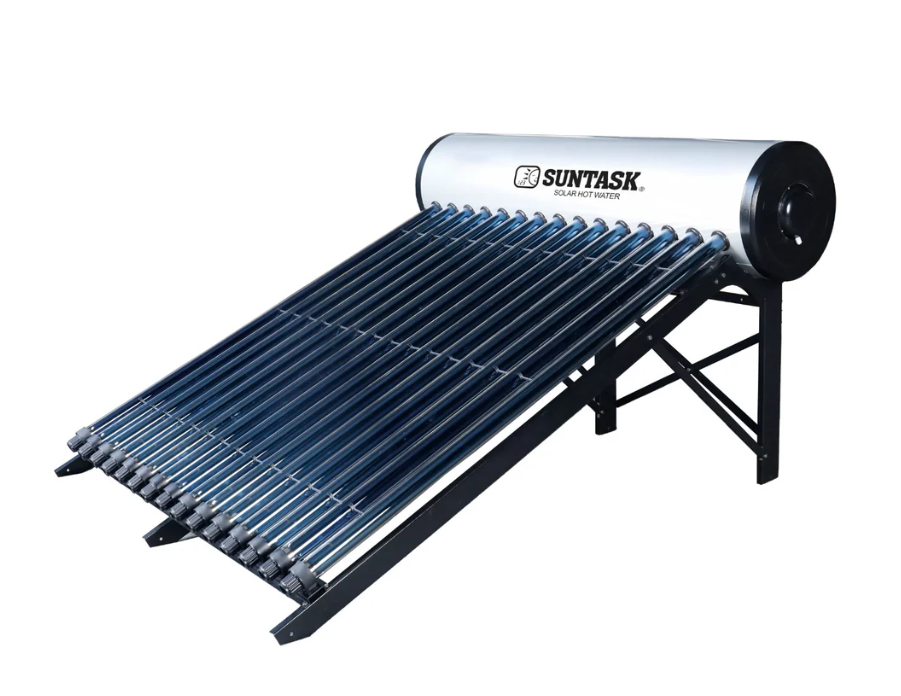

Description:
• two modes suitable for both summer and winter
• no water inside tubes, solar system can work normally when tubes broken
• multifunction frame both for slope/flat roof, inclined roof installation
• Temperature startup faster than the normal solar system
• power output sharply increased by the CPC concentrators
• fast assembly CPC more easily disassembly
• 316L SS socket perforation solution, no leakage
• 24h high pressure hot water outlet
Technical Parameters:
• Vacuum Tube: super conducted heat pipe (without water)
• Insulation Tank: SU316L pressurized inner tank
• Working Pressure: 7 bar
• T/P Valve: 6bar / 99 degrees Celsius
• Working Principle: Direct working withstand pressure
• Frame: slope and flat roof multifunction
• Assistant Function: electric heater
Specification:
• Vacuum Tuber: 58x1800 (20pc)
• Tube Distance: 11cm
• Inner Tank: 100L
• Liter/Day/60 Degrees Celsius: 300L
• Size (LxWxH): 198.7cm x 185cm x 120cm
SKU: SUN-80G-WH
