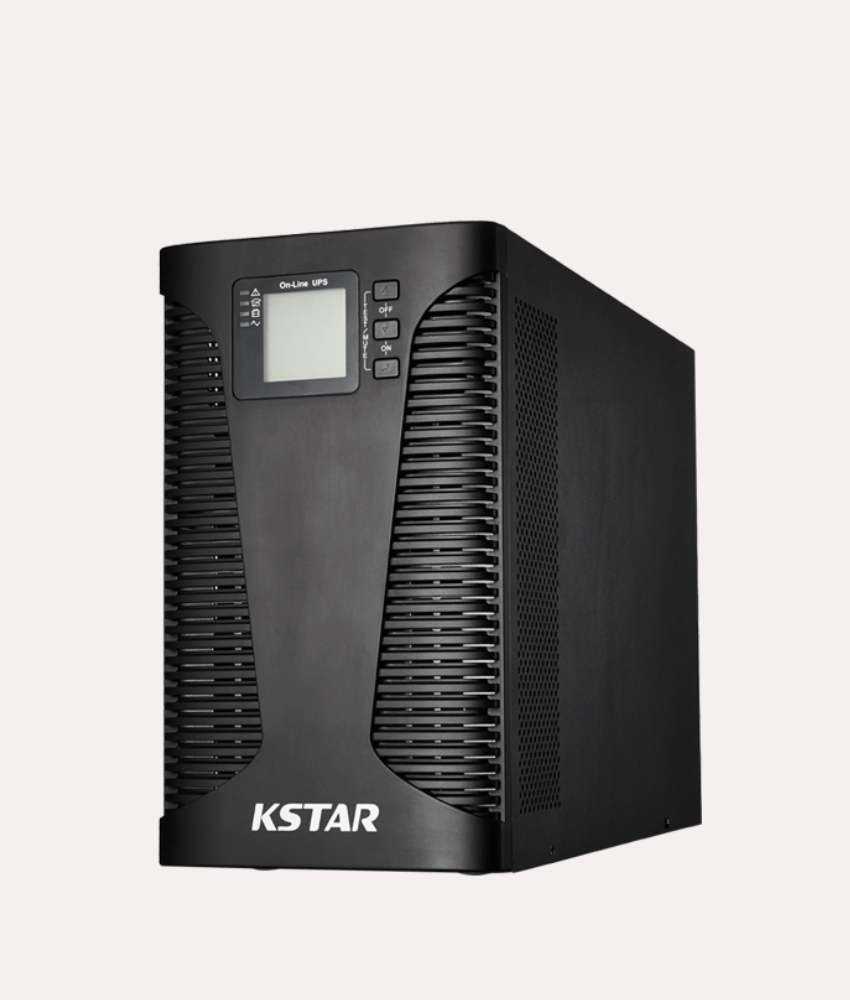

Brand: KSTAR
Model: HP903CH
Capacity: 3000VA
Rated Power: 2400Watt
Volt. System: 96volt.
Battery Type and Capacity: 12V/7.5Ah
Backup Time: Standard
Warranty: 1 Year warranty batteries included.
Origin: China
Applications:
Its systems and equipment.
Computer, Printer & Scanner, etc.
Process controls, Testing & Measuring instruments.
Medical, Electronic healthcare equipment & Lift-support systems in hospitals.
Safety systems in power stations.
Audio-visual equipment.
Bank-ATMs.
Networking, Telecommunications & Datacenter.
Industrial and many more (as per the customer’s requirements).
Technical Specification:
Model: HP ||3K
Capacity (VA/Watt): 3000/2400
Input Voltage Range: 110300Vac at 60% lode, 160300Vac at 100%.
Input Frequency Range: 4555Hz/5565Hz
Output Voltage Range: 200/208/220/230/240Vac
Output Voltage Regulation: +-1%
Output Frequency Range (Synchronized): 4555Hz/5664Hz
Output Frequency Range (Batt. Mode): 50Hz/60Hz+-0.1Hz
Current Crest Ratio: 3:1
Transfer Time:
AC to DC: Zero
Inverter to Bypass: 4ms(Typical)
Waveform: Pure Sine Wave
Features:
High Frequency and Double Conversion Online UPS
Microprocessor Digital Control Technology
Eco mode operation for energy saving
Output Receptacle Control for Non-critical load shedding capability
Emergency Power Off Function (EPO)
Communications;RS-232, USB, SNMP card (Optional), Relay card (Optional)
Bypass can be used when UPS is off (Settled in LCD)
Cold Start
Visual alarms (led and displayed)
LCD with information about the status of UPS
Protections against overload, short-circuit, and battery voltage
