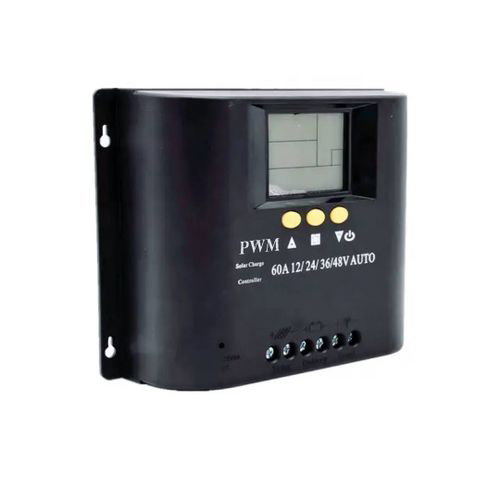

PWM Solar Charger -12/24/36/48V 60Amps
Input Voltage 12/24/36V/48V
Visual LCD graphic symbol
Brief key operation
Grade auto switch of system voltage
Intelligent PWM Charging Mode
Auto temperature compensation
Adjustable charging & discharging parameter
Settable working modes of loads
Accumulative function of charging & discharging
Protection for battery back discharging
Protection for battery low voltage
12V at 10.2v
24V at 20.4v
48v at 40.8vO
Overloading& short-circuit protection
Battery reversed protection
Delayed auto restart after overloading protection
Model: 60A PWM Solar Charge Controller
Rated working voltage :12V/24V/36/48V DC AUTO
Rated working current :60A
Voltage of solar panel 48V
Float charging voltage (settable) :13.8V/27.6V/55.2V
Low voltage protection (settable) :10.2V/20.4V/40.8V
Low voltage recovery (settable) :11.5V/23.0V/460V
No load loss : Temperature compensation :-4m
Installable maximum cable:3# AWG (25mm2)
Working temperature: -30 ~70
Solar PV Input
Charging mode:PWM Solar panel power: 720W/12V;1440W/24V/3750W/48V
Colour:;Black.
Float charging voltage (settable) :13.8V/27.6V/55.2V
Low voltage protection (settable) :10.2V/20.4V/40.8V
Low voltage recovery (settable) :11.5V/23.0V/460V
This is a time tested product that competes favourably with its MPPT solar charge controllers.
PV Conversion Efficiency 90%
SKU: 65544899752365533
