Bluetooth Controller Included

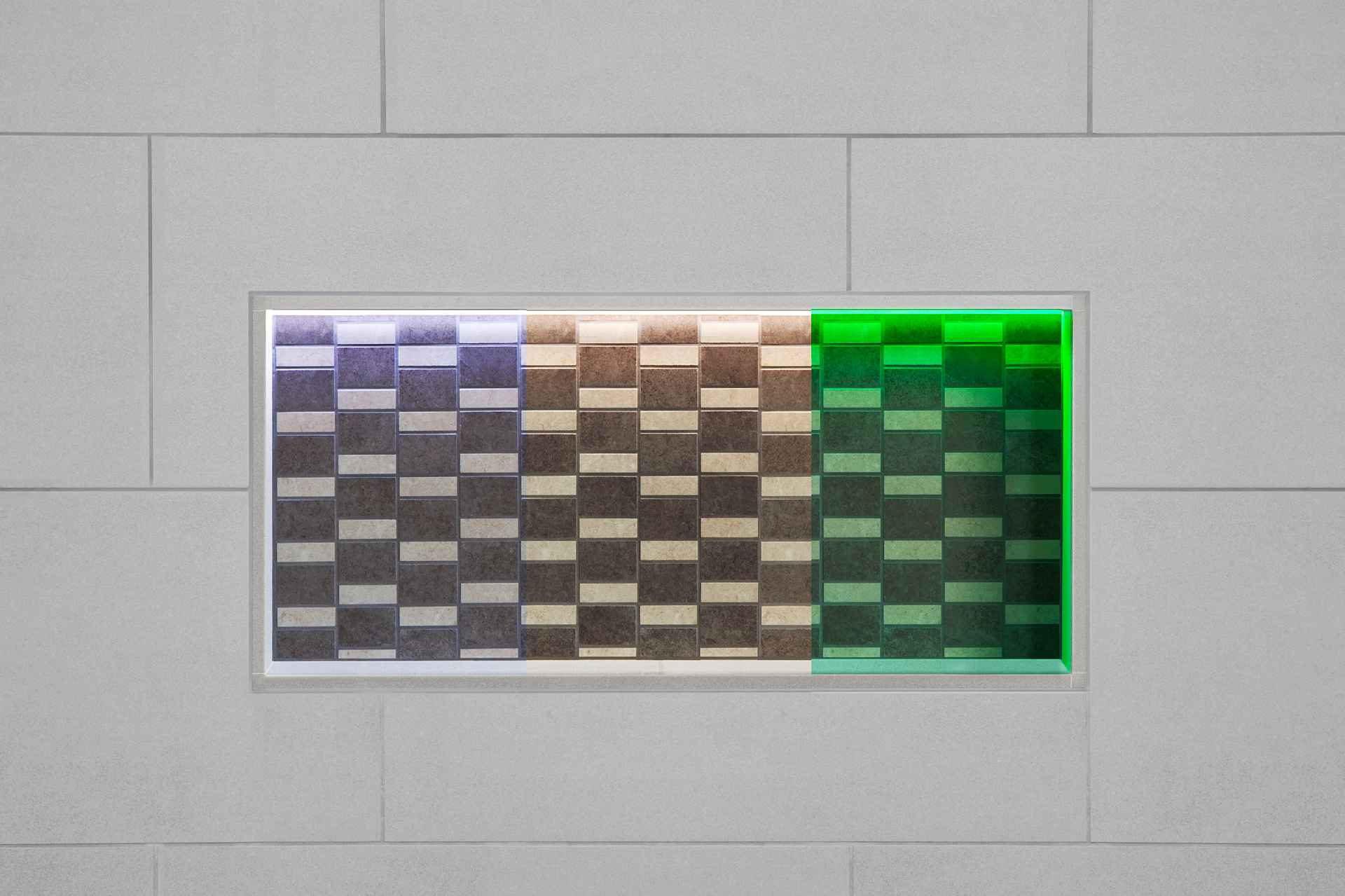

Schlüter-KERDI-BOARD-NLT are prefabricated niche sets made of KERDI-BOARD with plug-and-play LIPROTEC-LED technology. They are used to create illuminated niches and storage surfaces for wall areas. These niches can be integrated into the Schlüter-KERDI waterproofing system as a bonded waterproofing assembly.

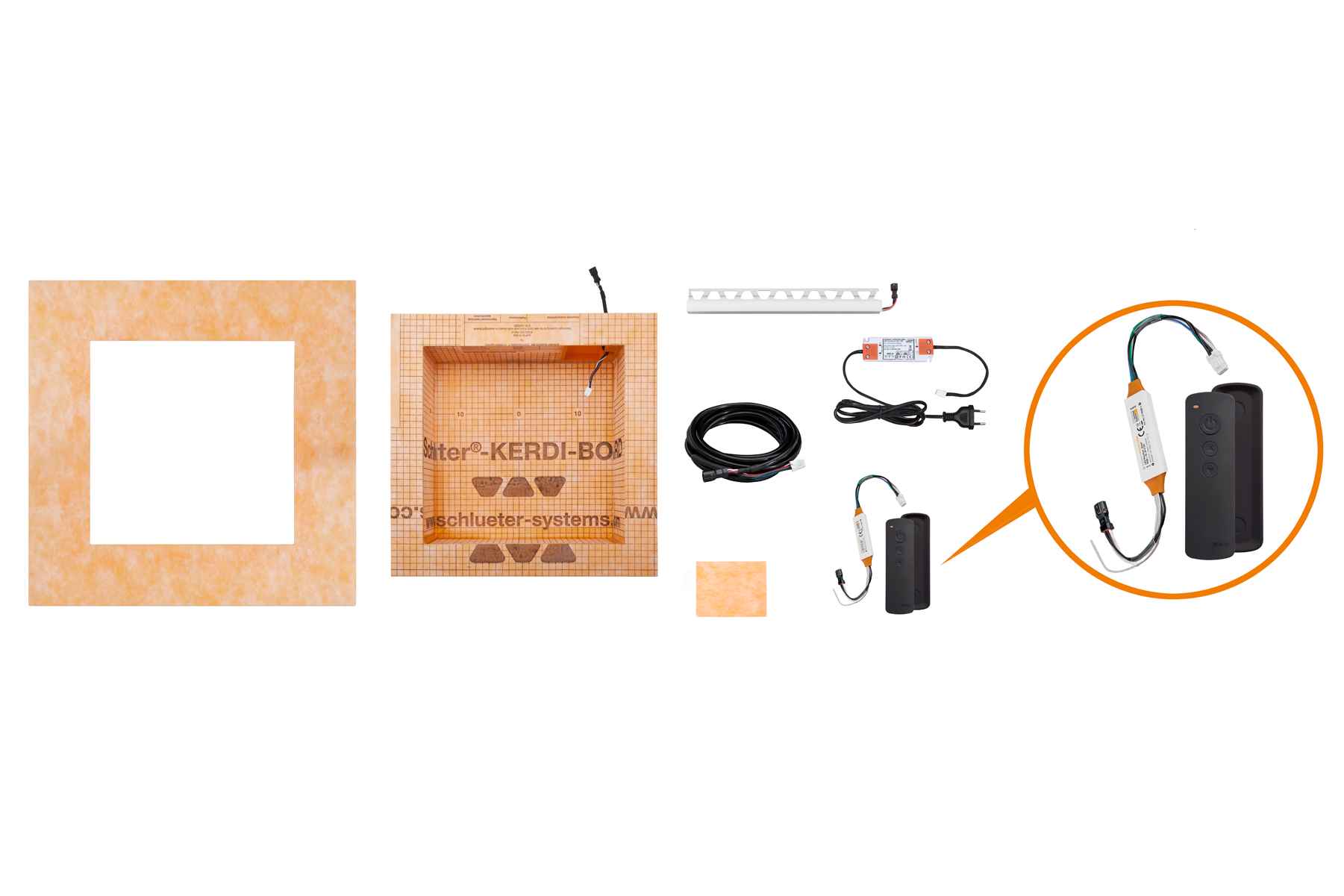

The niches are available in different dimensions and lighting options. The rectangular niches are available with illumination either on the long or the narrow side. The LED module can either be positioned at the front edge, in the centre or at the rear of the wall that is to be tiled. The scope of supply includes all components required for the installation, as well as the cable connection, power supply and sealing collar. We recommend using a standard light switch for convenience.
RGB+White LED
Dimensions of LED (B x H) = 17 x 14.5mm
Rated output (W/m) = 7.30
EEC = F
Number of LED (u./m) = 112
CRI = 90
Included power supply = 230V. 15W
Included cable = 3m
Bluetooth Controller Technical Data:
Max. range 10m
Input voltage 24V, DC
Max. total load in the LIPROTEC system: 90W
Max. length LED strips: 6m
Degree of protection: IP63
Ambient temperature: -20°C to + 50°C
SKU: NLT-BR
