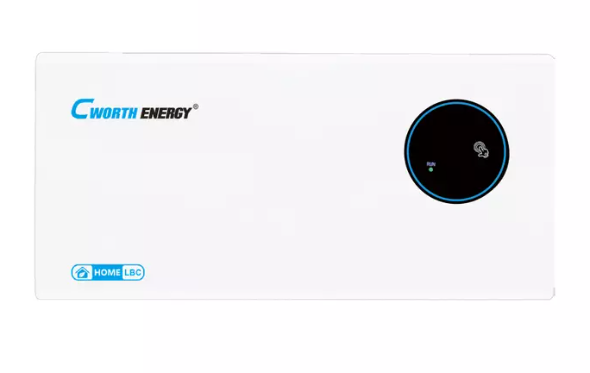

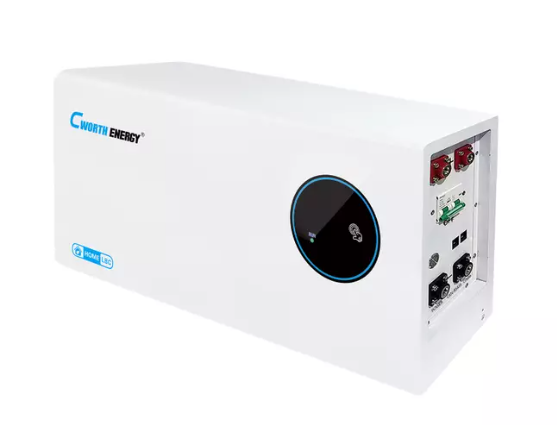

The Cworth LBC48200 is a high-capacity 10kWh lithium iron phosphate (LiFePO₄) battery designed for energy storage applications, primarily in solar power systems, backup power solutions, and off-grid setups. With its robust features and long lifespan, this battery is well-suited for residential and commercial energy storage needs.
Technical Specifications:
- Battery Type: Lithium Iron Phosphate (LiFePO₄)
- Nominal Voltage: 51.2V
- Capacity: 10kWh (100Ah)
- Voltage Range:
- Operating Voltage: 48V to 57.6V
- Charge Cut-off Voltage: 57.6V
- Discharge Cut-off Voltage: 48V
- Cycle Life: 6,000+ cycles at 80% Depth of Discharge (DOD)
- Maximum Charge/Discharge Current: 200A
- Recommended Charge/Discharge Current: ≤100A
- Normal Output Power: 5,120W
- Maximum Output Power: 10,240W
- MIngress Protection: IP21 (suitable for indoor use, protected from dust and water)
- Dimensions 800mm (L) × 400mm (W) × 200mm (H)
- Weight: Approximately 74.5kg
Key Features:
- High Energy Capacity:
- Provides a 10kWh storage capacity, making it capable of powering larger households or providing backup for more demanding applications.
- Expandable:
- The battery supports parallel connections (up to 6 units), which allows for scalable energy storage depending on the required capacity.
- Durable Design:
- Long-lasting with over 6,000 cycles at 80% DOD, which ensures reliable performance over the years.
- Built-in Battery Management System (BMS):
- The BMS manages and monitors battery performance, protecting it from overcharging, deep discharge, overcurrent, and thermal issues.
- Compact and Safe:
- Designed for ease of installation, the unit has IP21 protection, which makes it resistant to dust and light splashes of water, though it's best for indoor use.
Applications:
- Solar Energy Systems:
- Ideal for solar power storage in both residential and commercial settings, providing energy storage for day-to-day use and backup during power outages.
- Backup Power:
- Perfect for use in homes and businesses looking for a reliable backup power solution during grid outages or fluctuations.
- Off-grid Applications:
- An excellent choice for off-grid systems where traditional energy sources are unavailable or expensive.
Why Choose the Cworth LBC48200?
- Long lifespan: The battery offers over 6,000 cycles at 80% Depth of Discharge (DOD), making it a long-term investment.
- Safe and efficient: With its LiFePO₄ chemistry, the battery is known for its safety, high thermal stability, and long-term reliability.
- Expandable capacity:K You can scale the system with additional units to meet future energy needs.
SKU: LBC48200
