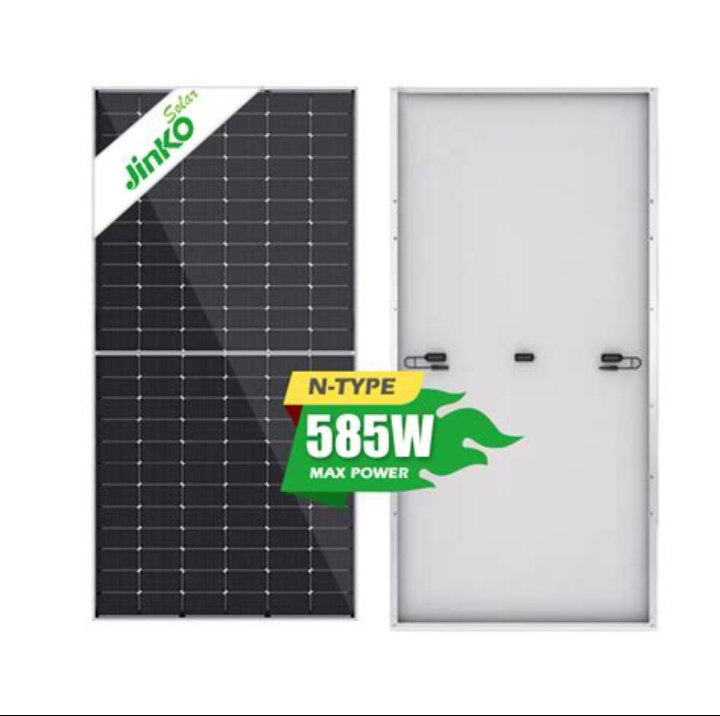

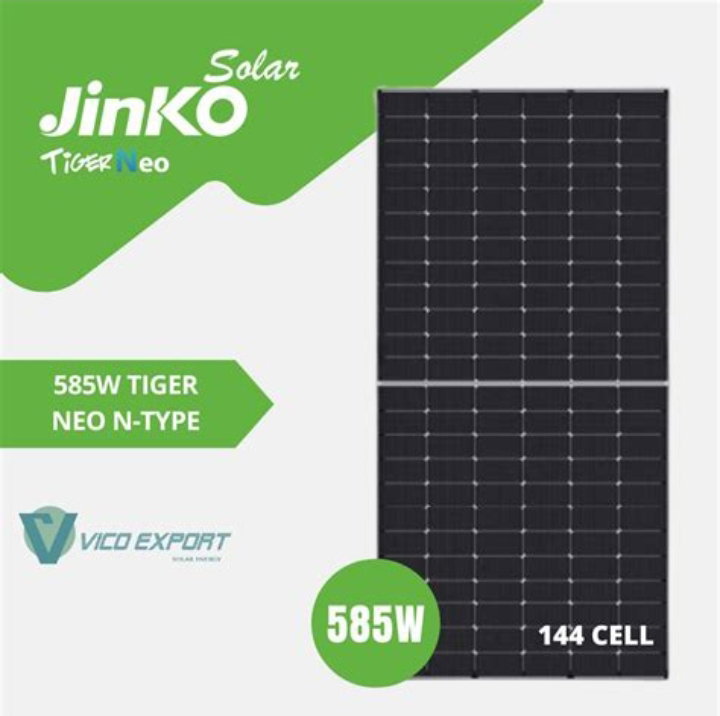

The Jinko Solar 585W Mono Crystalline Solar Panel is a high-performance photovoltaic module designed for commercial and utility-scale solar installations. Here are its key features and specifications:
Key Features:
High Power Output: 585W peak power generation, ideal for maximizing energy production.
Monocrystalline Technology: Uses high-efficiency monocrystalline cells for superior performance.
N-Type TOPCon Cells: Advanced technology for better efficiency, reduced degradation, and improved reliability.
Bifacial Design (Optional): Some variants allow light absorption from both sides, increasing energy yield.
High Efficiency: Module efficiency of around 22% or higher, ensuring better energy conversion.
Durability & Reliability:
Anti-PID (Potential Induced Degradation) technology for long-term stability.
Certified resistance against extreme environmental conditions, including high wind loads and snow loads.
Lower Degradation Rate:
Less than 1% power loss in the first year.
Around 0.4% annual degradation over a 30-year lifespan.
Half-Cut Cell Design: Reduces power losses and improves shading tolerance.
Technical Specifications:
Module Type: Monocrystalline
Power Output: 585W
Voltage at Maximum Power (Vmp): ~44-46V
Current at Maximum Power (Imp): ~12.5-13.5A
Open-Circuit Voltage (Voc): ~52-54V
Short-Circuit Current (Isc): ~13.5-14.5A
Dimensions: Typically around 2278 × 1134 × 30/35 mm (varies by model)
Weight: Approximately 30-35 kg
Frame Material: Anodized aluminum alloy
Glass: 3.2mm tempered glass with anti-reflective coating
Junction Box: IP68-rated for superior protection
Certifications & Warranty:
IEC & UL Certified for safety and performance standards.
Performance Warranty: 30 years linear power output warranty.
Product Warranty: 12-15 years against manufacturing defects.
Applications:
Utility-Scale Solar Farms
Commercial & Industrial Rooftop Installations
Agricultural and Off-Grid Systems (with Battery Storage)
This panel is an excellent choice for those looking for high-efficiency, long-lasting solar modules with advanced technology for better energy yield. Would you like more details on pricing or installation?
