"!!! COMES with FREE 5v 4a Power Supply !!!

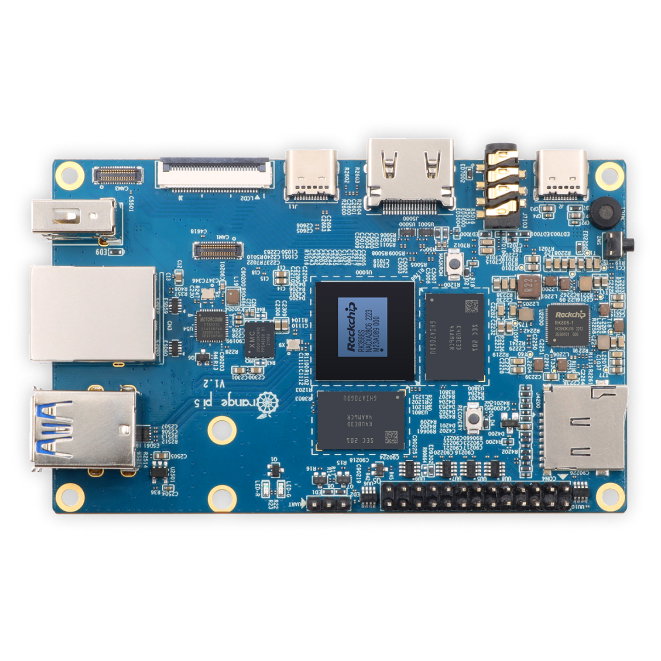

Orange Pi 5 uses Rockchip RK3588S new generation 8-core 64-bit processor 4GB RAM, quad-core A76+quad-core A55, with 8nm process design, up to 2.4GHz main frequency, integrated ARM Mali-G610 GPU, embedded high-performance 3D/2D image acceleration module, built-in NPU with 6Tops computing power, with 4GB/8GB/16GB/32GB (LPDDR4/4x), and up to 8K display processing capability.
Orange Pi 5 provides abundant interfaces, including HDMI output, GPIO interface, M.2 PCIe2.0, Type-C, Gigabit LAN port, 2USB2.0, 1USB3.0, etc.; It can be widely used in tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.
Orange Pi 5 supports Orange Pi OS（Droid）, the official operating system developed by Orange Pi, as well as Android12 and Debian11.
Wide range of application scenarios
It can be widely applied to tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.

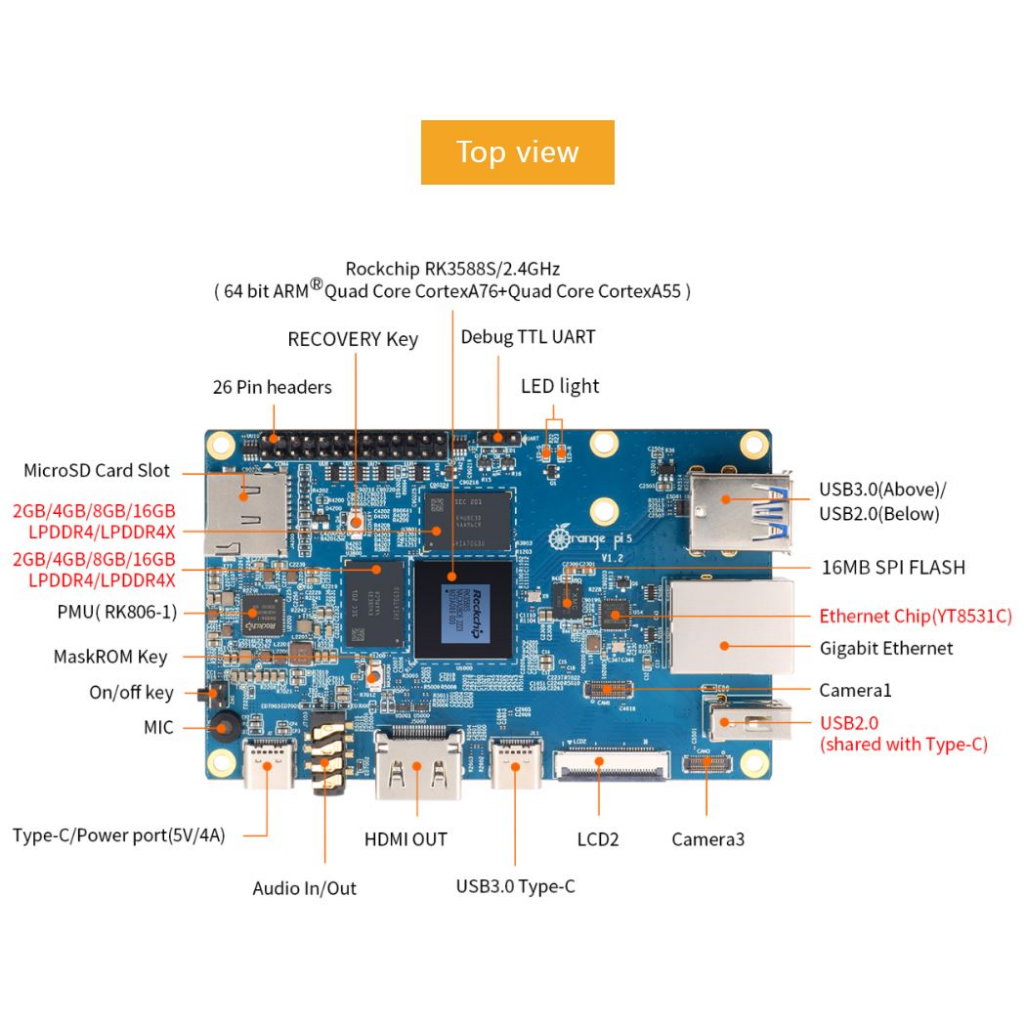

Hardware Specification
SoC Rockchip RK3588S (8nm LP process)
CPU • 8-core 64-bit processor
• Big.Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.
GPU • Arm Mali-G610 MP4 “Odin” GPU
• Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
• 3D graphics engine and 2D graphics engine
NPU Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation
PMU RK806-1
RAM 4GB/8GB/16GB /32GB（LPDDR4/4x）
Memory • QSPI Nor FLASH 16MB
• MicroSD (TF) Card Slot
• M.2 M-KEY Socket
USB USB3.0 × 1
USB2.0 × 2
Type-C (USB3.1) ×1
Video Output • HDMI2.1, up to 8K @60Hz
• DP1.4 (DisplayPort), DP1.4 and USB3.1 ports are multiplexed, and the port is shared with Type-C
• 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz
Camera • MIPI CSI 4Lane
• 2 * MIPI D-PHY RX 4Lane

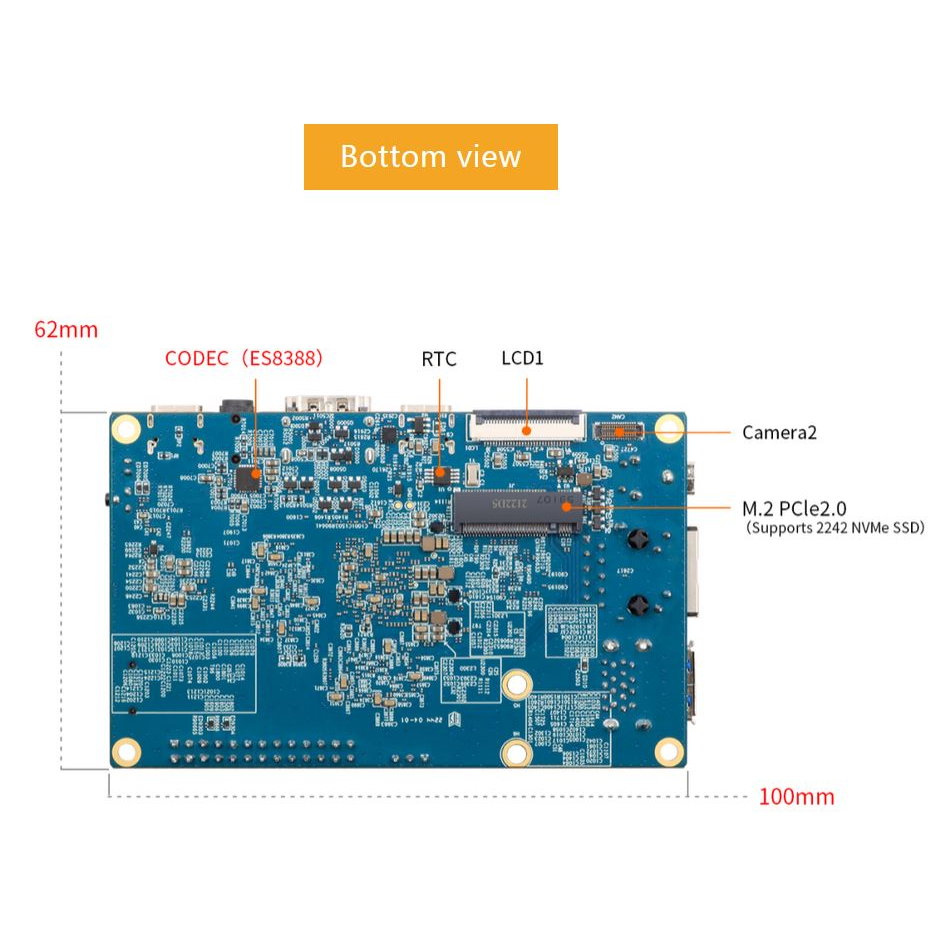

Audio CODEC: ES8388
• 3.5mm headphone jack audio input/output
• Input: Onboard MIC
• HDMI 2.1 eARC
Ethernet 10/100/1000Mbps Ethernet

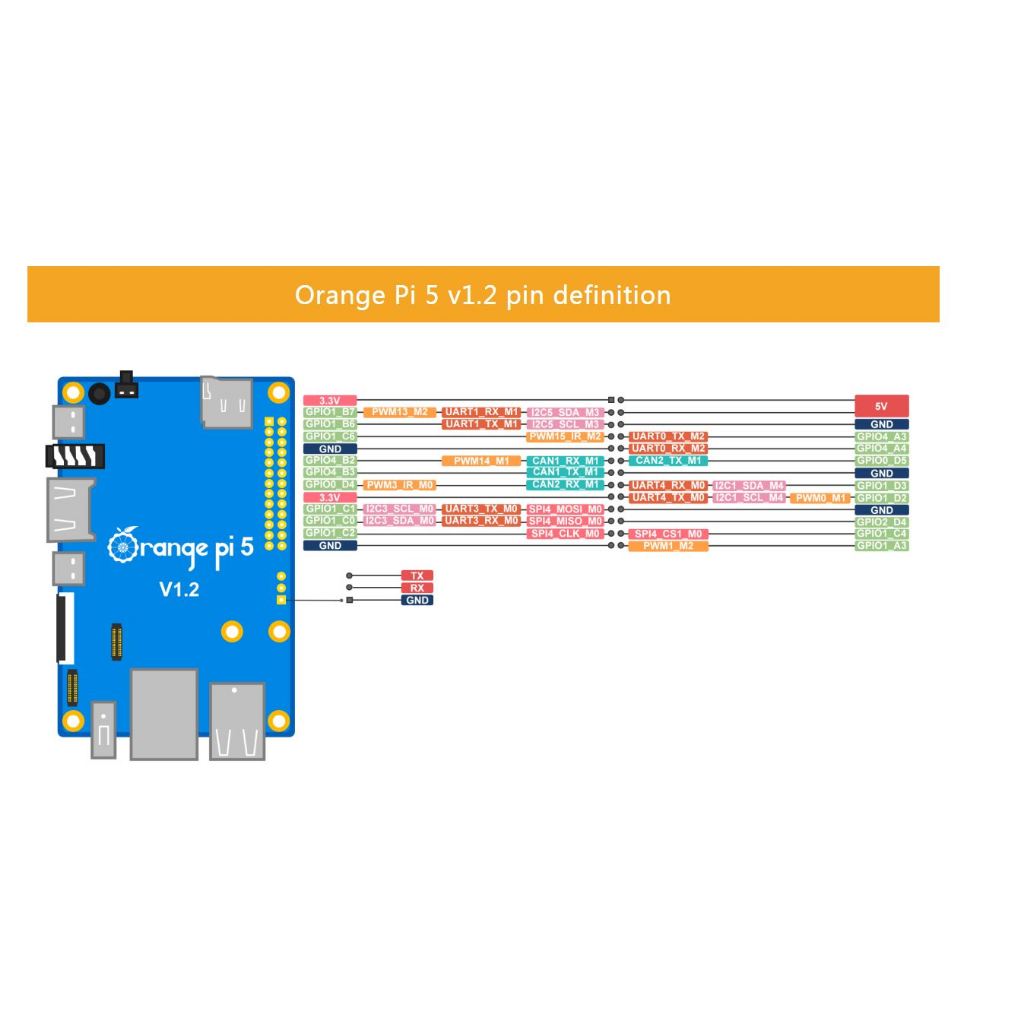

Expansion Port For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces.
M.2 M-KEY Socket Expansion Slot Support PCIe NVMe SSD
Support custom PCIe Wi-Fi6+BT5.0 module
Button 1×MaskROM key
1×Recovery key
1×On/Off key
Power Source Support Type-C power supply, 5V @ 4A
LED Power indicator: red
Status indicator: green
Debugging 3 Pin debug serial port (UART)
Supported OS Orangepi OS（Droid）、Orangepi OS（Arch）、Ubuntu、Debian、Android12
