"2023 V5.1 DENZ Custom board for PisoWifi Vendo 2023 V8.0
with POWER ON DELAY
Compatible for ADO / LPB / EASYWIFI / PISOFI / EZWIFI / iWiFi
So easy to use and install, just put on top of rpi 3, rpi 3b+, rpi 4, opi one and opi pc
All power requirements already in one board (rpi/opi, coinslot, fan and led indicator)
Accept coins only once the insert coin button is pressed

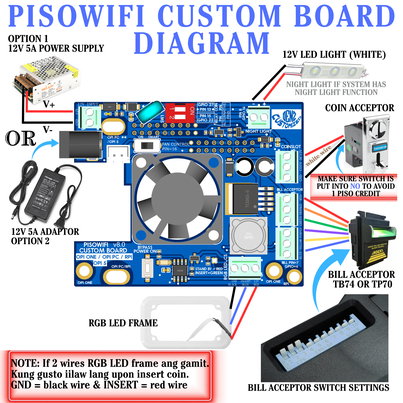

No need for schematic or diagram as the board is properly labeled
No need to cut coil

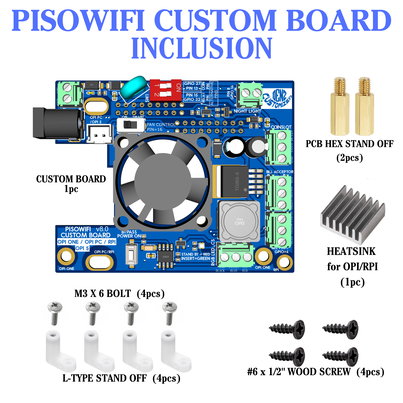

What to expect in the package:
Custom board for Pisowifi 2023 V6.2
Custom wires and connectors for COINSLOT
Jst connector with wire for 12V fan
Plastic standoff with bolt and nut
4X Motherboard spacer with screw
1 x heatsink
PIN SETTINGS / CONFIGURATION
ADO:
GPIO Pin for Coin Acceptor (white wire)= 3
Coin Acceptor Relay GPIO Pin = 5
Coin Acceptor Relay Active = HIGH
Reading Type: LOOP
LPB:
Coin Pin = 3
Relay Pin = 5
Relay Module = Active HIGH
PISOFI:
Coinslot Enable = 3
Coinslot Signal = 2
Relay = active HIGH
iWiFi:
Coinslot coinwire pin = 3
Coinslot JST pin = 5
Relay = active High
WiFi ng Bayan
COINSLOT GPIO = 3
RELAY GPIO COIN = 5
COIN RELAY HIGH AND LOW = HIGH
EZ WIFI
COIN PIN = 3
DENZ CBs are tested before shipment
#customboard
#pisowifi
#cb
