Features

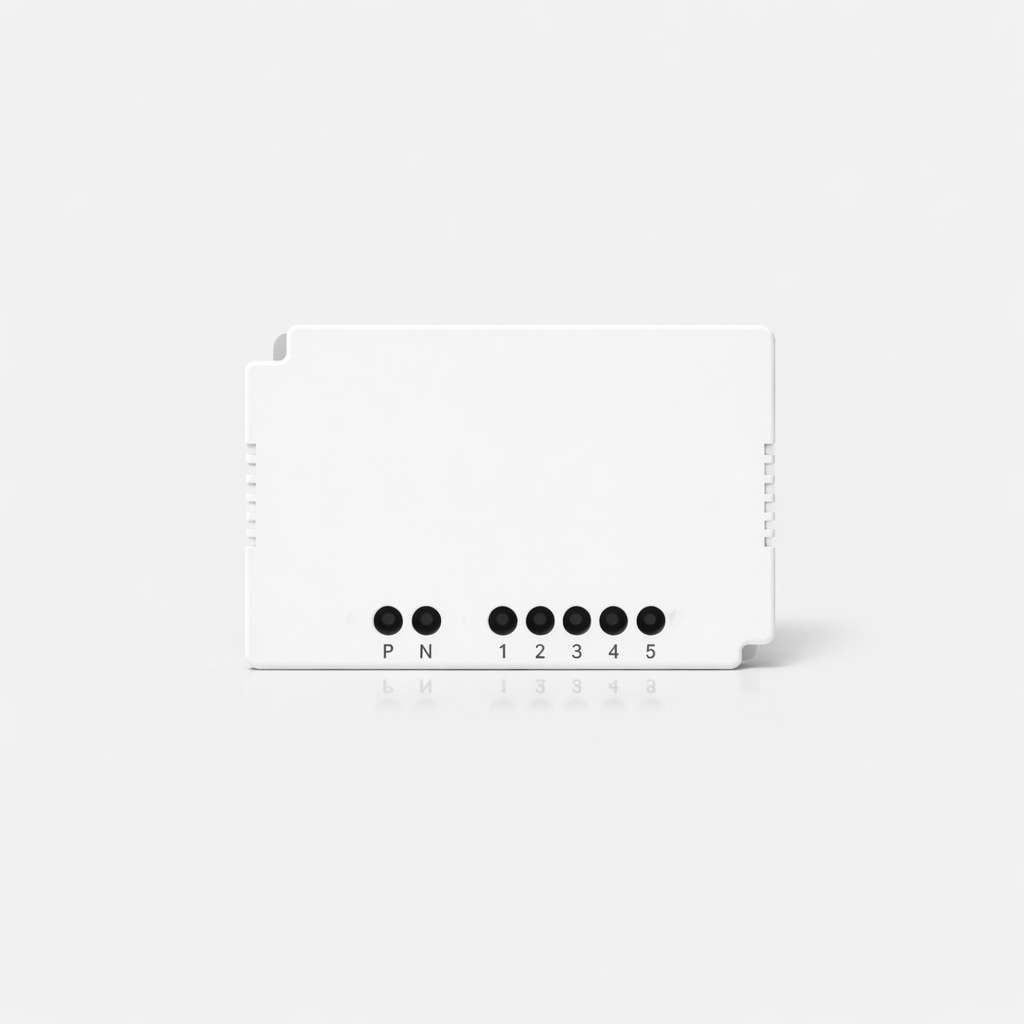

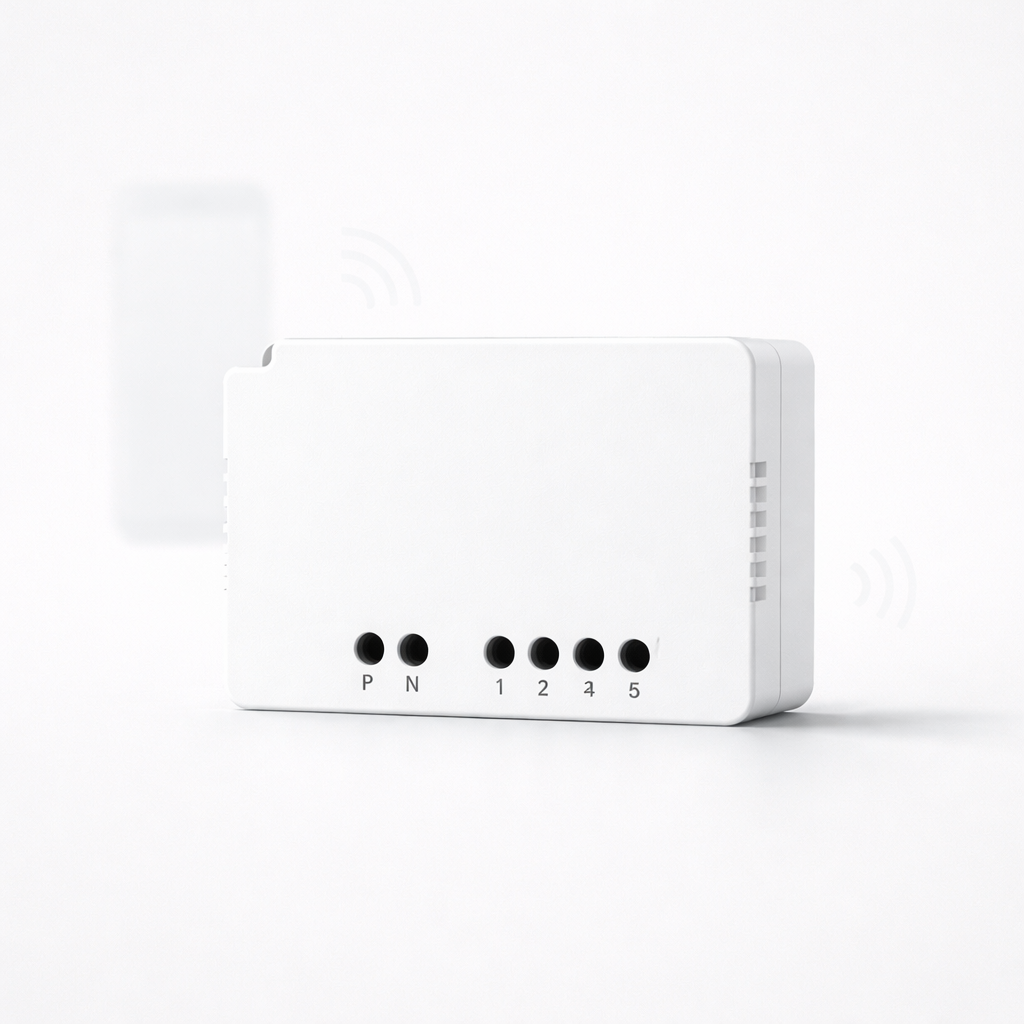

• NEXA retrofit switch rated for 10A, compact smart electrical retrofit.
• Upgrade existing switches to smart controls without changing your wiring.
• Remotely control connected loads through the mobile app anytime, anywhere.
• Create schedules, timers, and scenes using the compatible smart app.
• Works with Alexa, Google, and Siri for voice control integration.
Technical Specifications
• Power Input: 240 V AC, 50/60 Hz.
• Maximum Supportive Load: 7.5 kW (32 A).
• Load Type:
• Incandescent lamp / Resistive load per channel: 800 W.
• LED load per channel: 120 W or 6 Nos (whichever is higher).
• Inductive load: 400 W.
• Typical Standby Power: <0.8 W.
• Surge Protection: 2.5 kV (Tested up to 4 kV).
• Dimensions: Height: 40 mm; Width: 25 mm; Length: 77 mm
